CONNECTION DIAGRAMS SENTRY
30 Back to table of contents
SSR10MSENTRY
CH1
MODE
CH2
M
A

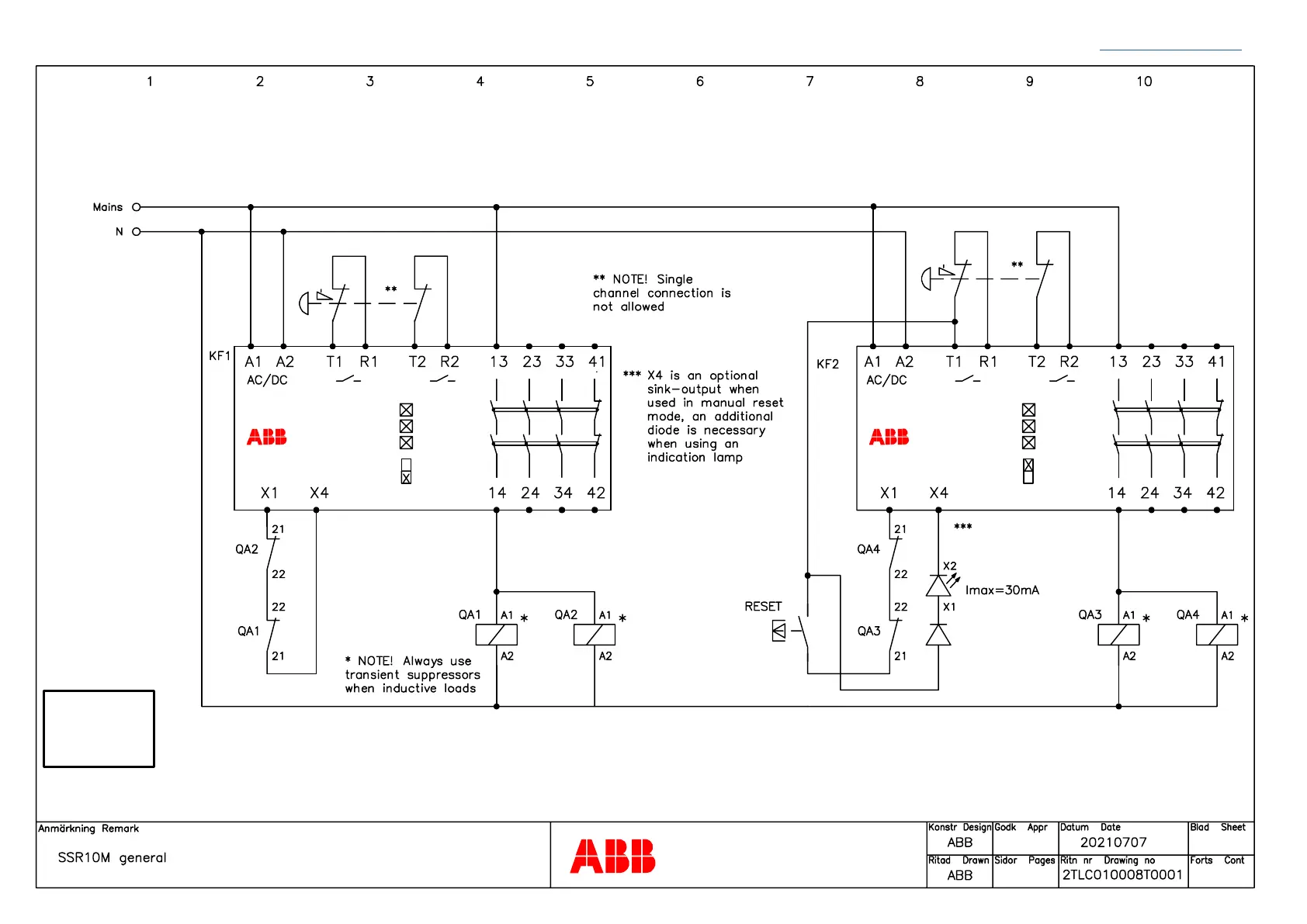

A) Two signals from T1/T2 with Auto reset
SSR10MSENTRY
CH1
MODE
CH2
M
A
B) Two signals from T1/T2 with Manual reset
CH1 CH2 CH1 CH2
Jokab SafetyJokab Safety
PLe
According to
EN ISO 13849-1
Note: The stated PL is only valid if all relevant requirements according to EN ISO 13849-1/-2 are met. It is the responsibility of the
machine builder to make a risk assessment and make sure that the appropriate functional safety levels are achieved.
