ABB BSR10 - Page 31

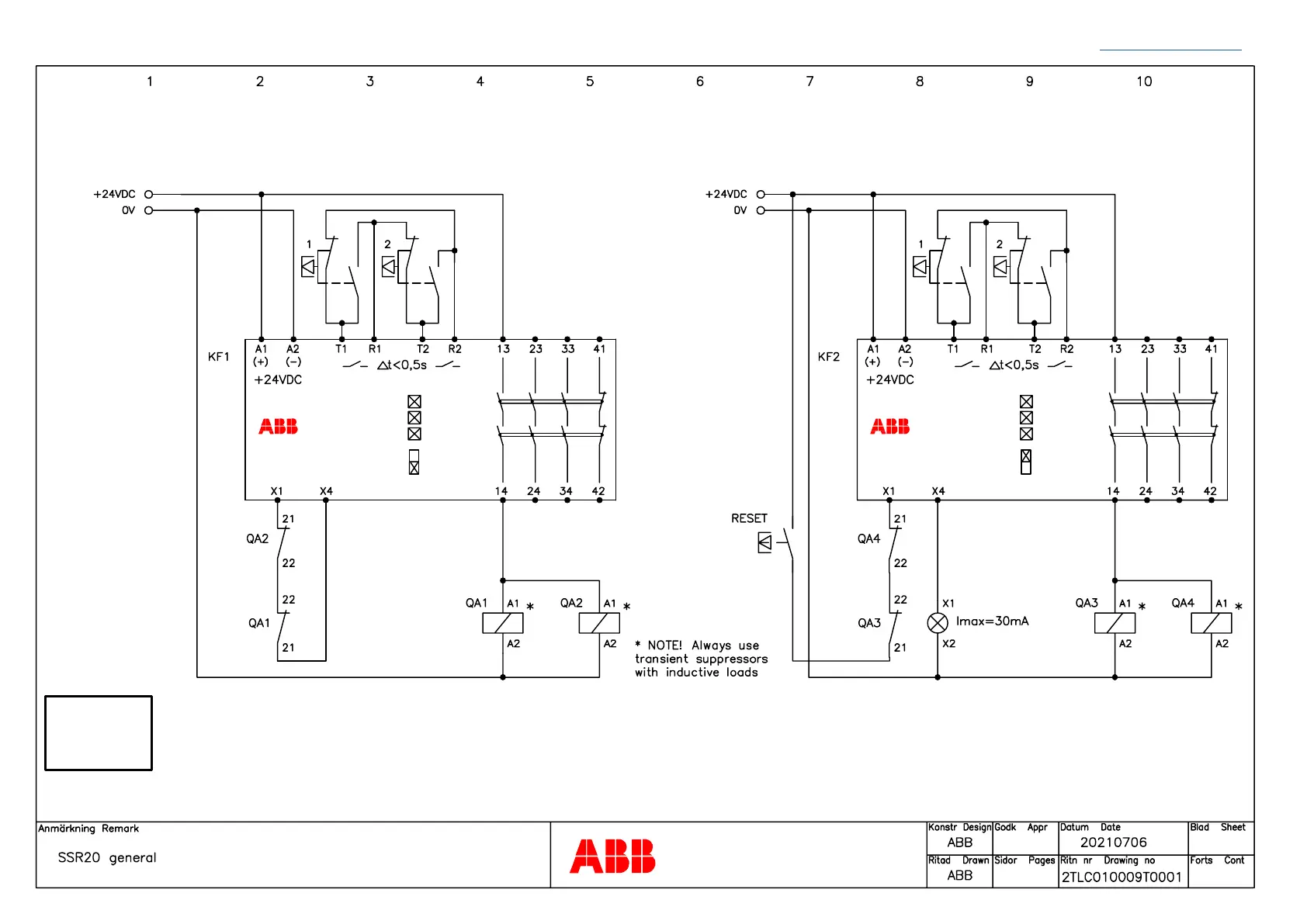

CONNECTION DIAGRAMS SENTRY
31 Back to table of contents
Jokab Safety
SSR20SENTRY
CH1
MODE
CH2
M
A
CH1 CH2
Jokab Safety
SSR20SENTRY
CH1
MODE
CH2
M
A
CH1 CH2
A) Two-hand device / Auto reset A) Two-hand device / Manual reset
PLe
According to
EN ISO 13849-1
Note: The stated PL is only valid if all relevant requirements according to EN ISO 13849-1/-2 are met. It is the responsibility of the
machine builder to make a risk assessment and make sure that the appropriate functional safety levels are achieved.
Safety Products
