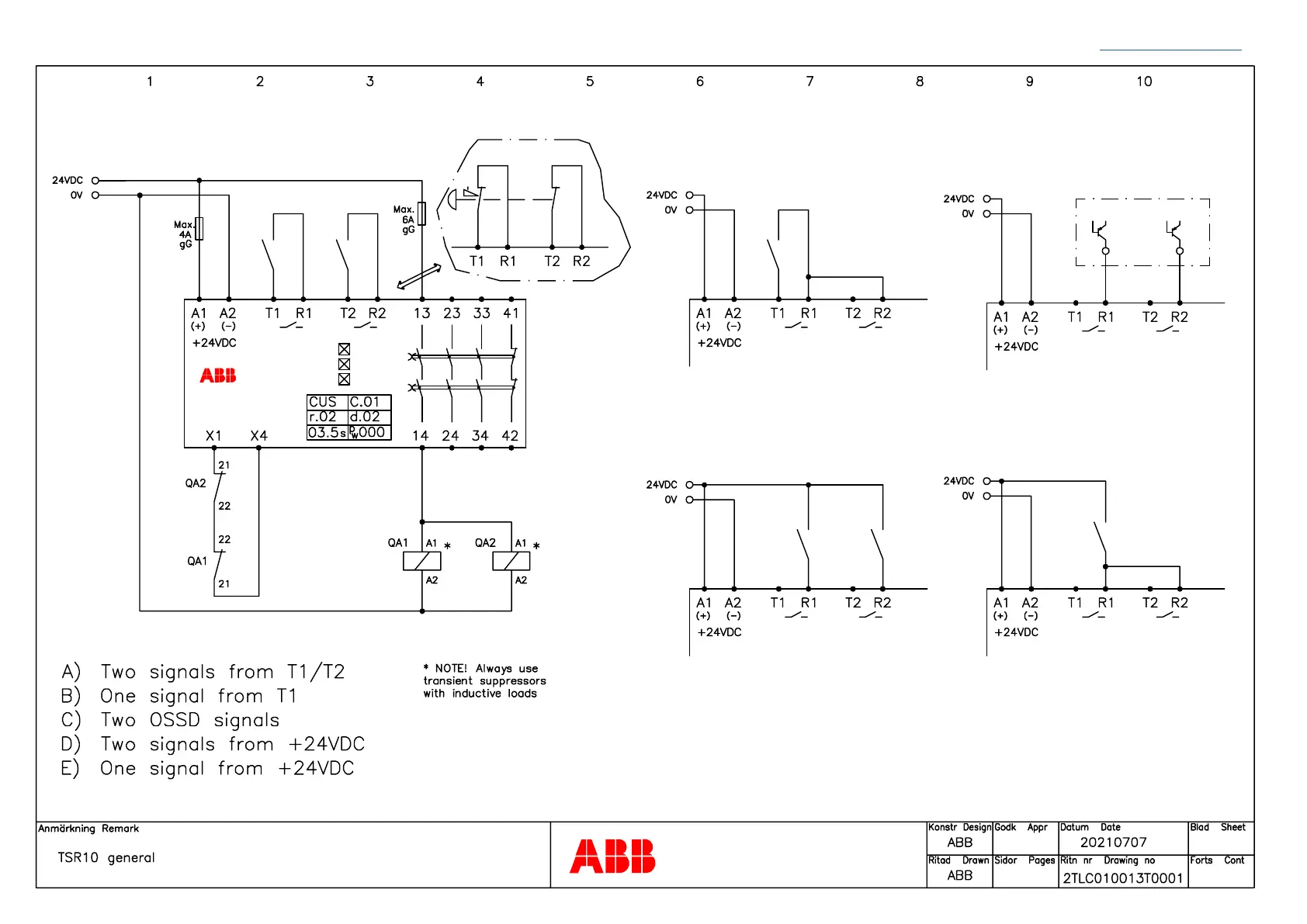

CONNECTION DIAGRAMS SENTRY
40 Back to table of contents
CH1
MODE
CH2
Jokab Safety
TSR10SENTRY
CH1 CH2
OSSD 1 OSSD 2
A)
B) C)
D) E)
CH1 CH2
CH1 CH2
CH1 CH2 CH1 CH2
Note: It is the responsibility of the machine builder to make a risk assessment and make sure that the appropriate functional safety levels are achieved.
