ABB BSR10 - Page 48

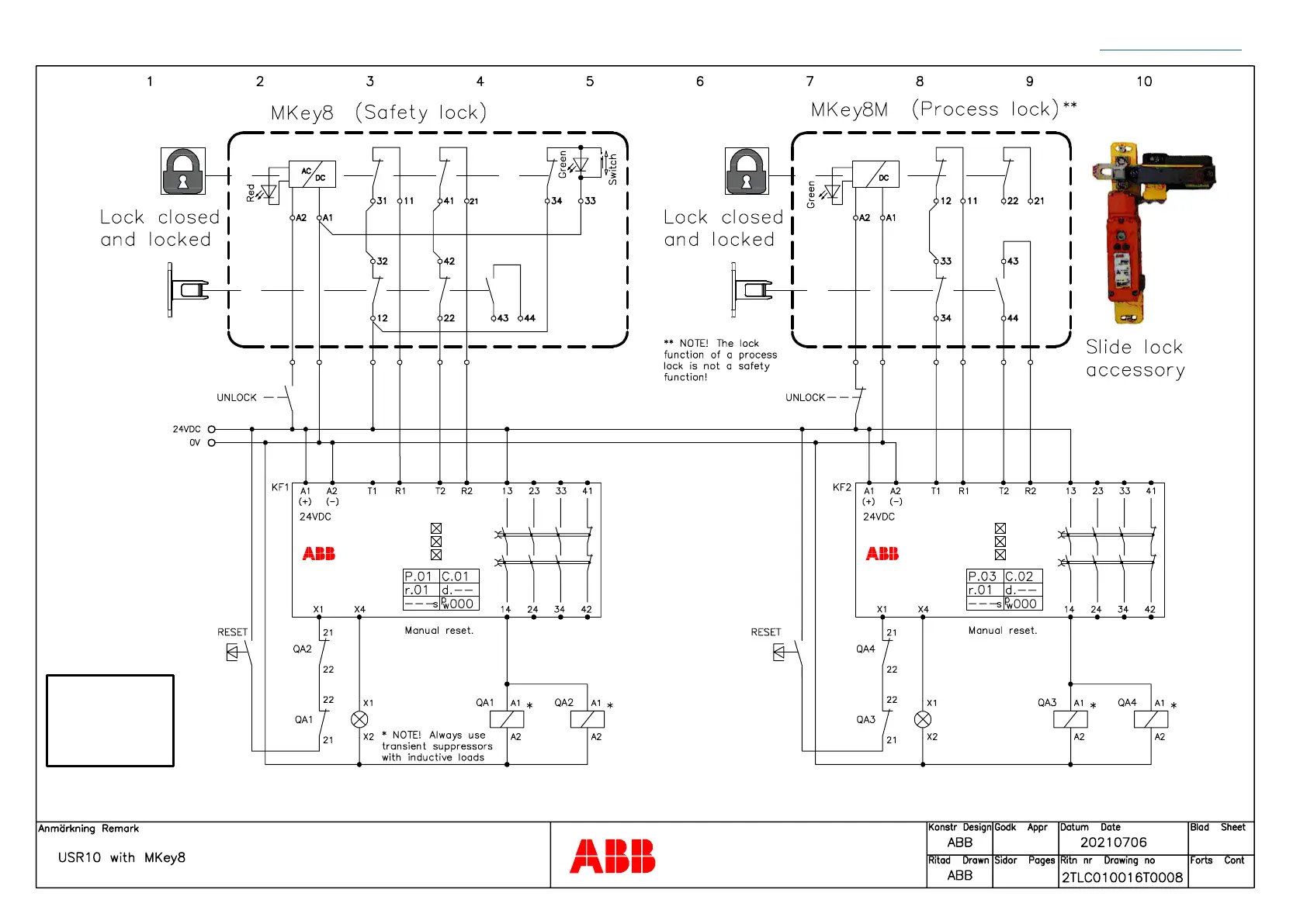

CONNECTION DIAGRAMS SENTRY
48 Back to table of contents
CH1 CH2
CH1
MODE
CH2
Jokab Safety
USR10SENTRY
CH1 CH2
CH1
MODE
CH2
Jokab Safety
USR10SENTRY
PLc (without slide lock)
PLd (with slide lock)
According to
EN ISO 13849-1/2
Note: The stated PL is only valid if all relevant requirements according to EN ISO 13849-1/-2 are met. It is the responsibility of the
machine builder to make a risk assessment and make sure that the appropriate functional safety levels are achieved.
