2.1 Meter Parts
Illustration

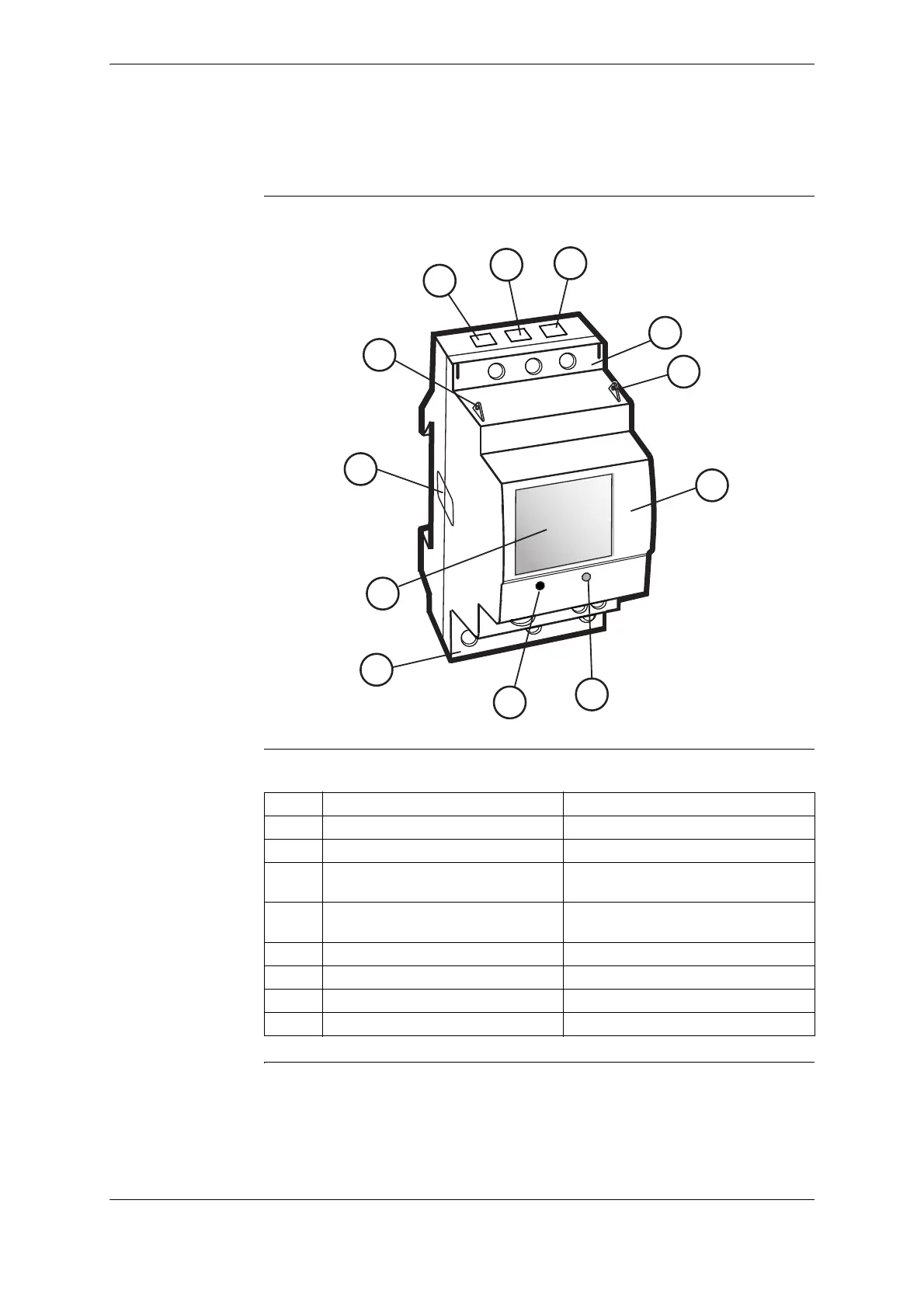

The parts of the meter are shown in the illustration below:
Parts description
The following table describes the parts of the meter:
20
21
4
9
2
8
1
6
5
3
7
6
8
Item Description Comments
1 DIN-lock To fasten the meter on the DIN-rail.
2 Output Terminal connections for the output.
3 Push button For programming and reading metering
data.
4 LED Flashes in proportion to the energy con-
sumed.
5 Display LCD for meter reading
6 Sealing points Seal thread can be used to seal the
cover.
7 Sealable terminal cover Sealable cover to protect the terminal
blocks.
8 Terminal blocks Terminal for all voltages and currents.
9 Product label Contains information about the meter
type.
