2.2 Meter Type
C11 meter
The C11 is a compact meter for 1-phase metering. The meter is direct connected
for currents up to max. 40 A.
Product label

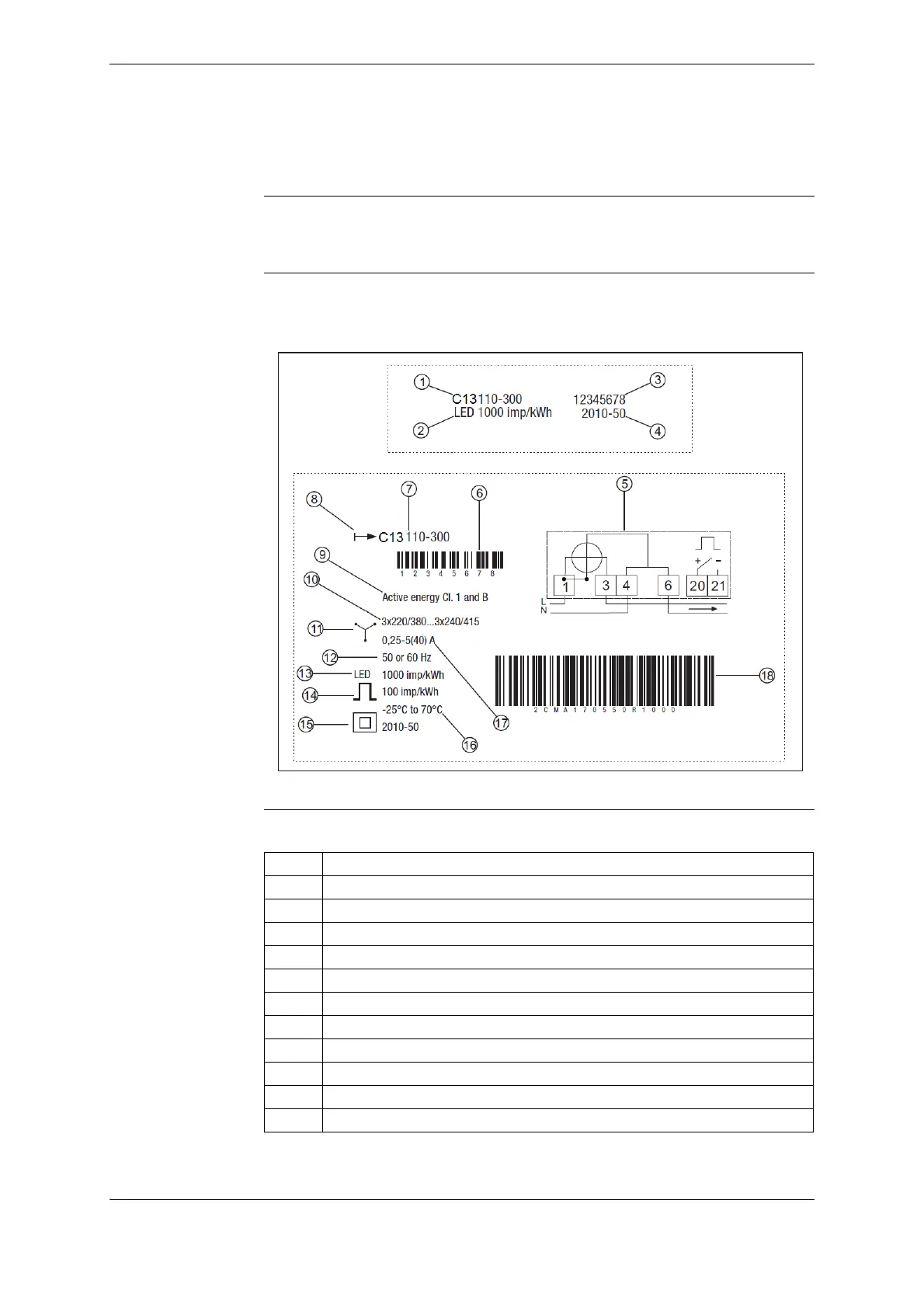

The meter type information that is reflected on the product label is shown in the
picture below:
Label information
The information on the type label is explained in the table below:
LED
1
3
20
21
L
N
64
1000 imp/kWh
0,25-5(40) A
230 V
50 or 60 Hz
Active energy Cl. 1 and B
-25°C to 70°C
C11 110-300
100 imp/kWh
2010-50
C11 110-300
LED 1000 imp/kWh
2010-50
12345678
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
15
18
Item Description
1 Type designation
2 LED pulse frequency
3 Serial number
4 Manufacturing date (year and week)
5 Wiring diagram
6 Bar code with serial number
7 Type designation
8 Energy import
9 Accuracy (active energy)
10 Nominal voltage
11 One measuring unit
