ABB C11

Installation
C11 10 2CMC486001M0201
User Manual Revision: A
3.1 Mounting the Meter
General
This section describes different ways to mount the C11 meter. For some methods
of mounting, additional accessories are needed. For further information about ac-
cessories, refer to Main Catalog (2CMC481001C0201).
DIN-rail mounted
The C11 meters are intended to be mounted on a standard (DIN 50022) DIN-rail.
If this method of mounting is used no extra accessories are needed and the meter
is fastened on the rail by snapping the DIN-rail lock onto the rail.
Wall mounted
The recommended way to mount the meter on a wall is to mount a separate DIN-
rail on the wall and then mount the meter on the rail.
Standard DIN-rail

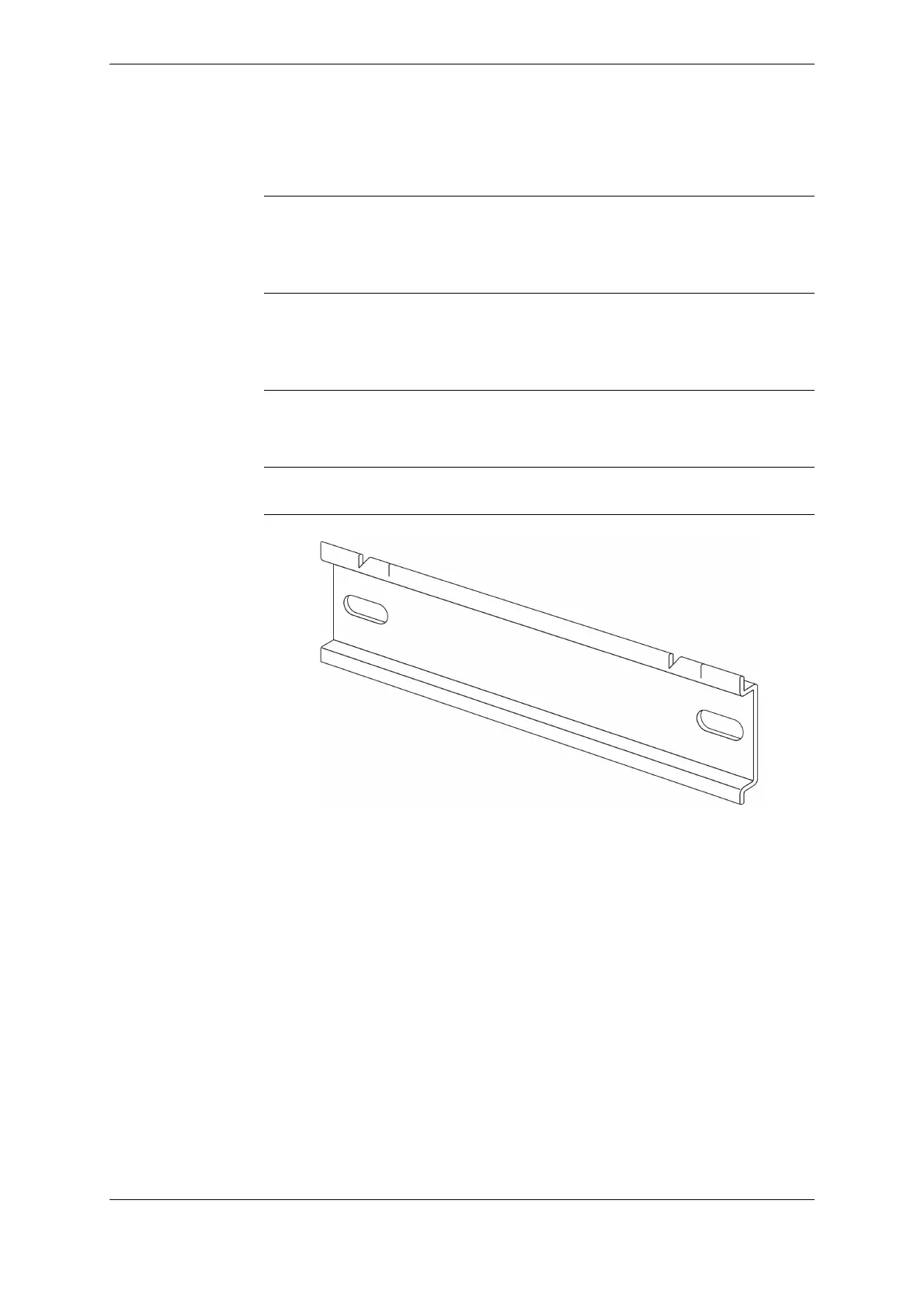

The following picture shows a standard DIN-rail.
