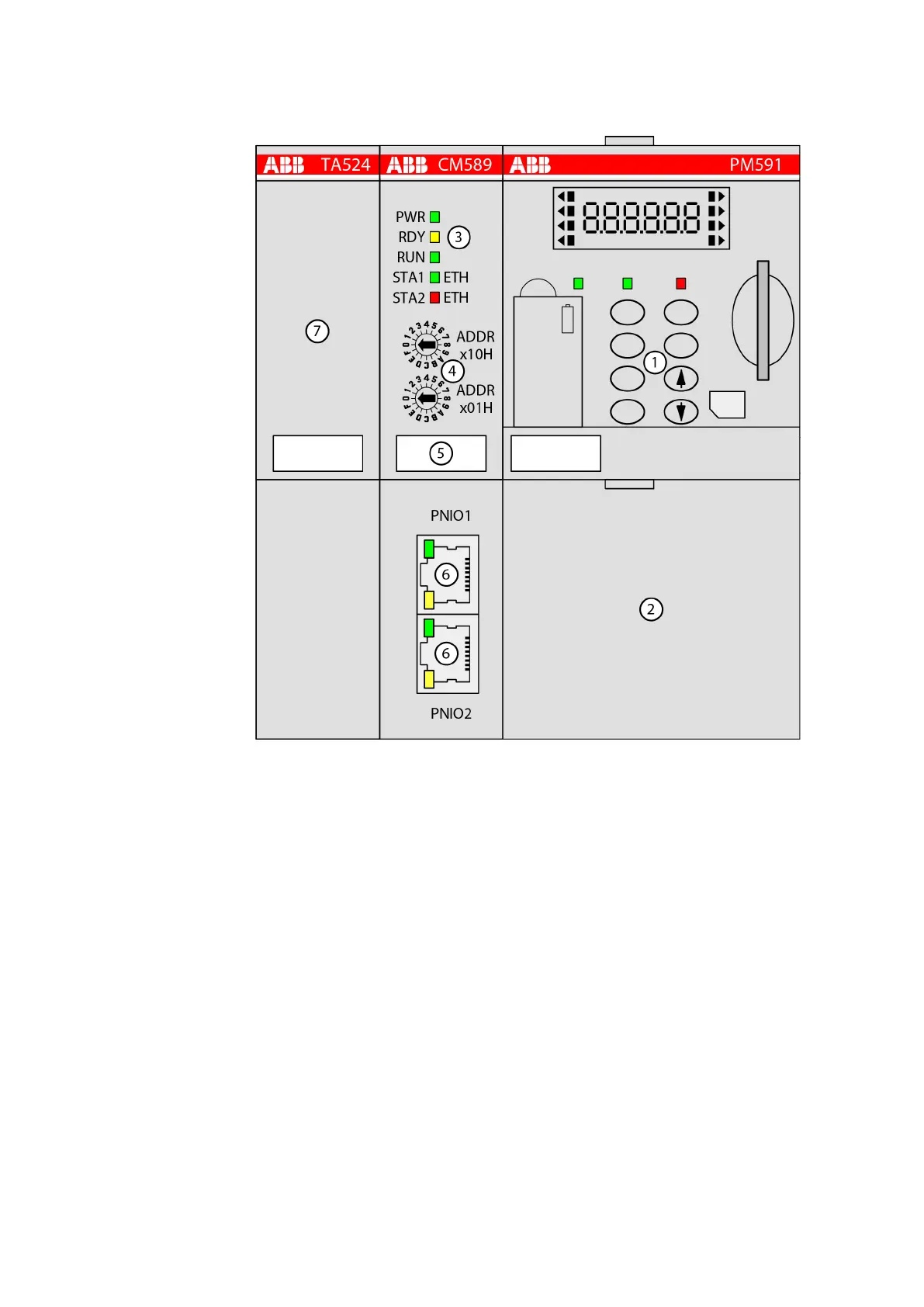

14.4 Connection

1 CPU

2 The connection part may be different on various terminal base types. See installation

instructions of the specific terminal base suitable for this CPU for connection specifications.

3 5 LEDs for state display

4 2 rotary switches for setting the I/O device identifier

5 Label

6 Ethernet network interfaces

7 TA524 Dummy Communication Module

CM589-PNIO(-4)

Connection

2019/11/15 3ADR024117M02xx, 11, en_US 115
