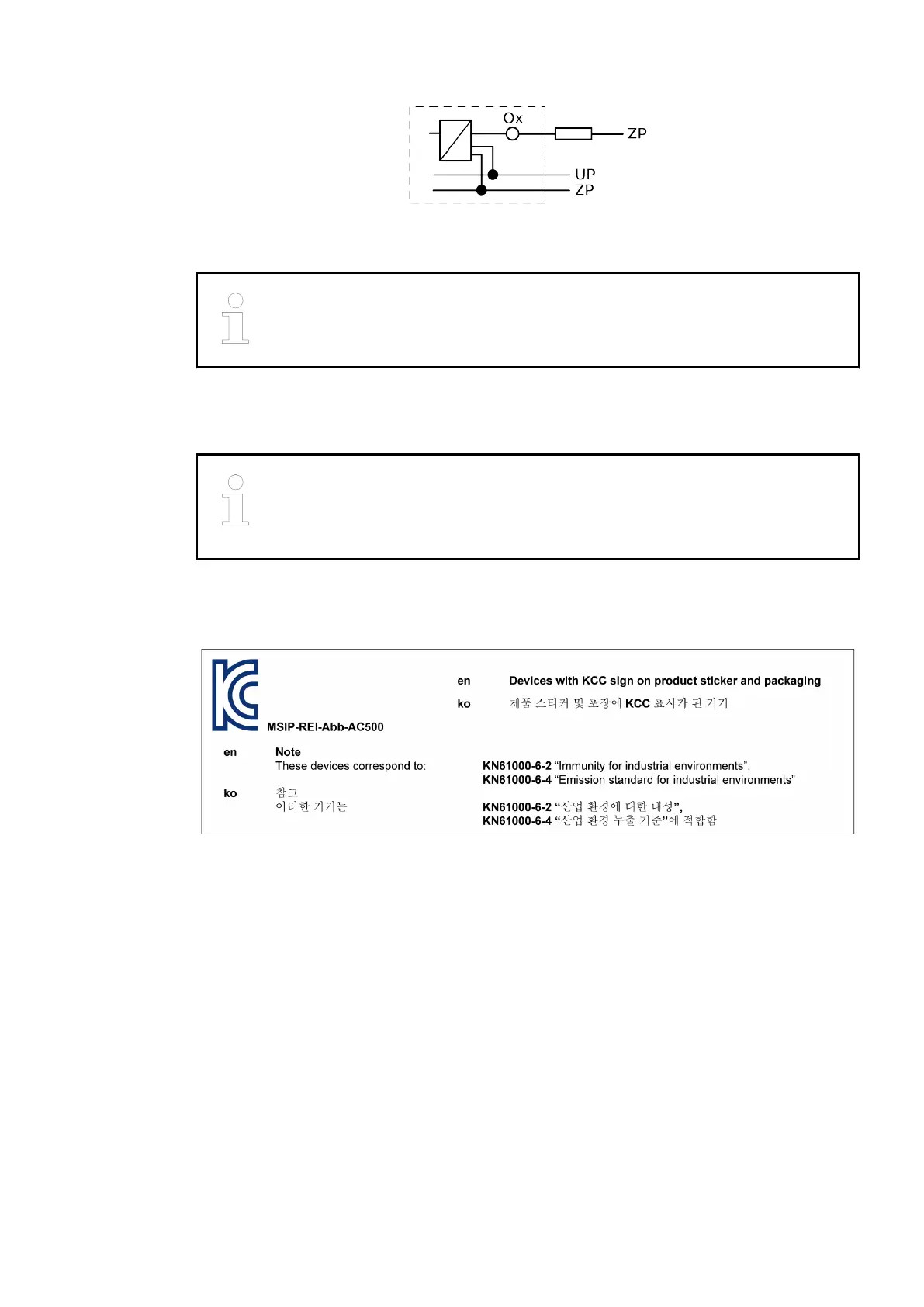

Fig. 38: Example for connection output Ox

AC500-S Safety User Manual

For a detailed description of the electrical connection of the module, please

refer to the "AC500-S Safety User Manual".

26.5 Cleaning

Cleaning instruction

Do not use cleaning agent for cleaning the device.

Use a damp cloth instead.

26.6 Certification

DX581-S

Certification

2019/11/153ADR024117M02xx, 11, en_US208
