15.4.1 Process Supply Voltage
CAUTION!
The process supply voltage must be included in the earthing concept (e. g.
earthing of the minus pole).
15.4.2 Inputs/Outputs

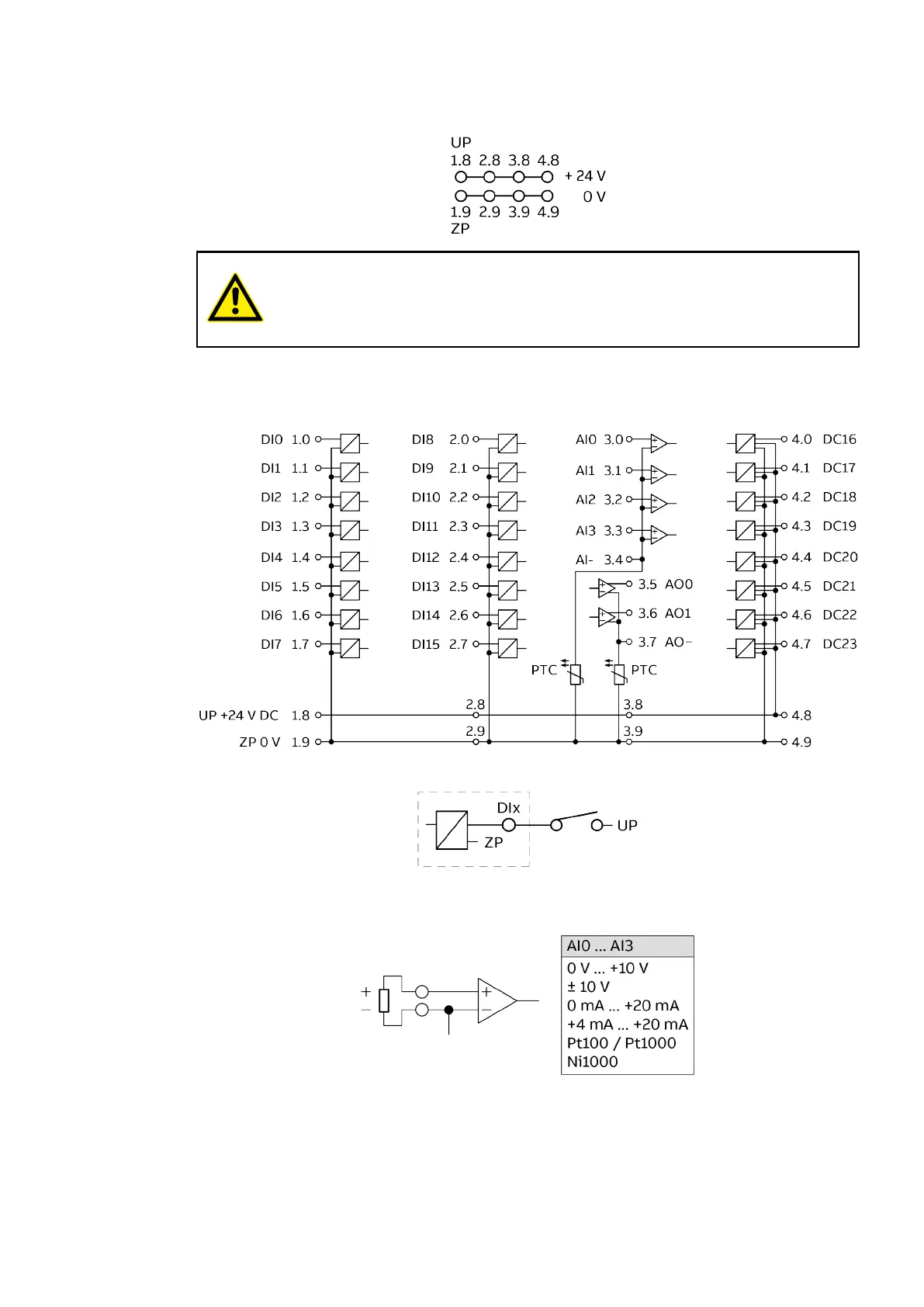

Fig. 25: Example for connection input DIx
Fig. 26: Example for connection input AIx
Examples
DA501
Connection > Inputs/Outputs
2019/11/153ADR024117M02xx, 11, en_US124
