23.4 Connection

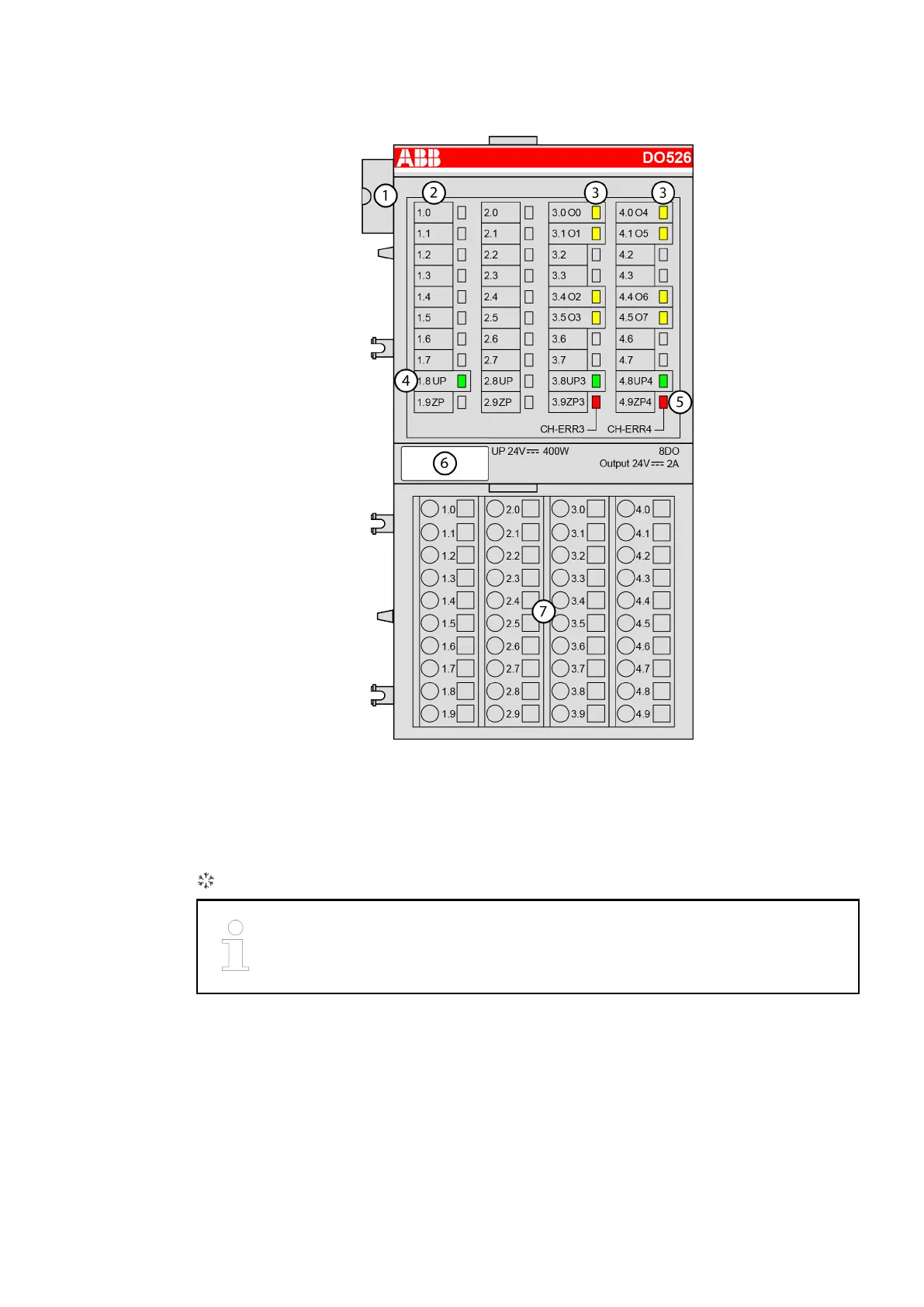

1 I/O bus
2 Allocation between terminal number and signal name
3 8 yellow LEDs to display the signal states of the outputs O0 to O7
4 3 green LEDs to display the states of the process supply voltage UP, UP3 and UP4
5 2 red LEDs to display errors
6 Label
7 Terminal unit
Sign for XC version
All I/O channels (digital and analog) are protected against reverse polarity,
reverse supply and continuous overvoltage up to 30 VDC.
