5. Electrical connections
5.1 Connections to the power circuit
5.1.1 Shapes of the terminals

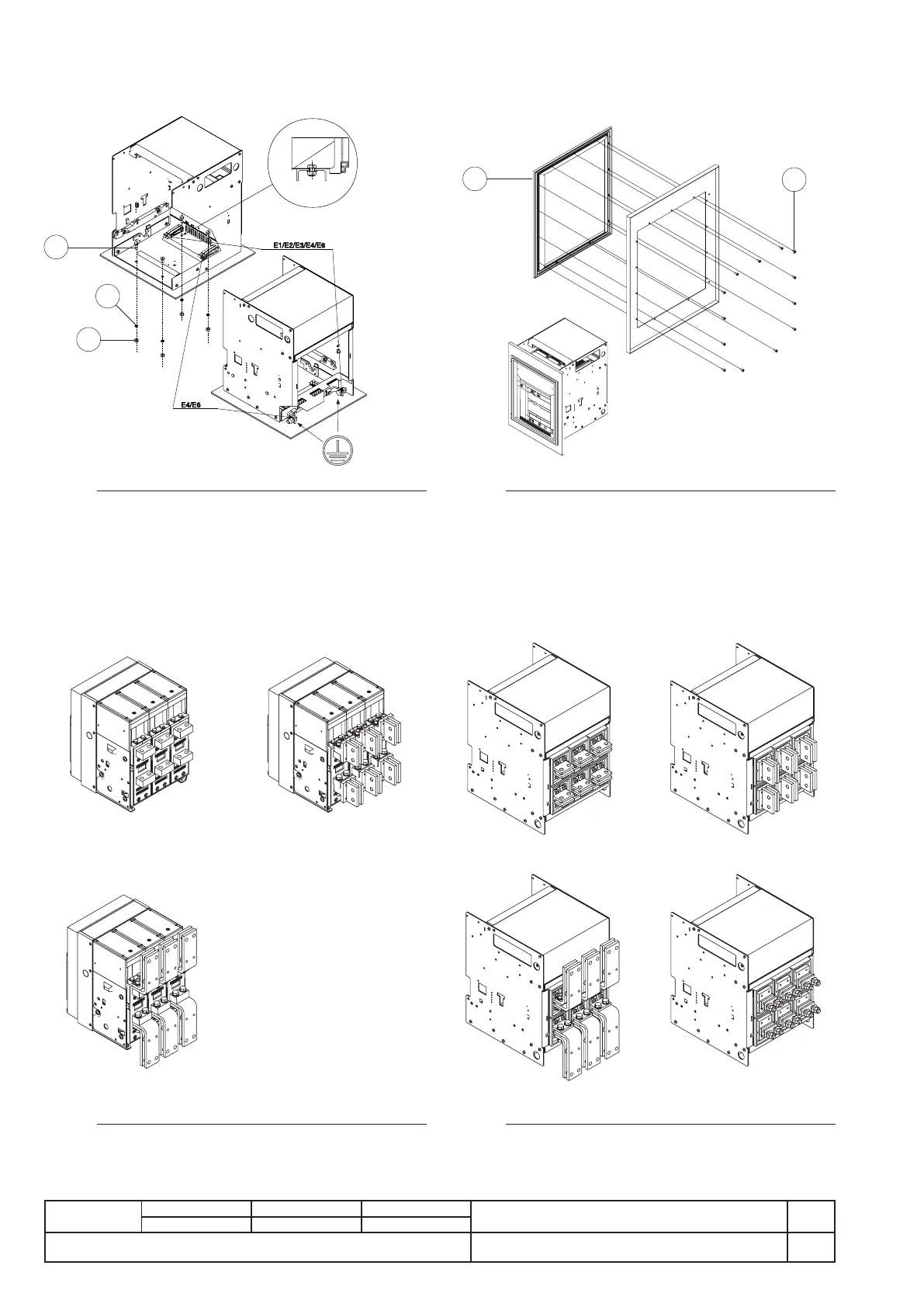

Fig. 14
Fixed part for withdrawable circuit-breaker
Fig. 15
Fig. 12
Notes
(*) For the E1-E2-E3 fixed parts,
there are four fixing points, whereas
there are six for E4-E6.
4.4 Installation of the flange on the compartment door (Fig. 13)
– Make the compartment door drillings specified in the "Overall dimensions" paragraph.
- Attach the flange (1) on the front of the compartment door, fixing it from the inside by means of the self-tapping screws (2).
Fig. 13
Fixed circuit-breaker
Note
The drawings are provided to show the type of terminal in graphic form. The exact shape of the terminals is given in the "Overall dimensions" chapter.
Different terminals can be installed between the top and bottom parts (inlet and outlet).
Horizontal rear terminals Vertical rear terminals
Front terminals Flat terminals
Horizontal rear terminals
Front terminals
Vertical rear terminals
