Design and function
OI/PME/LME/EAN823/EBN853/EBN861-EN 15
2.1.3 EBN861

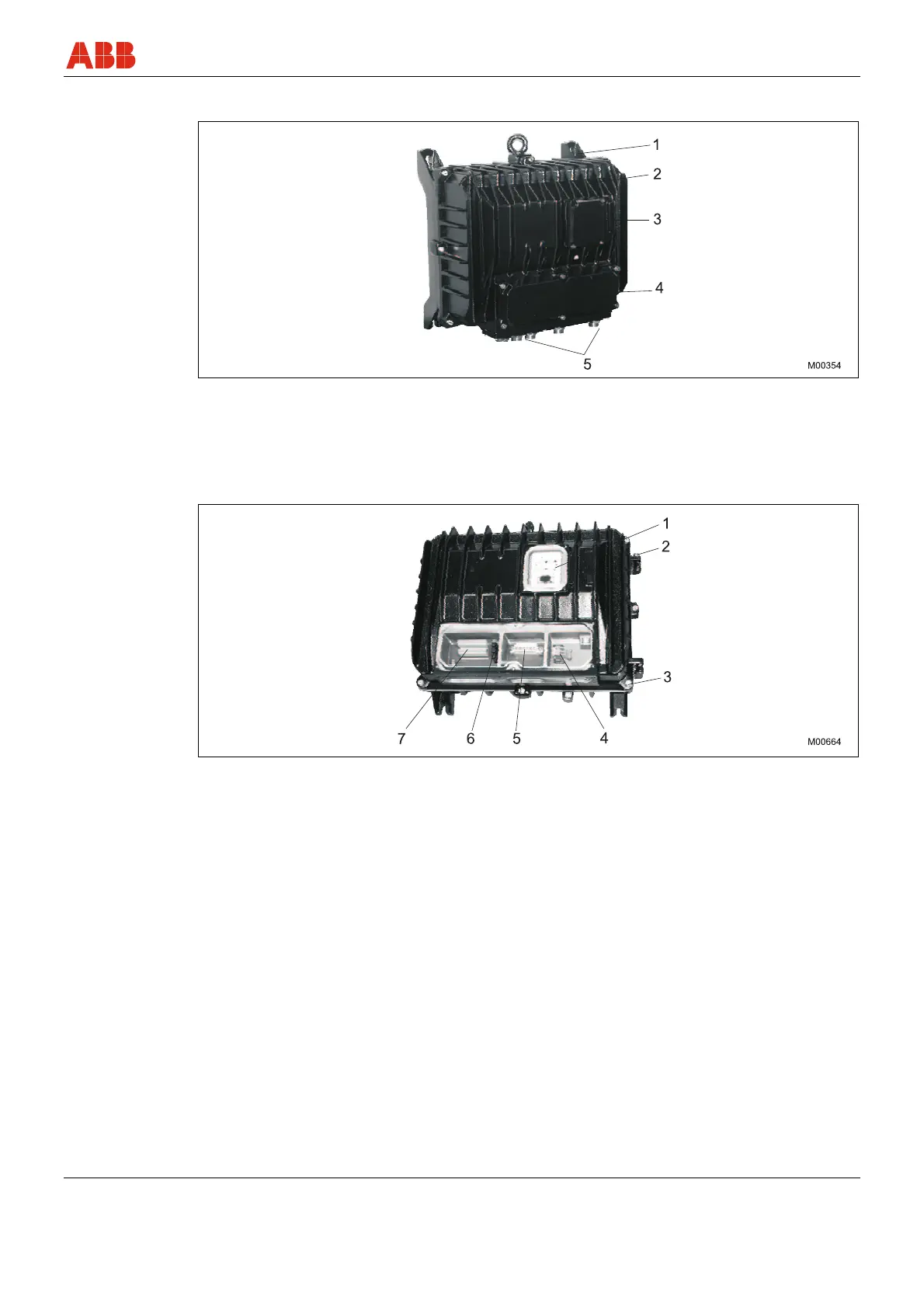

Fig. 8
1 Electronic unit, lower section
2 Electronic unit cover
3 Cover for commissioning and service
field (ISF)
4 Cover for connection space
5 Holes for cable glands
Fig. 9: Connection area
1 Commissioning and service field (ISF)
2 Hinge screws
3 Cover screws
4 Mains supply terminals
5 Motor terminals
6 Fuse for digital outputs DO 1,DO 2, DO 3
7 Signal terminals
