1.5.2 Name plates for the power electronic unit
The name plates for the power electronic unit are located on the lower section (EAN823,
EBN853 and EBN861, only) as well as on the cover. Since the modules are stand-alone units,
order numbers may vary.

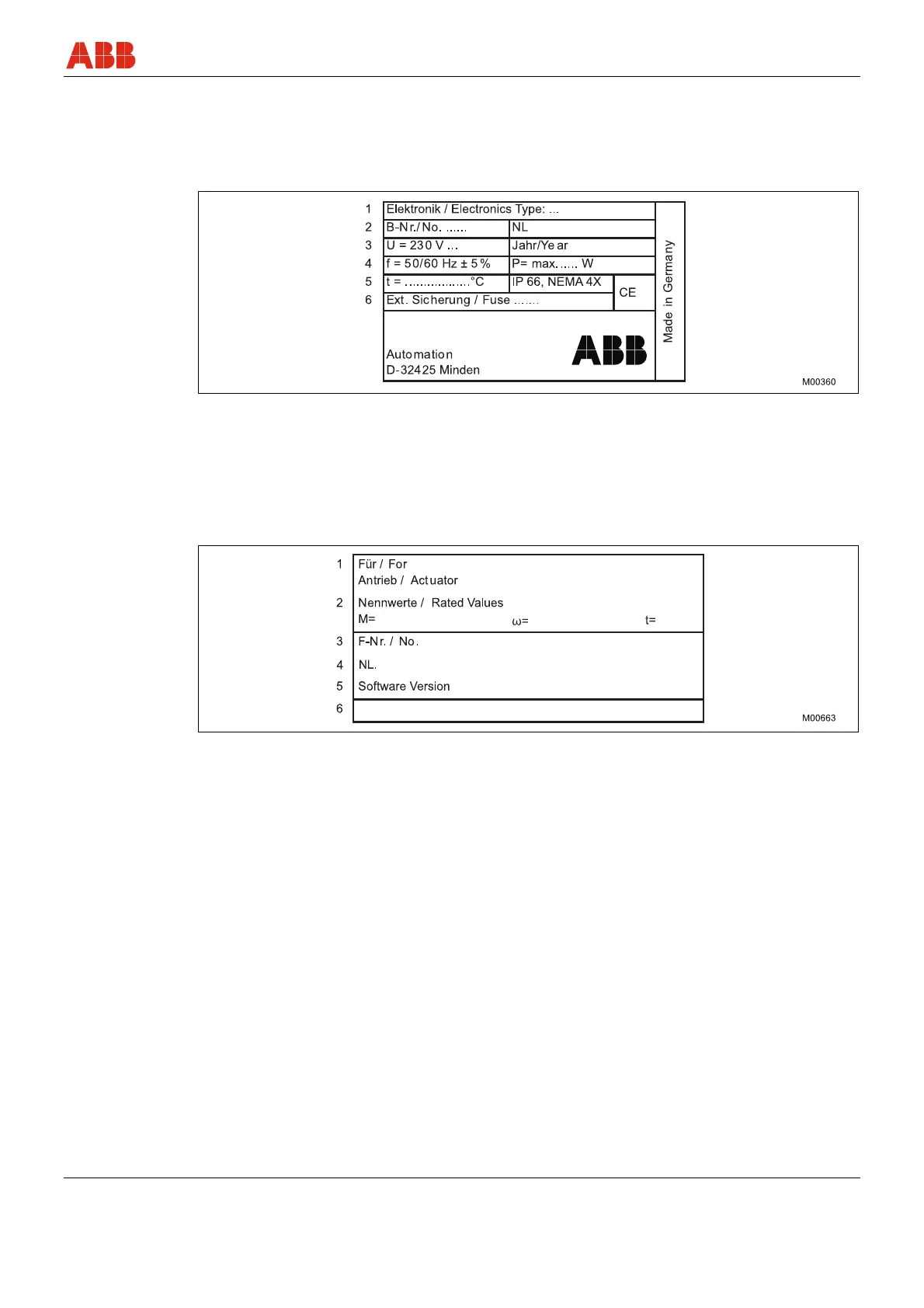

Fig. 1: Name plate of lower section of electronic unit, mains connection
1 Electronic unit type
2 Serial no. / NL no. (no. of non-list
version)
3 Permissible voltage range / year of
manufacture
4 Permissible line frequency / max. power
consumption
5 Permissible ambient temperature /
protection class / CE mark
6 Specifications for external fuse protection
Fig. 2: Software name plate on electronic unit cover
1 Associated actuator
2 Ratings for: Actuator torque / speed /
permissible ambient temperature
3 Serial number of electronic unit
4 NL no. (no. of non-list version)
5 Loaded software version
6 Blank for customer-specific entry
