ABB Emax 2 Instructional Sheet

(5)
1
8.5Nm(75 lb-in)
3B
RF Env1(S)-W 1600 U-HR -> E2.2 1600
2A
137
138
139
143
2
140
141
142
144
3B
8.5Nm(75 lb-in)
3B
RF Env1(S)-W 1600 U-HR -> E2.2 1600

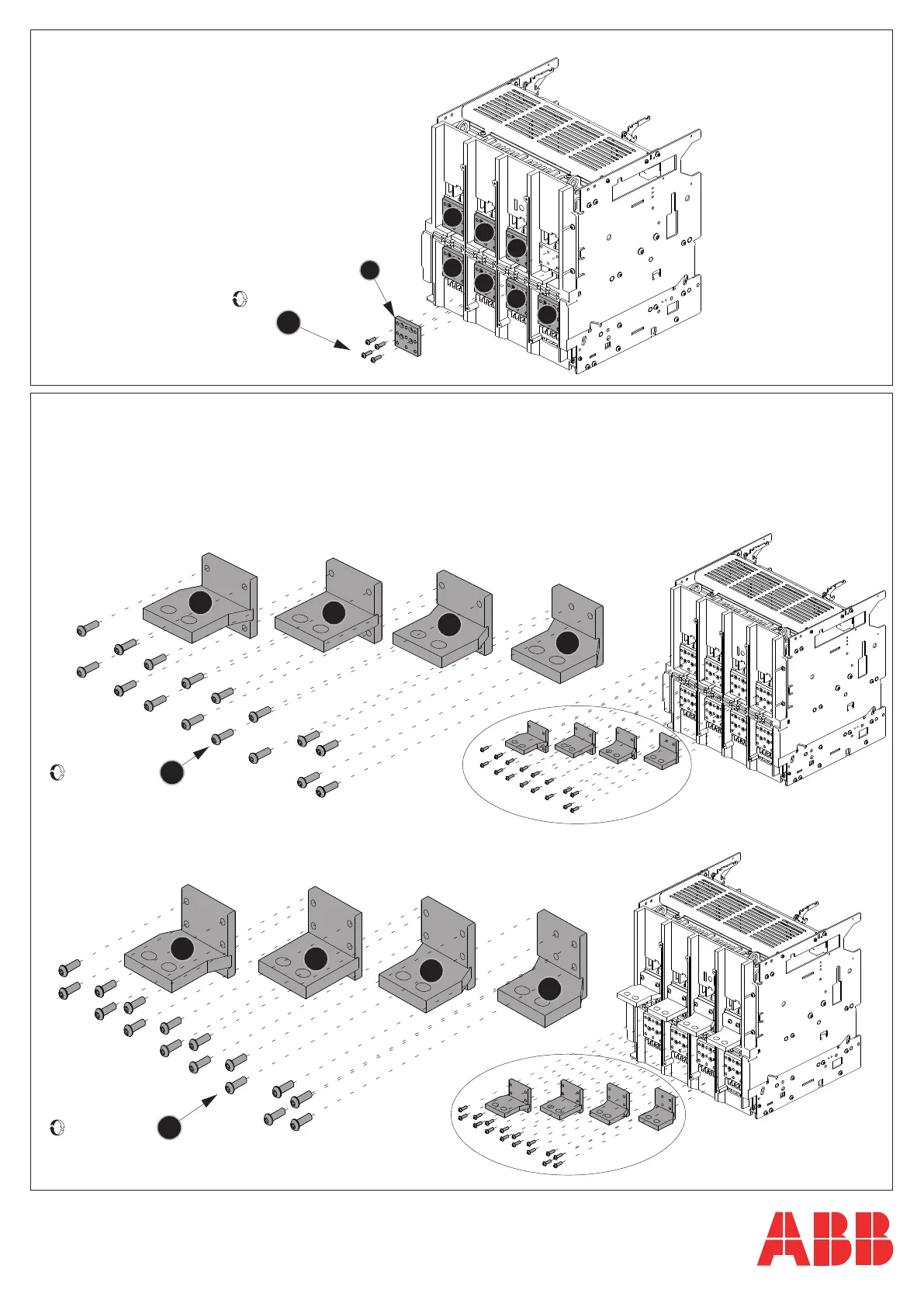

- Installare le piastre di adattamento sulla parte fissa
- Install the Adapter plates on the fixed part
- Installieren Sie die Adapterplatten am Festes Teil
- Installer les plaques d’adaptateur sur la partie fixe
- Instale las placas adaptadoras a la parte fija
8.5Nm(75 lb-in)
- Installare i terminali sulla parte fissa
- Install the terminals on the fixed part
- Installer les terminaux sur la partie fixe
- Installieren Sie die Klemmen am Festes Teil
- Instalar las terminales a la parte fija
2A
2A
2A
2A
2A
2A
2A
BORNE SUPÉRIEURE
TERMINALES SUPERIOR
OBERE ANSCHLUSS
UPPER TERMINAL
TERMINALE SUPERIORE
UNTERE ANSCHLUSS
LOWER TERMINAL
TERMINALE INFERIORE
TERMINALES INFERIOR
BORNE INFÉRIEUR

ABB Emax 2 Specifications

General

Breaking Capacity	Up to 150 kA
Number of Poles	3 or 4
Standards	IEC 60947-2
Rated insulation voltage	1000V AC
Mounting	Fixed, Withdrawable
