ABB Emax E3 User Manual

L6555
Emax
10/74
Doc. no.
Model
Apparatus
Scale
Page No
1SDH000460R0002

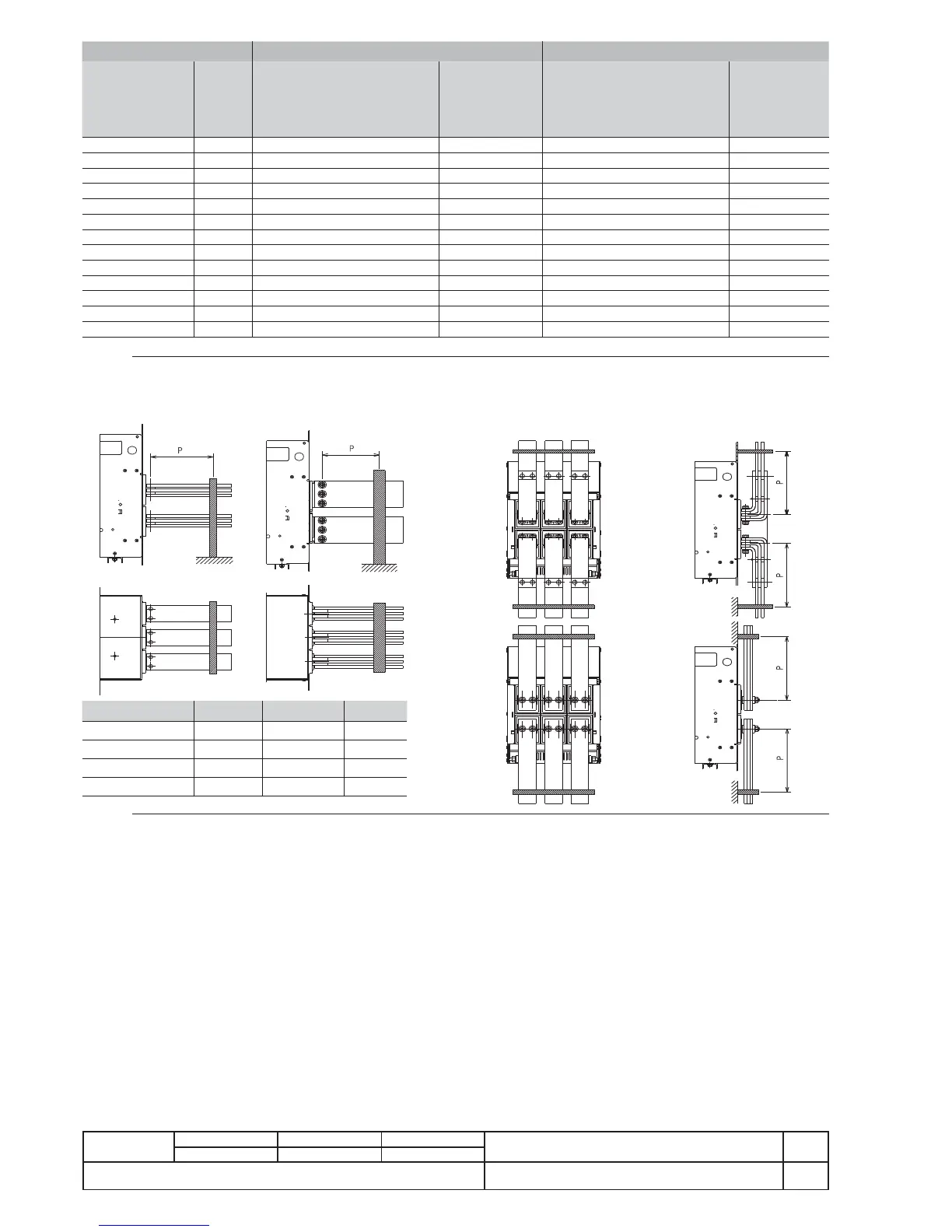

Vertical terminals Horizontal and front terminalsi
Circuit-breaker Iu [A]
Continuous
current-carrying capacity
Busbar
cross-section
Continuous
current-carrying capacity
Busbar
cross-section
[A] [mm
2
] [A] [mm
2
]
35°C 45°C 55°C 35°C 45°C 55°C
E3S/H/V 12
1250 1250 1250 1250 1x(60x10) 1250 1250 1250 1x(60x10)
E3S/H/V 16
1600 1600 1600 1600 1x(100x10) 1600 1600 1600 1x(100x10)
E3S/H/V 20
2000 2000 2000 2000 2x(100x10) 2000 2000 2000 2x(100x10)
E3N/S/H/V 25
2500 2500 2500 2500 2x(100x10) 2500 2450 2400 2x(100x10)
E3N/S/H/V 32
3200 3200 3100 2800 3x(100x10) 3000 2880 2650 3x(100x10)
E3L 20
2000 2000 2000 2000 2x(100x10) 2000 2000 1970 2x(100x10)
E3L 25
2500 2500 2390 2250 2x(100x10) 2375 2270 2100 2x(100x10)
E4H/V 32
3200 3200 3200 3200 3x(100x10) 3200 3150 3000 3x(100x10)
E4S/H/V 40
4000 4000 3980 3500 4x(100x10) 3600 3510 3150 6x(60x10)
E6V 32
3200 3200 3200 3200 3x(100x10) 3200 3200 3200 3x(100x10)
E6H/V 40
4000 4000 4000 4000 4x(100x10) 4000 4000 4000 4x(100x10)
E6H/V 50
5000 5000 4850 4600 6x(100x10) 4850 4510 4250 6x(100x10)
E6H/V 63
6300 6000 5700 5250 7x(100x10) -- -- -- -
Fig. 16
Fig. 17
Positioning the fi rst anchoring baffl e of the busbars according to the short-circuit current
A
nchoring to the switchgear
FLAT
FRONT
VERTICAL
HORIZONTAL
P E1-E2 E3-E4-E6 E1-E6
HORIZONTAL 250 150 –
VERTICAL 250 150 –
FRONT – – 250
FLAT – – 250
