5. Electrical connections
5.1. Connections to the power circuit
5.1.1. Shapes of the terminals
HR
VR
HR
VR
F
F
FL

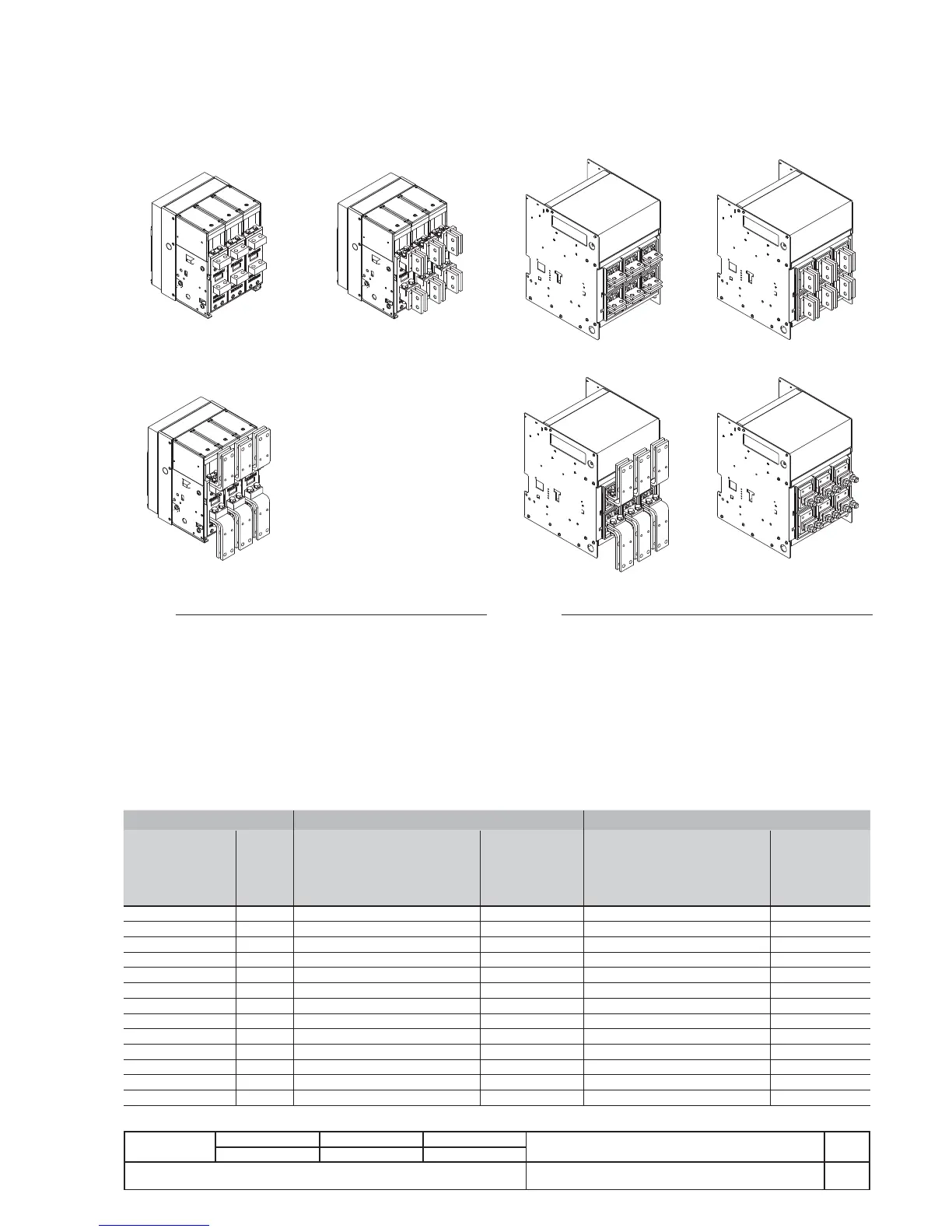

Fig. 14
Fixed part for withdrawable circuit-breaker
Fig. 15
Fixed circuit-breaker
Note
The drawings are provided to show the type of terminal in graphic form. The exact shape of the terminals is given in the “Overall
dimensions” chapter.
Horizontal rear terminals Vertical rear terminals
Front terminals Flat terminals
Horizontal rear terminals
Front terminals
Vertical rear terminals
5.1.2. Examples of positioning the connection busbars according to the types of terminals
The connection busbars enable the connection between the terminals of the circuit-breakers and the busbars of the switchgear.
Their sizing must be carefully studied by the switchgear designer. Some examples of possible constructions in relation to the
shape and size of the circuit-breaker terminals are given in this paragraph. The various types of terminals are of constant dimen-
sions for each size of circuit-breaker: it is normally advisable to exploit the whole contact surface of the terminal, so the width of
the connection busbars should be the same as that of the terminal. Different connection capacities can be obtained by adjusting
the thickness and number of busbars in parallel. In some cases, reductions in the width of the connection in relation to that of
the terminal are allowable as shown in the following examples.
Vertical terminals Horizontal and front terminalsi
Circuit-breaker Iu [A]
Continuous
current-carrying capacity
Busbar
cross-section
Continuous
current-carrying capacity
Busbar
cross-section
[A] [mm
2
] [A] [mm
2
]
35°C 45°C 55°C 35°C 45°C 55°C
E1B/N 08
800 800 800 800 1x(60x10) 800 800 800 1x(60x10)
E1B/N 10
1000 1000 1000 1000 1x(80x10) 1000 1000 1000 2x(60x8)
E1B/N 12
1250 1250 1250 1250 1x(80x10) 1250 1250 1200 2x(60x8)
E1B/N 16
1600 1600 1600 1500 2x(60x10) 1550 1450 1350 2x(60x10)
E2S 08
800 800 800 800 1x(60x10) 800 800 800 1x(60x10)
E2N/S 10
1000 1000 1000 1000 1x(60x10) 1000 1000 1000 1x(60x10)
E2N/S 12
1250 1250 1250 1250 1x(60x10) 1250 1250 1250 1x(60x10)
E2B/N/S 16
1600 1600 1600 1600 2x(60x10) 1600 1600 1530 2x(60x10)
E2B/N/S 20
2000 2000 2000 1800 3x(60x10) 2000 2000 1750 3x(60x10)
E2L 12
1250 1250 1250 1250 1x(60x10) 1250 1250 1250 1x(60x10)
E2L 16
1600 1600 1600 1500 2x(60x10) 1600 1500 1400 2x(60x10)
E3H/V 08
800 800 800 800 1x(60x10) 800 800 800 1x(60x10)
E3S/H 10
1000 1000 1000 1000 1x(60x10) 1000 1000 1000 1x(60x10)
