L6555
Emax
55/74
Doc. No
Model
Apparatus
Scale
Page No
1SDH000460R0002
E1 E2/E3/E4/E6
E1
414 324 162 162 10 – –
E2
414 324 162 162 8 – –
E3
558 432 216 216 8 370 490
E4
684 594 252 342 8 530 610
E4/f
774 - - 342 8 – 700
E6/f
1062 - - 468 8 - 1000
E6
936 810 342 468 8 750 870

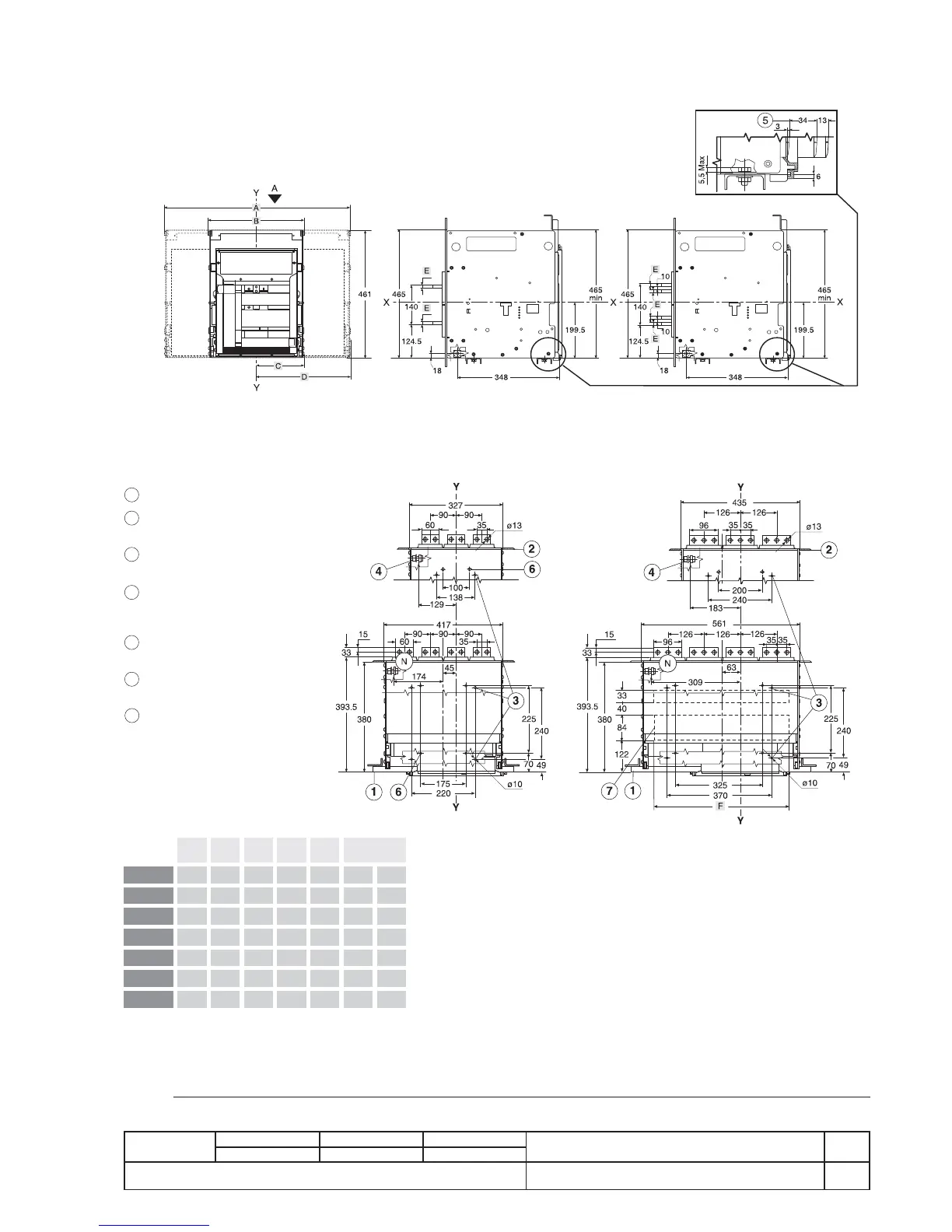

Withdrawable circuit-breaker
Basic version with horizontal rear terminals
E1/E2
View A
E3
View A
3 POLES
3 POLES
4 POLES
4 POLES
4 POLES
3 POLES
4 POLES
3 POLES
A B C D E F
3 poles 4 poles
Fig. 40
Legend
1 Inside edge of compartment door
2 Segregation
(where foreseen)
3 Fixing fi xed part Ø 10 drilling
(use M8 screws)
4 N° 1 M12 screw (E1, E2, E3) or n°
2 M12 screws (E4, E6) for earthing
(included in the supply)
5 Run from connected for a TEST to
isolated
6 Alternative drilling with 25mm
pitch for fi xing fi xed part
7 Ventilation drilling on the
switchgear
