ABB Emax E6 - 13 Overall Dimensions

L6555
Emax
49/74
Doc. No
Model
Apparatus
Scale
Page No
1SDH000460R0002

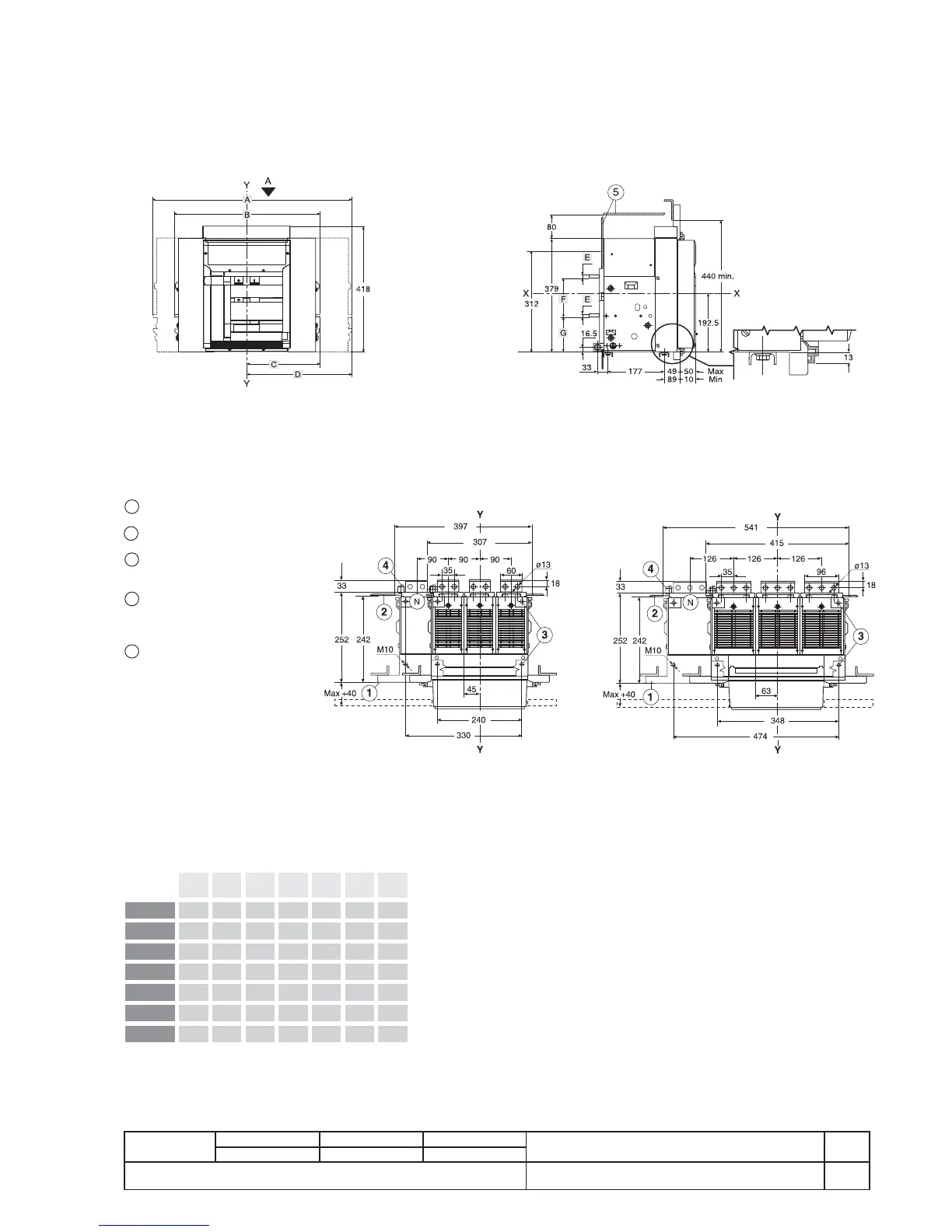

13. Overall dimensions
Fixed circuit-breaker
Basic version with horizontal rear terminals
A B C D E F G
E1
386 296 148 148 10 130 117,5
E2
386 296 148 148 26 114 117,5
E3
530 404 202 202 26 114 117,5
E4
656 566 238 328 26 166 91,5
E4/f
746 - - 328 26 166 91,5
E6
908 782 328 454 26 166 91,5
E6/f
1034 - - 454 26 166 91,5
4 POLES
3 POLES
4 POLES
3 POLES
Legend
1 Inside edge of compartment door
2 Segregation (where foreseen)
3 Circuit-breaker M10 fi xing drilling
(use M10 screws)
4 N° 1 M12 screw (E1, E2, E3) or
n° 2 M12 screws (E4, E6) for
earthing (included in the supply)
5 Insulating or metal-insulated wall
E1/E2
View A
E3
View A
4 POLES
3 POLES
4 POLES
4 POLES
3 POLES
4 POLES
3 POLES
3 POLES
