NoteAction
This step is mandatory.
CAUTION
Verify that the emergency stop button and
the three-position enabling device are work-
ing.
7

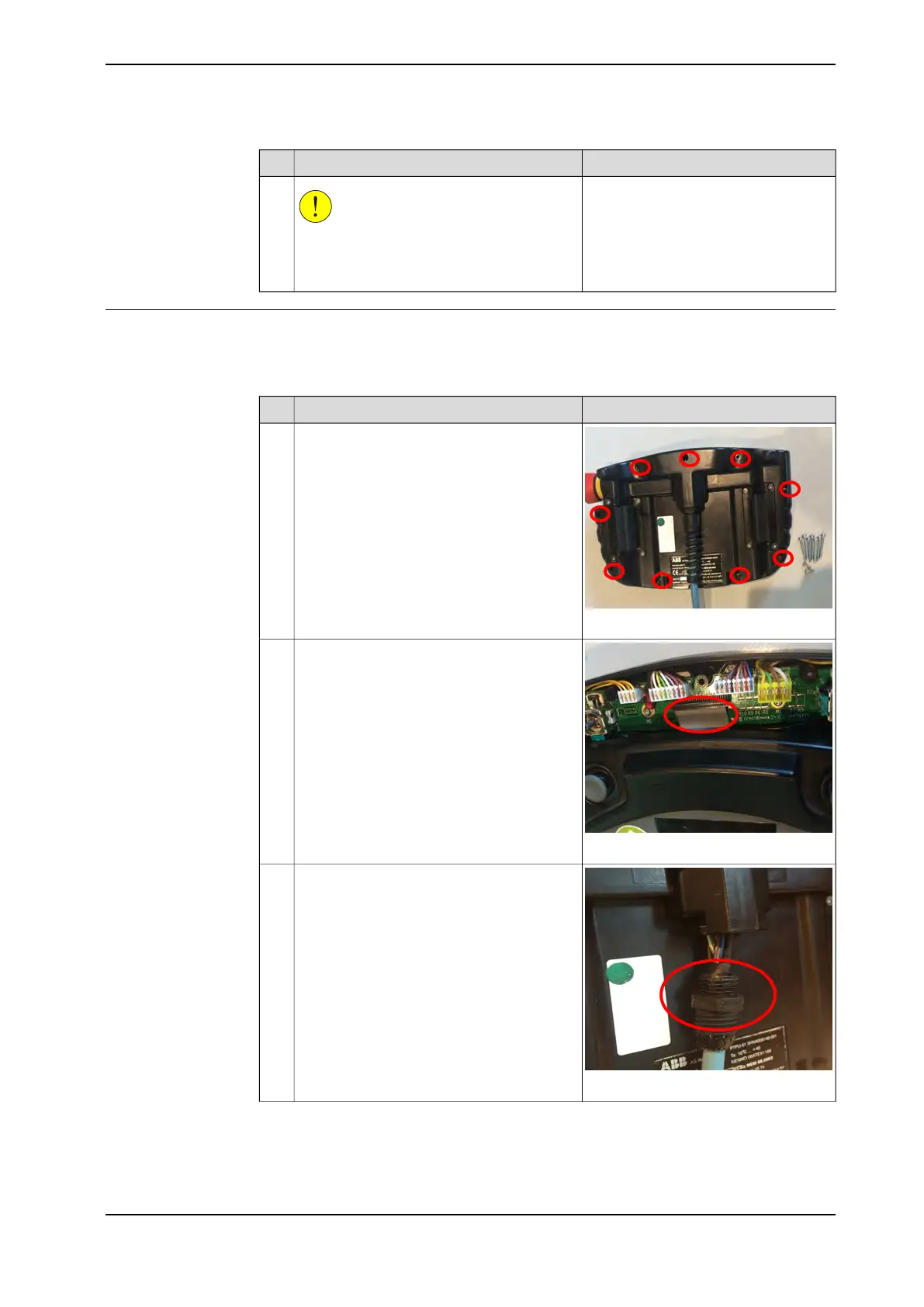

Connecting the retractable cable, IRC5P
Use this procedure to connect the FlexPendant to the retractable cable.
Disconnect the original cable
NoteAction
xx1600000631
Remove the screws on the back cover of the
FlexPendant using a torx screw driver.
1
xx1600000632
Pull the front cover out of the back cover and
remove the connector between them.
2
xx1600000633
Remove the cable nut of the back cover.3
Continues on next page
Product manual - FlexPendant Retractable Cable 25
3HAC048816-001 Revision: B
© Copyright 2015-2016 ABB. All rights reserved.
2 Installation
2.3 Connecting the cables
Continued
