NoteAction
xx1600000634

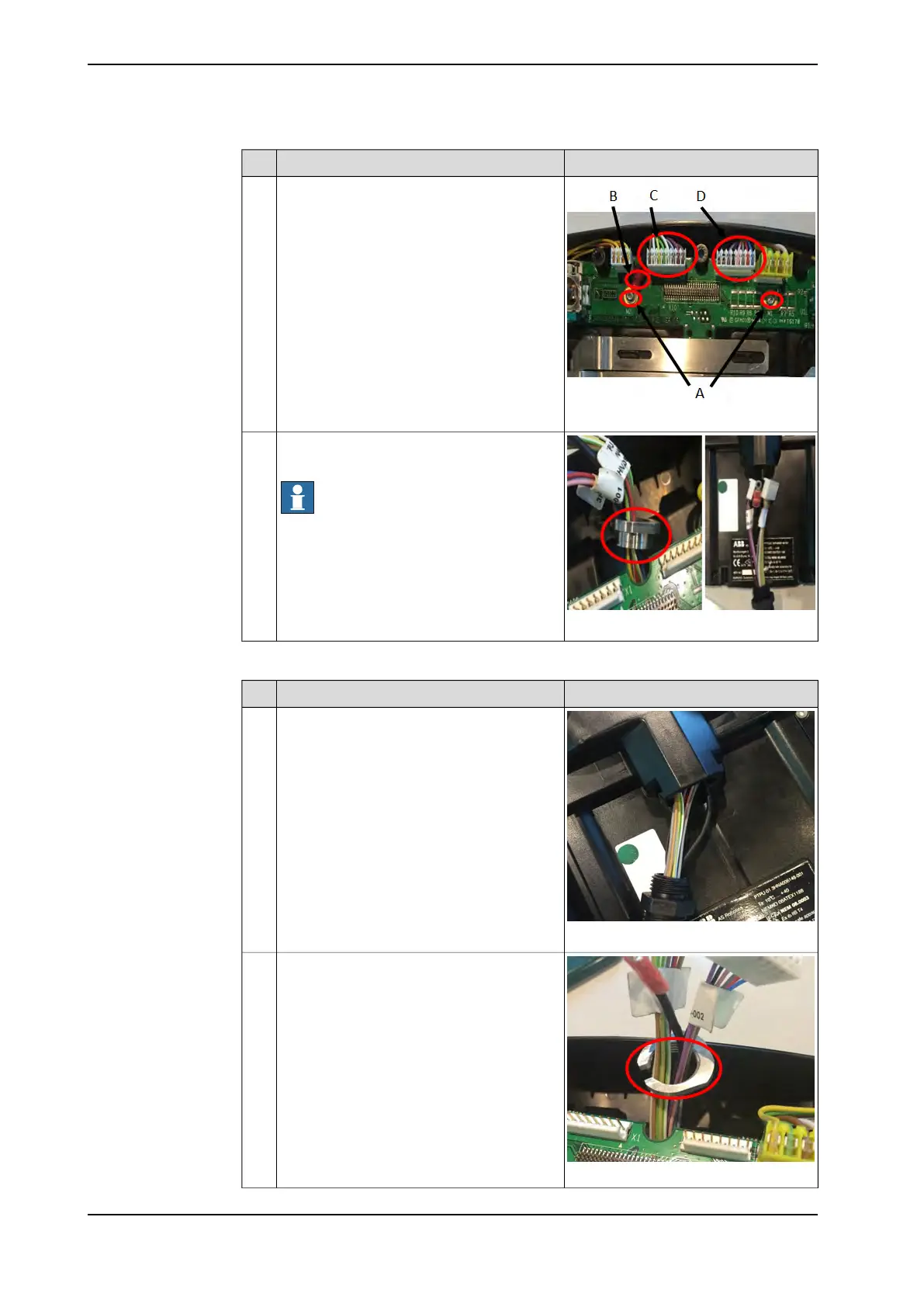

Remove the screws (A) and the grounding
wire (B). Disconnect the cable PTPU.X1 (C)
and the cable PTPU.X2 (D).
4
xx1600000635
Remove the cable ring and pull out the cables
from the back cover.
Note
Be careful when pulling out the cables, the
space is limited.
5
Connect the retractable cable
NoteAction
xx1600000636
Push the teach pendant cables into the cable
hole of the back cover.
1
xx1600000637
Install the cable ring.2
Continues on next page
26 Product manual - FlexPendant Retractable Cable
3HAC048816-001 Revision: B
© Copyright 2015-2016 ABB. All rights reserved.
2 Installation
2.3 Connecting the cables
Continued
