NoteAction
xx1600000638

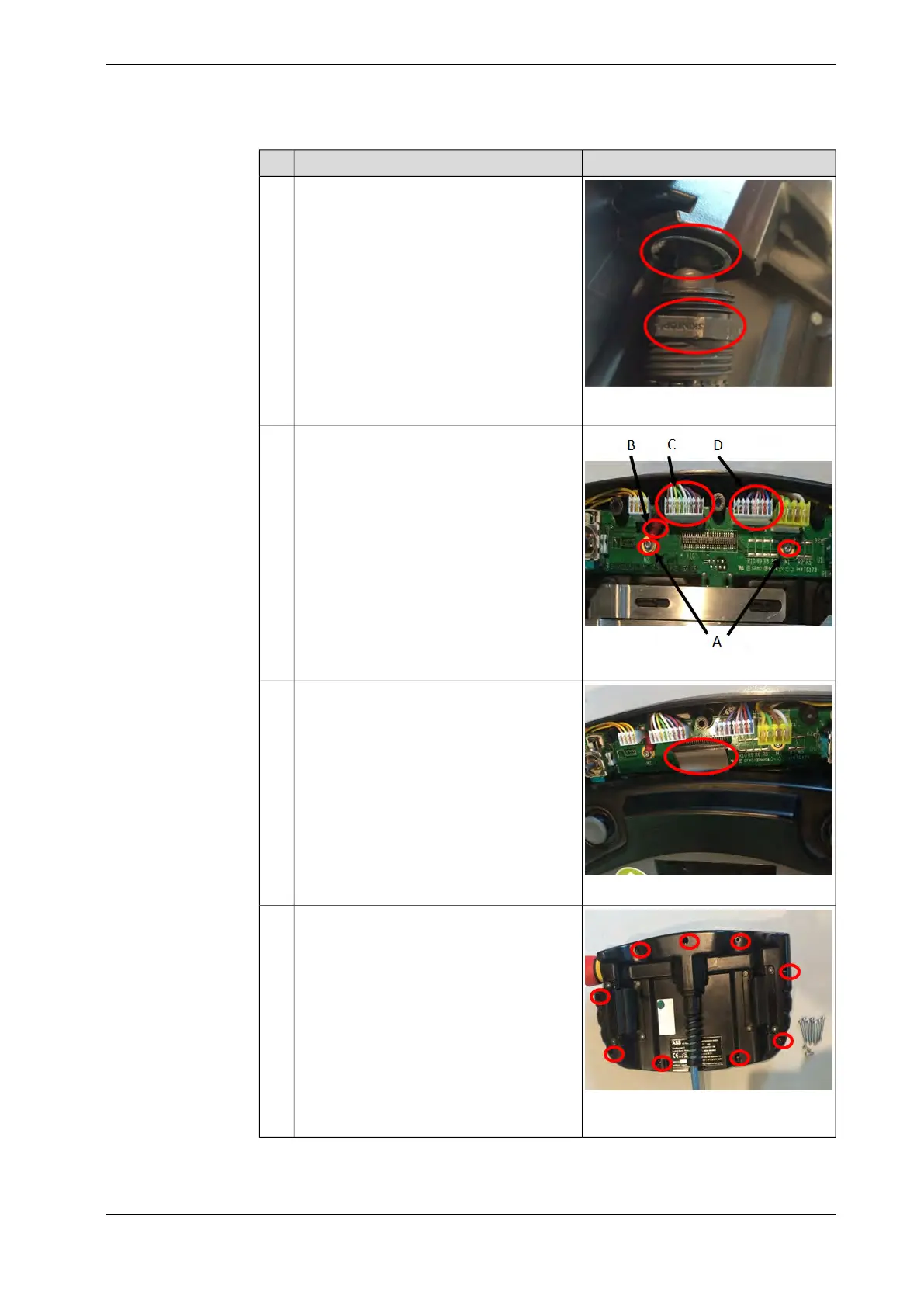

Push the cable ring into position and tighten
the cable nut to it.
3
xx1600000634
Connect the wire (B) and the cables (C/D)
and fasten the screw (A).
4
xx1600000632
Connect the cable between the front cover
and the back cover.
5
xx1600000631
Tighten the screws on the back cover using
a torx screw driver.
6
Tightening torque: 0.6 Nm
Continues on next page
Product manual - FlexPendant Retractable Cable 27
3HAC048816-001 Revision: B
© Copyright 2015-2016 ABB. All rights reserved.
2 Installation
2.3 Connecting the cables
Continued
