Connecting the retractable cable, S4C/S4C+
Use this procedure to connect the teach pendant to the retractable cable.

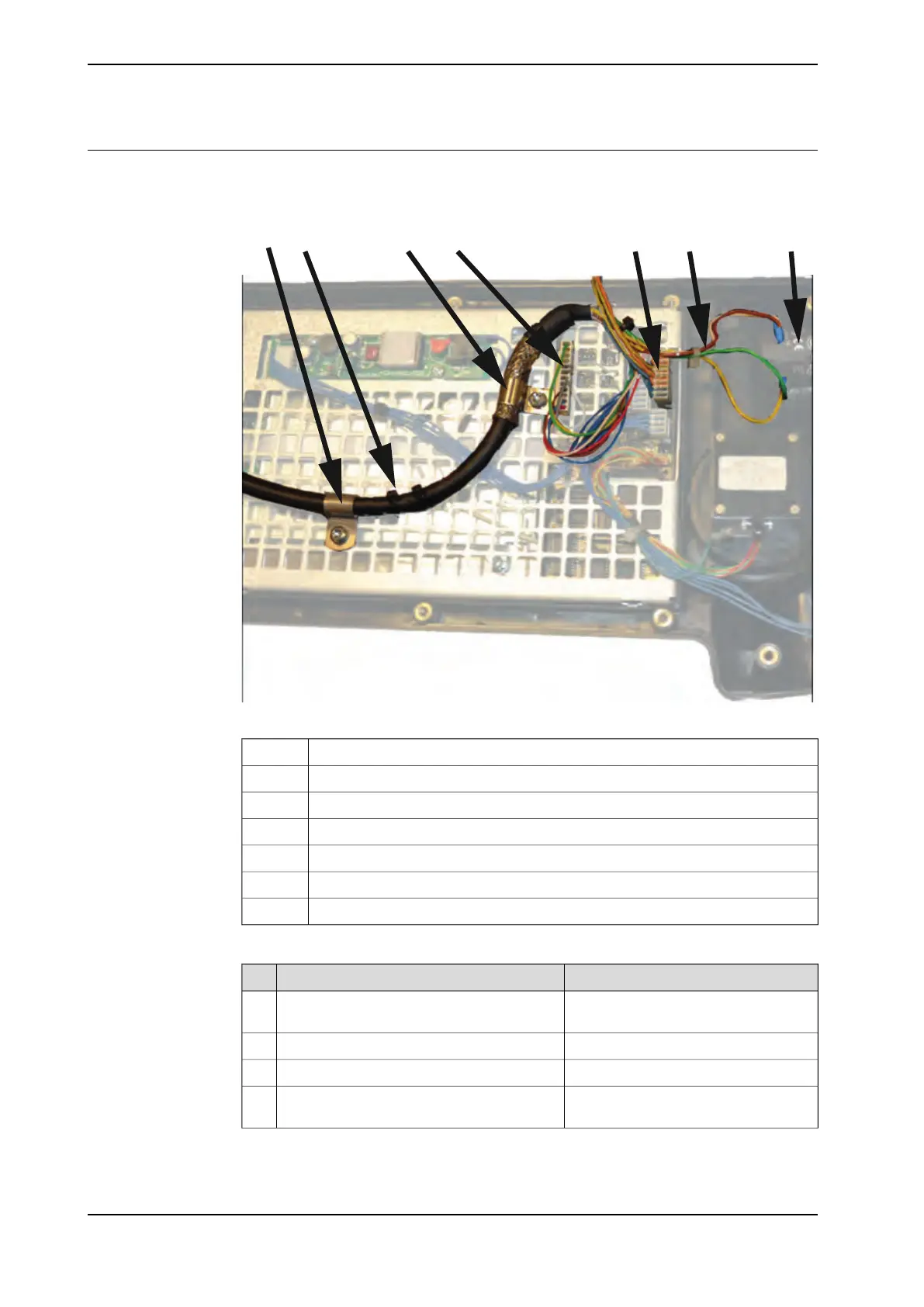

A B C D E F G
xx1300002540
ClampA
Plastic strapsB
Grounding clampC
Main cable connectorD
Cable connector from the back coverE
Wires to the emergency stopF
Emergency stop buttonG
Disconnecting the original cable
NoteAction
Remove the back housing cover of the teach
pendant.
1
See position E in the figure.Disconnect the cable from the back cover.2
See position C in the figure.Remove the grounding screw and clamp.3
See positions A and B in the figure.Remove the screw, clamp, and plastic straps
that attach the teach pendant cable.
4
Continues on next page
