NoteAction
xx1300002541

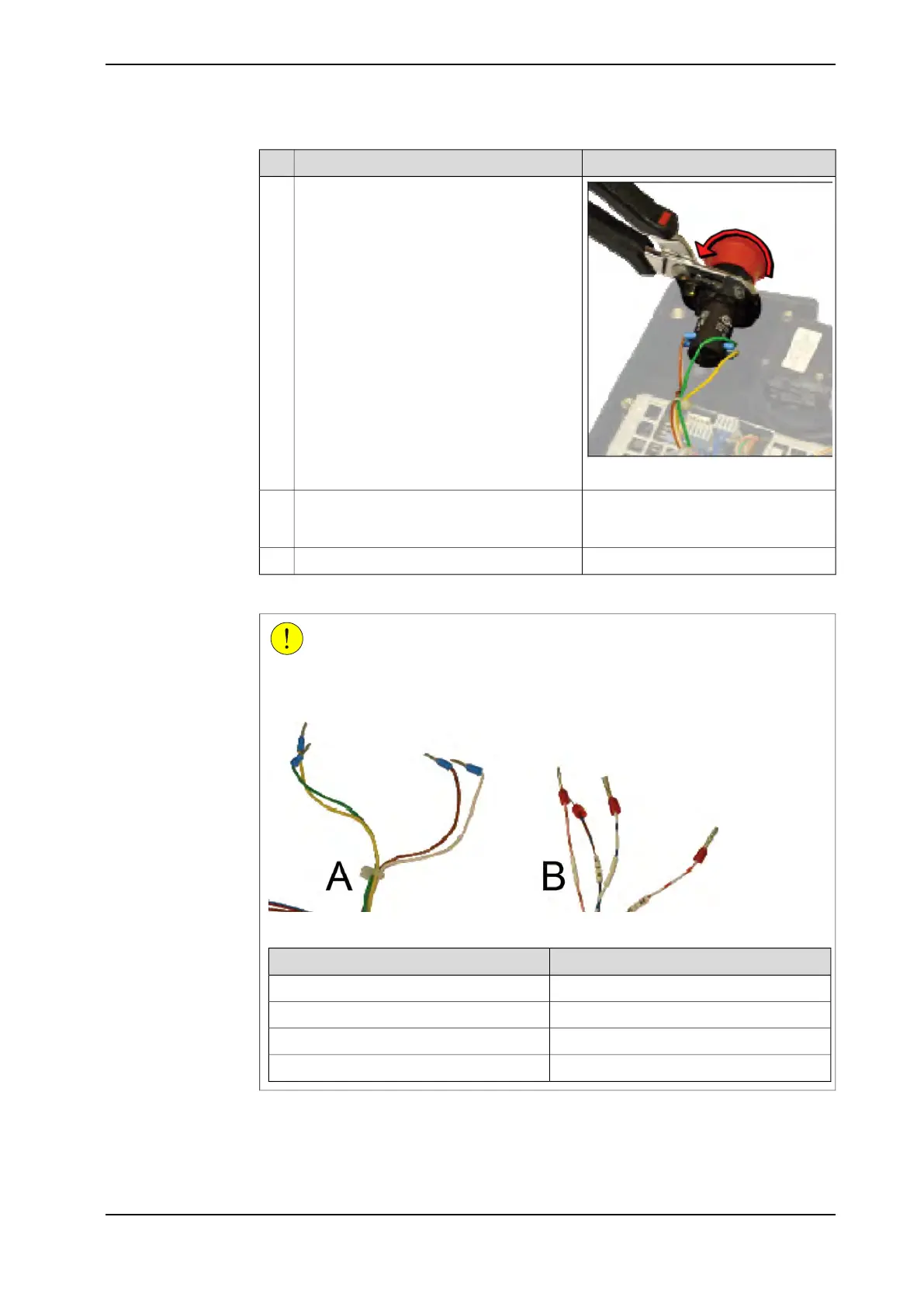

Loosen the sealing ring of the emergency
stop button.
5
See positions F and G in the figure.Loosen the holding screws and remove the
wires from the emergency stop button
(brown, white, green, and yellow).
6
See position D in the figure.Disconnect the main cable connector.7
Connecting the retractable cable
CAUTION
The color code of the wires in the retractable cable (B) do not match the colors
of the original wires (A).
xx1400000543
Wire colorColor code
YellowYE
BrownBN
GreenGN
WhiteWH
Continues on next page
Product manual - FlexPendant Retractable Cable 29
3HAC048816-001 Revision: B
© Copyright 2015-2016 ABB. All rights reserved.
