Loads that are not attached according to regulations can cause injury to per-
sonnel or fatal accidents.
Only fasten the turbocharger, assemblies or individual parts on properly
functional lifting gear with sufficient load limit.
Pay attention to the correct attachment of loads on the crane hook.
People must not stand under suspended loads.
Wear safety gloves to protect against mechanical hazards.
Wear safety helmet.
Defined loading point on a component or an assembly (blind hole thread, eyelet, lug).
Devices that are fitted on the turbocharger in order to obtain a suspension point. Assembly
devices are specially constructed and designed for the defined use; they are not commer-
cially available products. Use assembly devices only for the described applications.
Equipment for the lifting and transporting of loads (ropes, chain block, crane). Lifting gear
is not supplied by ABB.

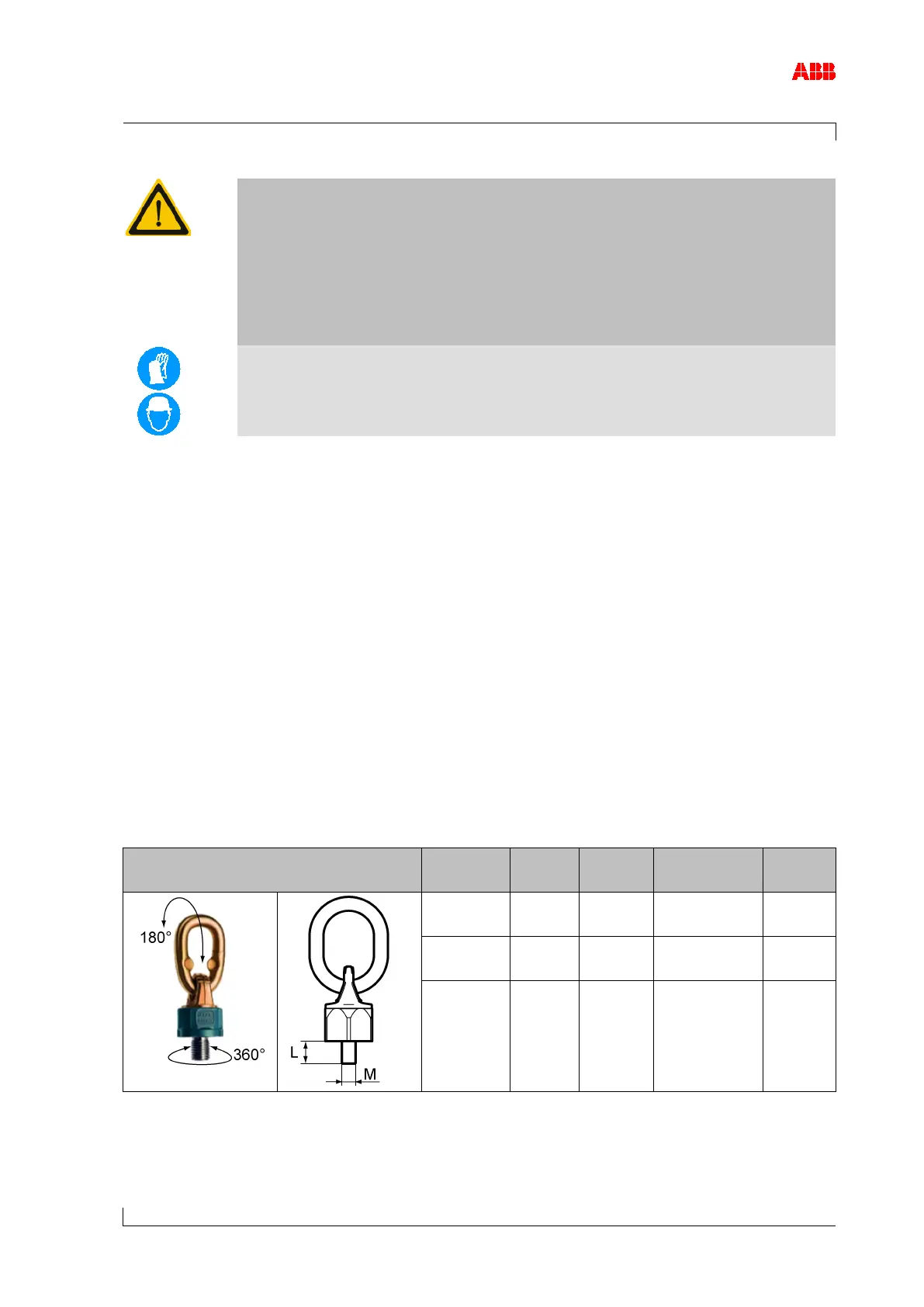

Swivel lifting eyes to be used
Two swivel lifting eyes are required for the safe lifting of loads, which are not supplied by
ABB Turbo Systems.
A150 M8
M16
13 mm
21 mm
75 kg
500 kg
2
2
A155 M8
M16
13 mm
21 mm
150 kg
850 kg
2
2
Table 33: Swivel lifting eyes
