8.16 Installing air inlets

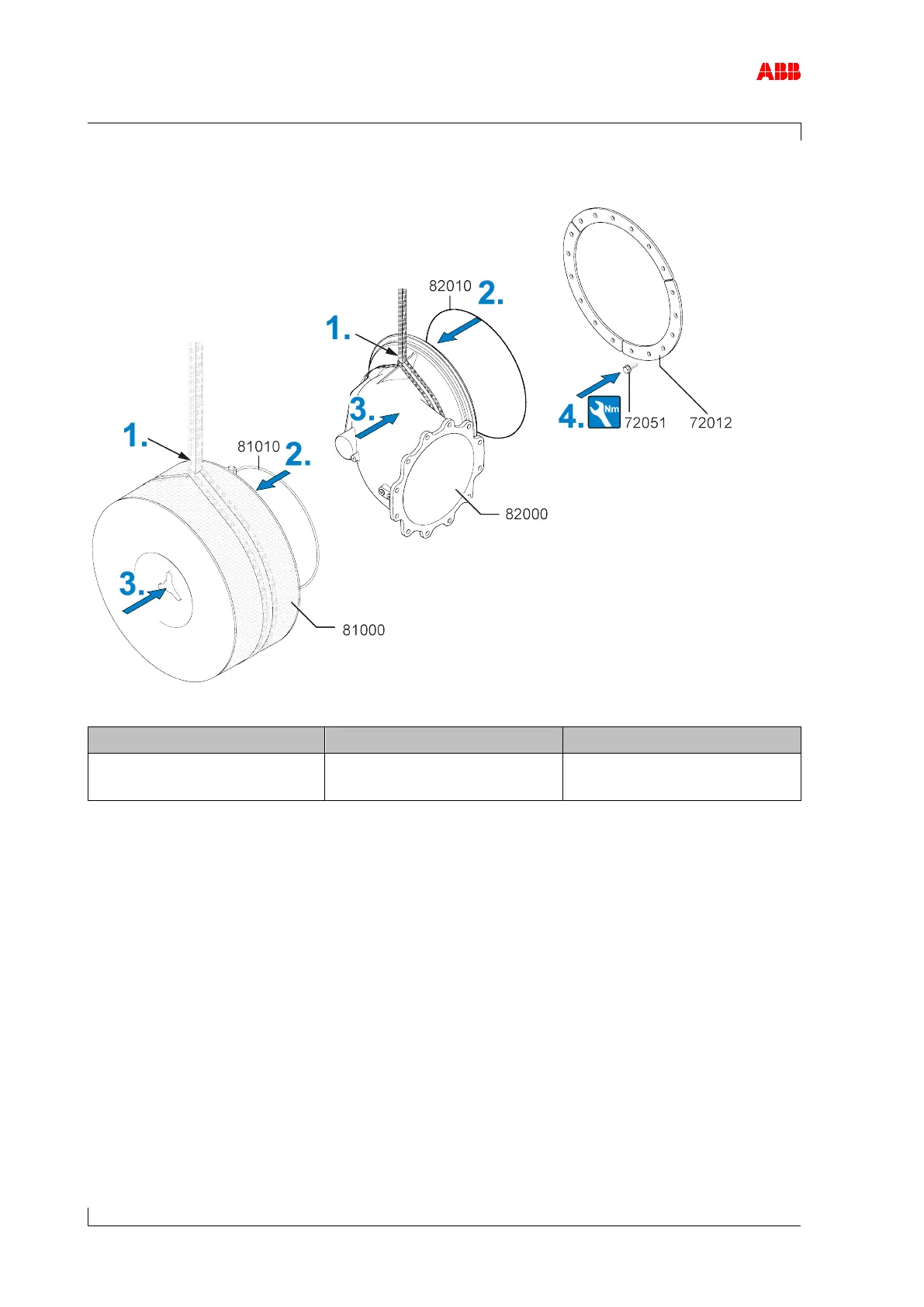

Figure 48: Installing the air inlets
Part number
A150
A155
72051 M16
275 Nm
M16
275 Nm
Table 45: Tightening torque (72051)
1. Attach lifting gear to the filter silencer (81000) or air suction branch (82000).
2. Fit a new O-ring (81010) to the filter silencer (81000) or a new O-ring (82010) to the air
suction branch (82000).
3. Install the filter silencer (81000) or air suction branch (82000).
4. Fit the fastening strips (72012) with hexagon-head screws (72051). Observe the tightening
torque.
