Removing the turbine casing
CAUTION
Screw-in depth of swivel lifting eye
If burst protection is fitted, the turbine casing can be dismantled with the
burst protection.
 Ensure that the swivel lifting eye can be screwed in all the way.
 Mark the casing position for assembly.

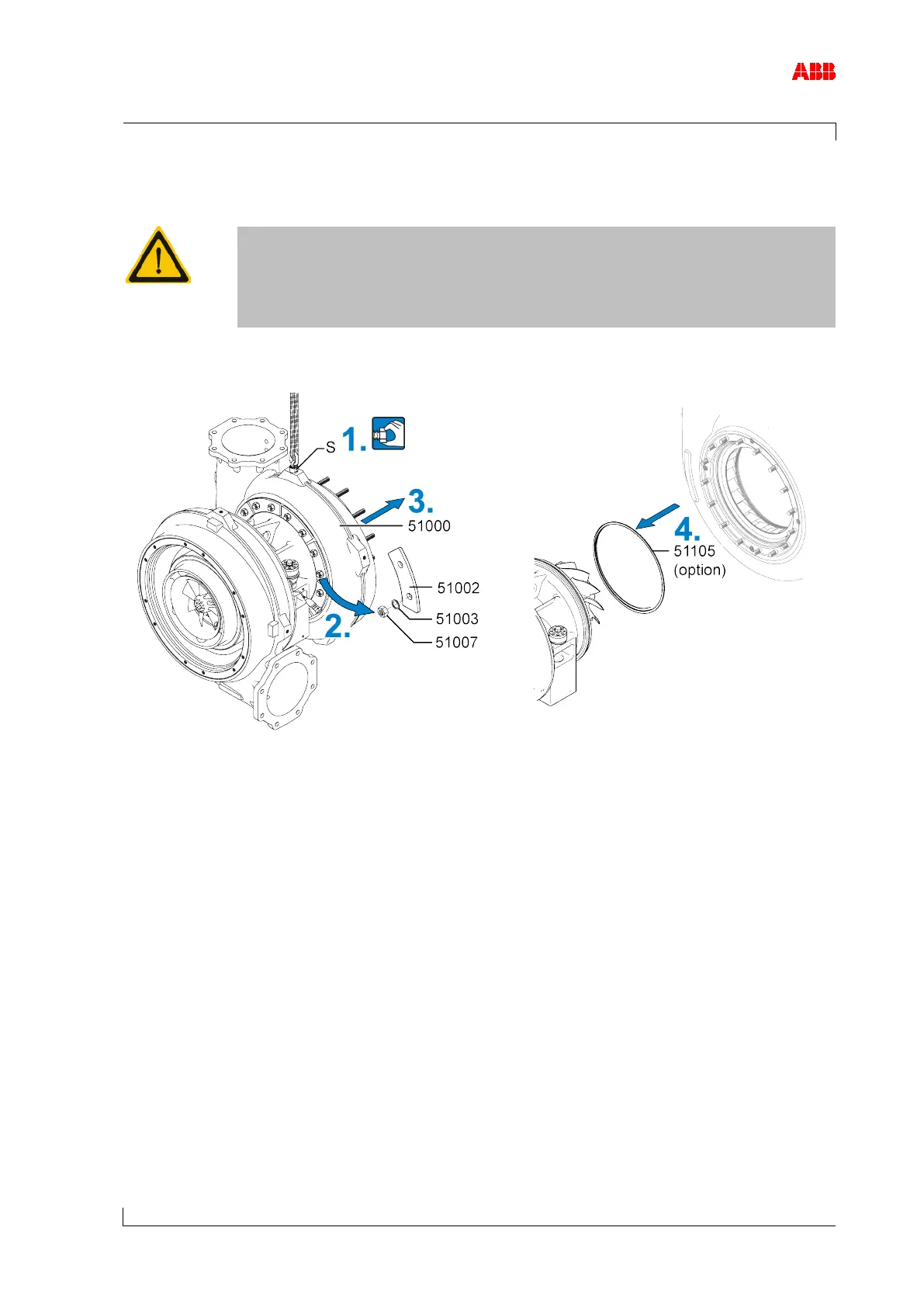

Figure 50: Removing the turbine casing
1. Fit swivel lifting eye (S) to the turbine casing (51000). Secure lifting gear to the swivel lift-
ing eye.
2. Loosen nuts (51007) and remove together with Verbus Ripp® washers (51003) and fas-
tening strips (51002).
3. Remove turbine casing, set it down properly in an appropriate place and secure it.
4. If present: Remove the C-ring (51105).
