Operation Manual / 4 Product description / A150-M.. - A155-M..
Page 70 /
© Copyright 2017 ABB. All rights reserved.
8.2 Weights of individual parts
The specified weights of the individual parts or assemblies are rounded-up standard values.

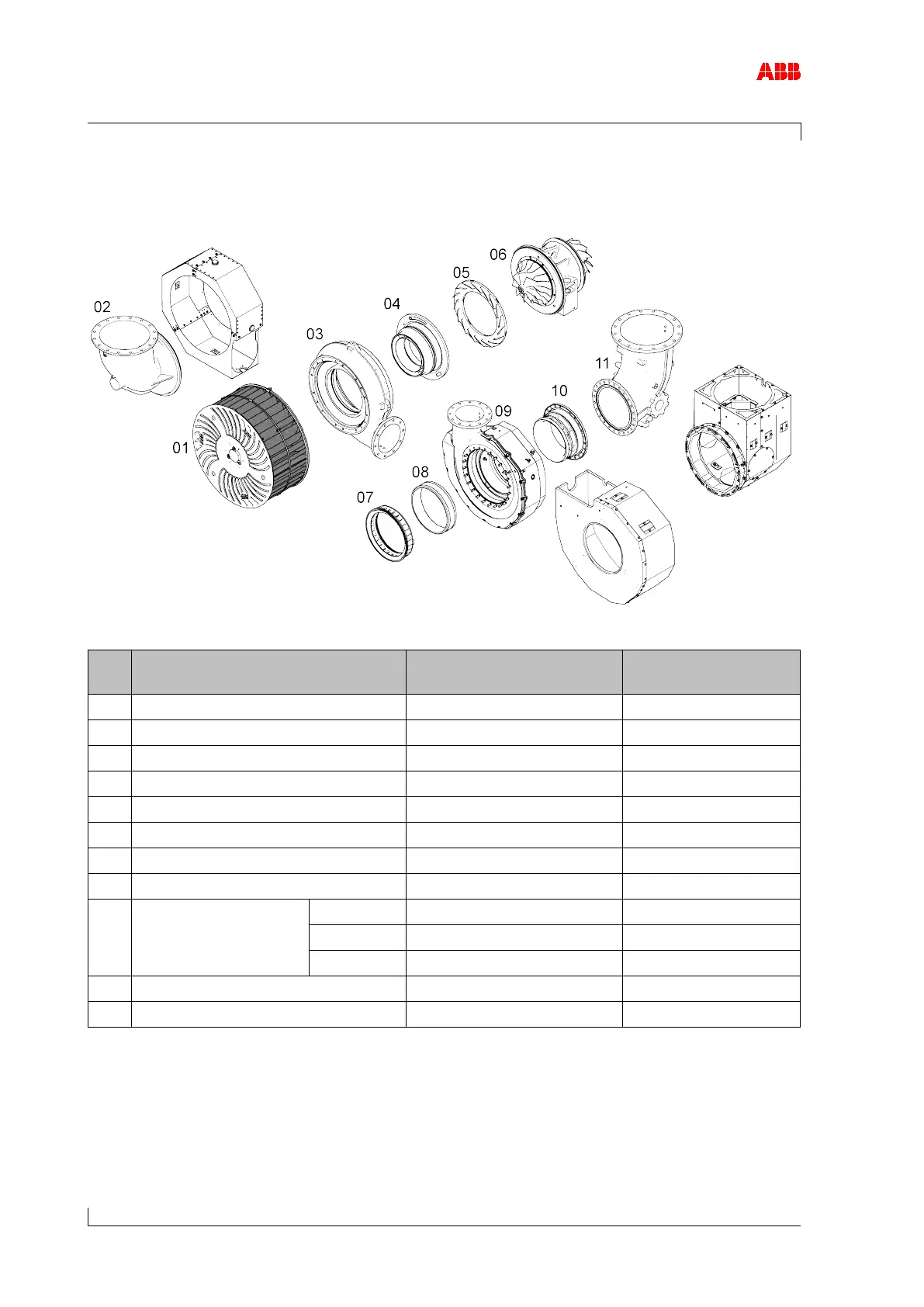

Figure 26: Weights of assemblies
01 Filter silencer 90 140
02 Radial air suction branch 24 40
03 Compressor casing 160 250
04 Wall insert 35 65
05 Diffuser 13 21
06 Cartridge group 220 360
07 Nozzle ring 8 13
08 Burst ring 11 17
09 Turbine casing 1 inlet * 260 420
2 inlets 210 340
3 inlets 220 350
10 Gas outlet flange 35 65
11 Gas outlet casing 130 200
Table 34: Weights of assemblies
* Including burst protection
