9.5 Cover plate drawing
The cover plate is not included in the ABB Turbo Systems scope of delivery and must be
manufactured by the operating company according to the following drawing.
Material: General structural steel, in compliance with DIN EN 10025-2.

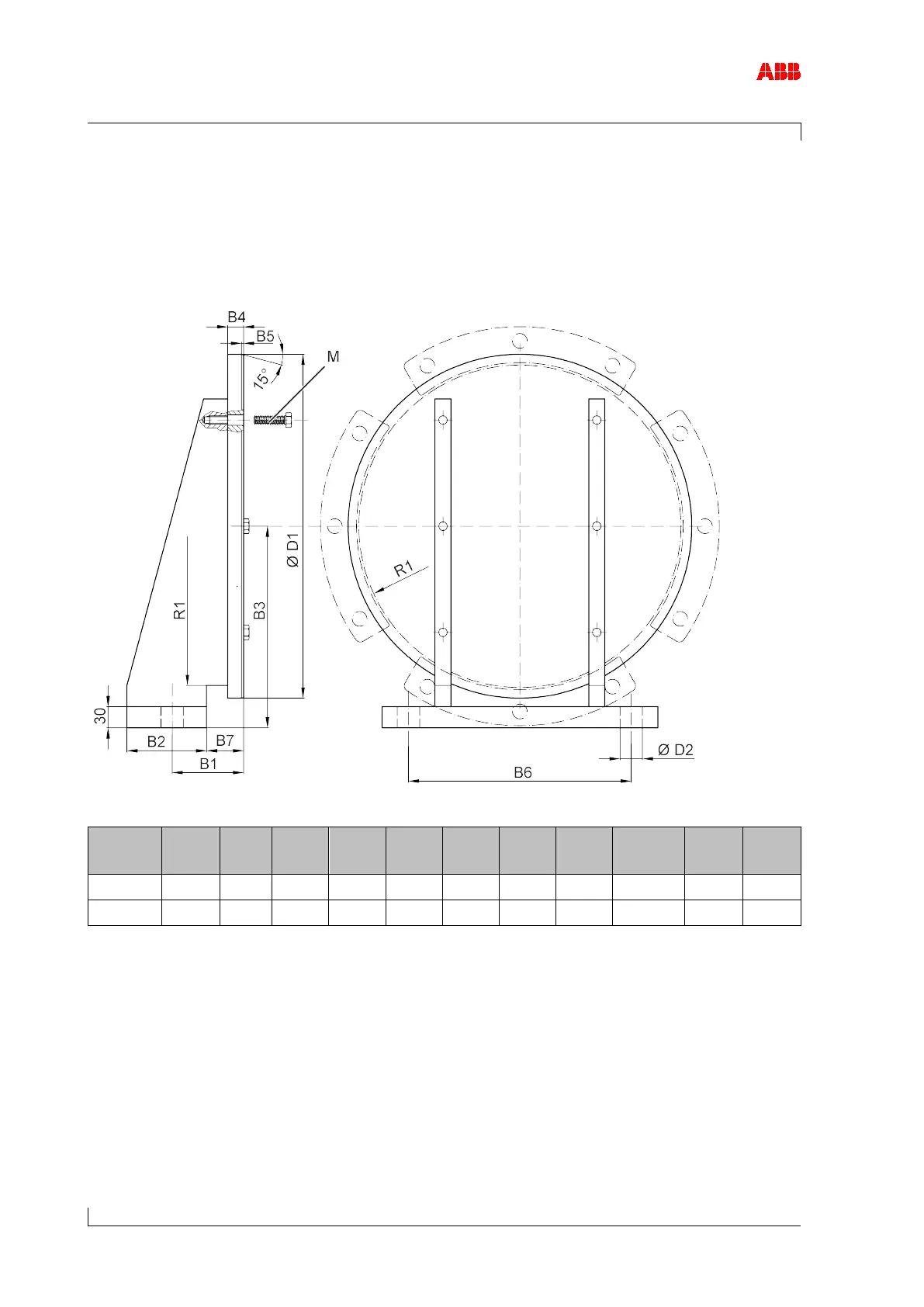

Figure 59: Cover plate drawing
Product
B1
± 0.5
B2
B3
B4
± 0.2
B5
B6
± 0.1
B7
ØD1
± 0.2
ØD2
R1
M
A150 138.9 135 240 21.4 2.0 320 71.4 413.6 33 ≤ 196 M12
A155 164.6 160 286.5 25.5 2.0 385 84.6 492 39 ≤ 232 M16
Table 50: Cover plate dimensions [mm]
