2 Removing and Installing
2.1 Turbocharger weight and transportation
Lifting gear with a sufficient load limit must be used for removing and installing the turbo-
charger. The following weight specification applies to the heaviest variant possible. Depending
on the specification, the weight specified on the rating plate may be lower than the standard
value specified here.
Product
Weights [kg]
A150-M 1010
A155-M 1710
Table 2: Weights of turbocharger A150-M.. – A155-M..

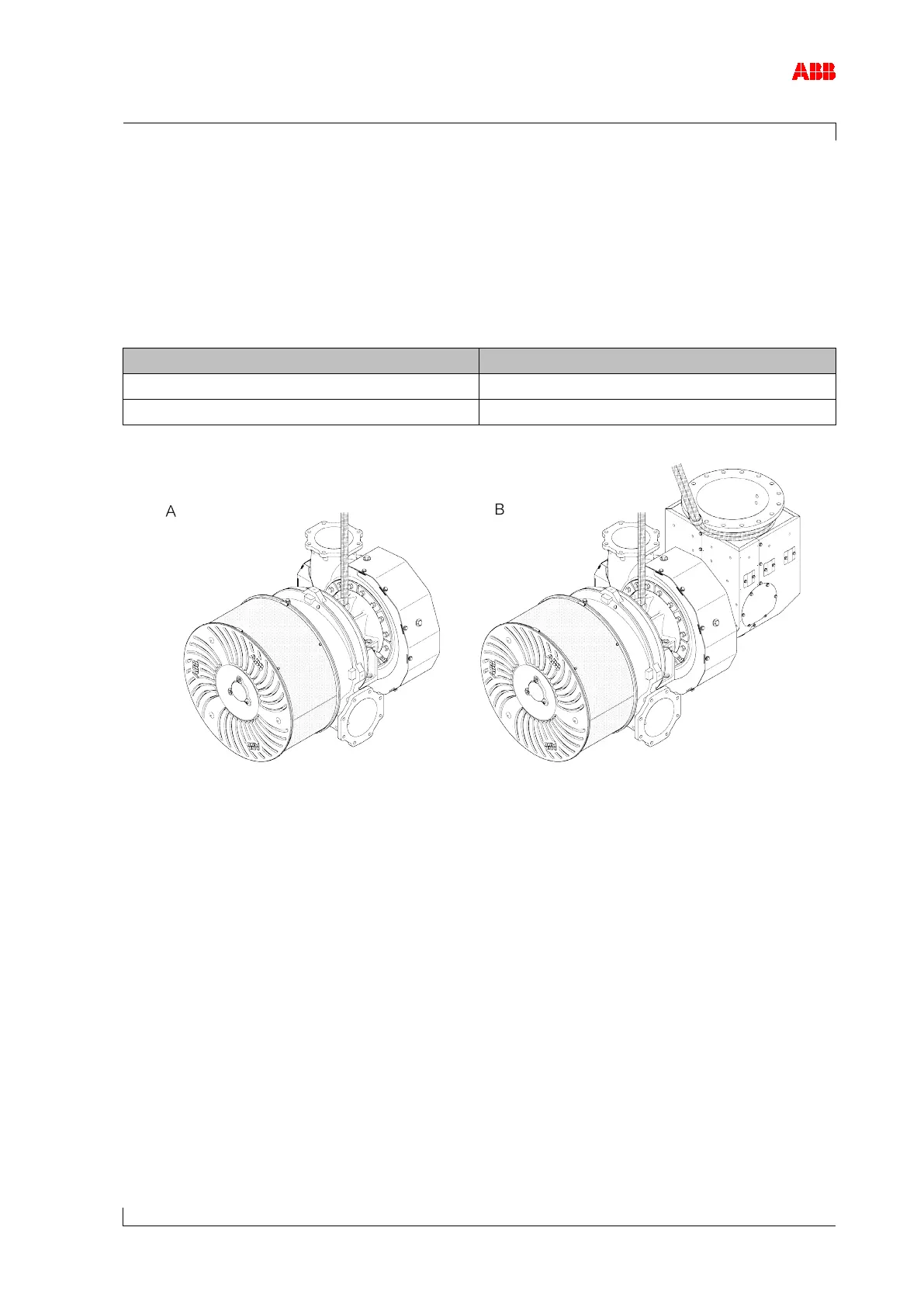

Figure 5: Suspension of complete turbocharger unit
A Complete turbocharger unit without gas outlet casing
B Complete turbocharger unit with gas outlet casing
