8.20 Installing the gas outlet casing

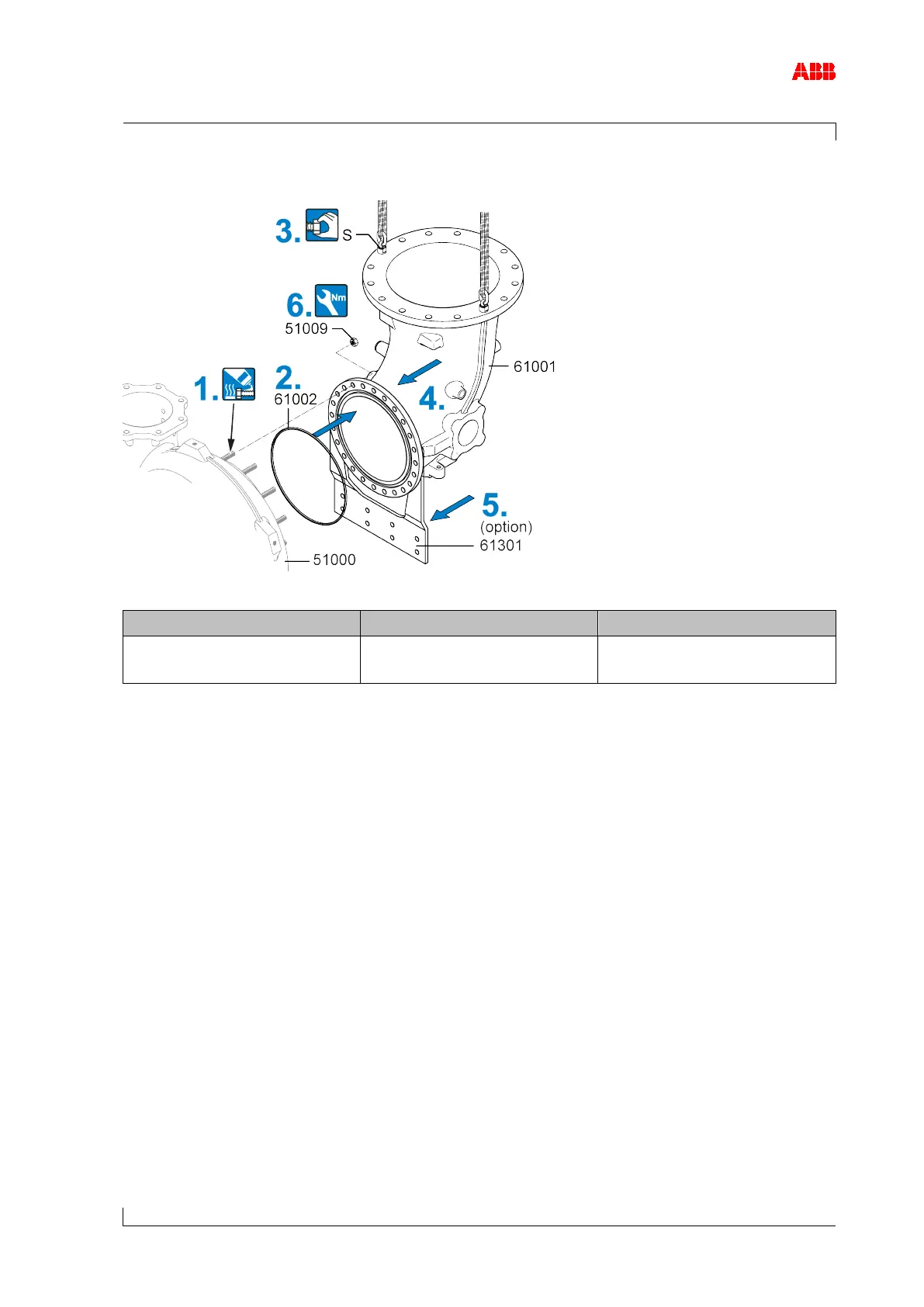

Figure 54: Installing the gas outlet casing
Part number
A150
A155
51009 M16
200 Nm
M16
200 Nm
Table 47: Tightening torque (51009)
1. Coat the thread with high-temperature grease.
2. Insert a new gasket (61002) into the gas outlet casing (61001).
3. Fit swivel lifting eyes (S) to the gas outlet casing (61001). Secure lifting gear to the swivel
lifting eye.
4. Position the gas outlet casing correctly on the turbine casing (51000).
5. If present: Fit the support (61301).
6. Fit the hexagon nuts (51009). Observe the tightening torque.
