8.11 Nozzle ring compression PD
For the nozzle ring (56001) to be fixed during operation, it must be clamped between the heat
shield (42400) and the turbine casing (51000).

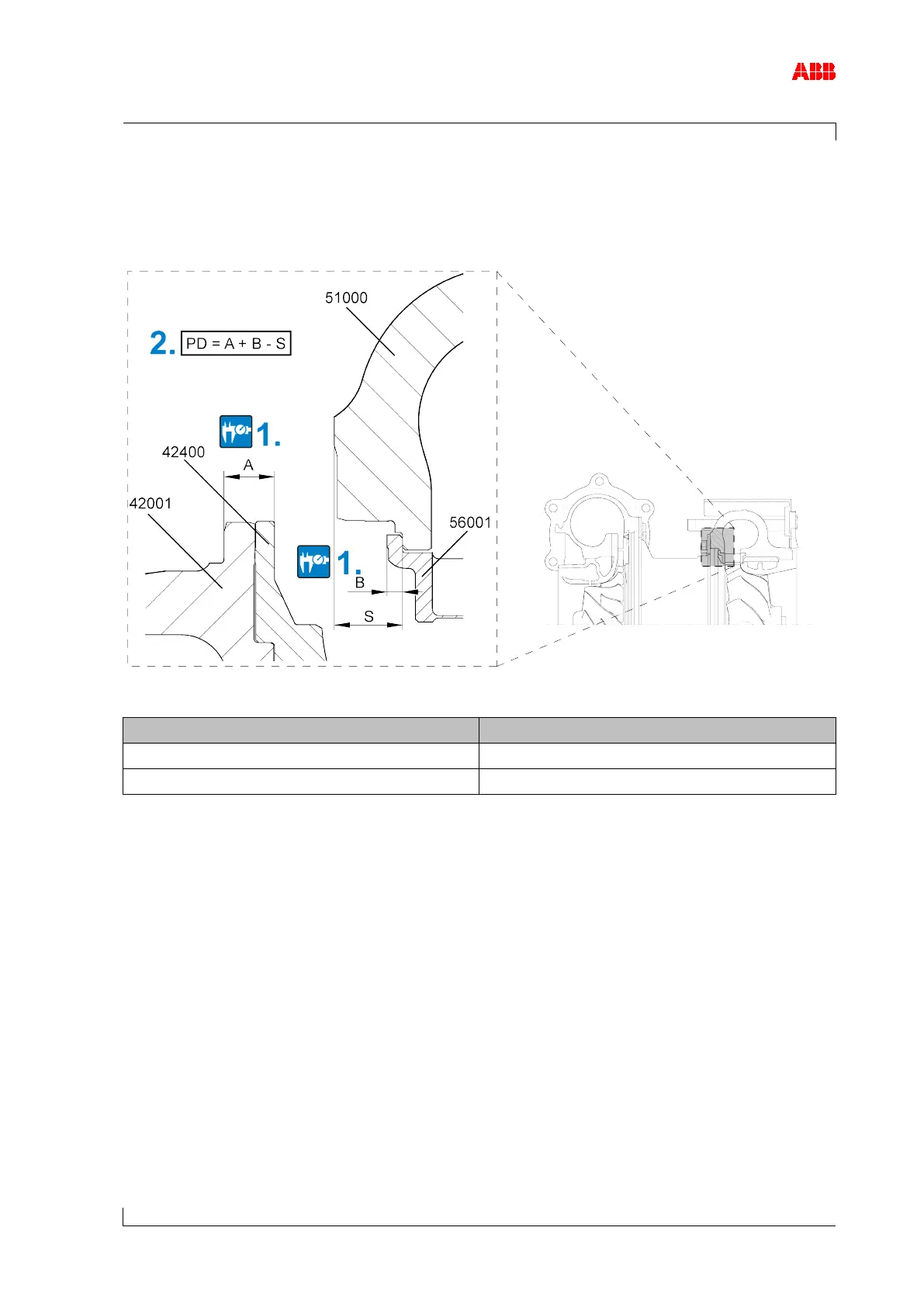

Figure 41: Nozzle ring compression PD
Product
Compression PD [mm]
A150 -0.17 ... 0.17
A155 -0.17 ... 0.17
Table 39: Permitted nozzle ring compression PD
42001 Bearing casing 51000 Turbine casing
42400
Heat shield
56001
Nozzle ring
1. Measure dimensions A, B, and S on cleaned surfaces.
2. Calculate compression (PD).
 If the calculated value (PD) lies outside the specified range, contact an ABB Turbocharging
Service Station.
