Operation Manual / TPL67-C.. - TPL71-C..
8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2018 . All rights reserved. HZTL2488_EN Revision E April 2018

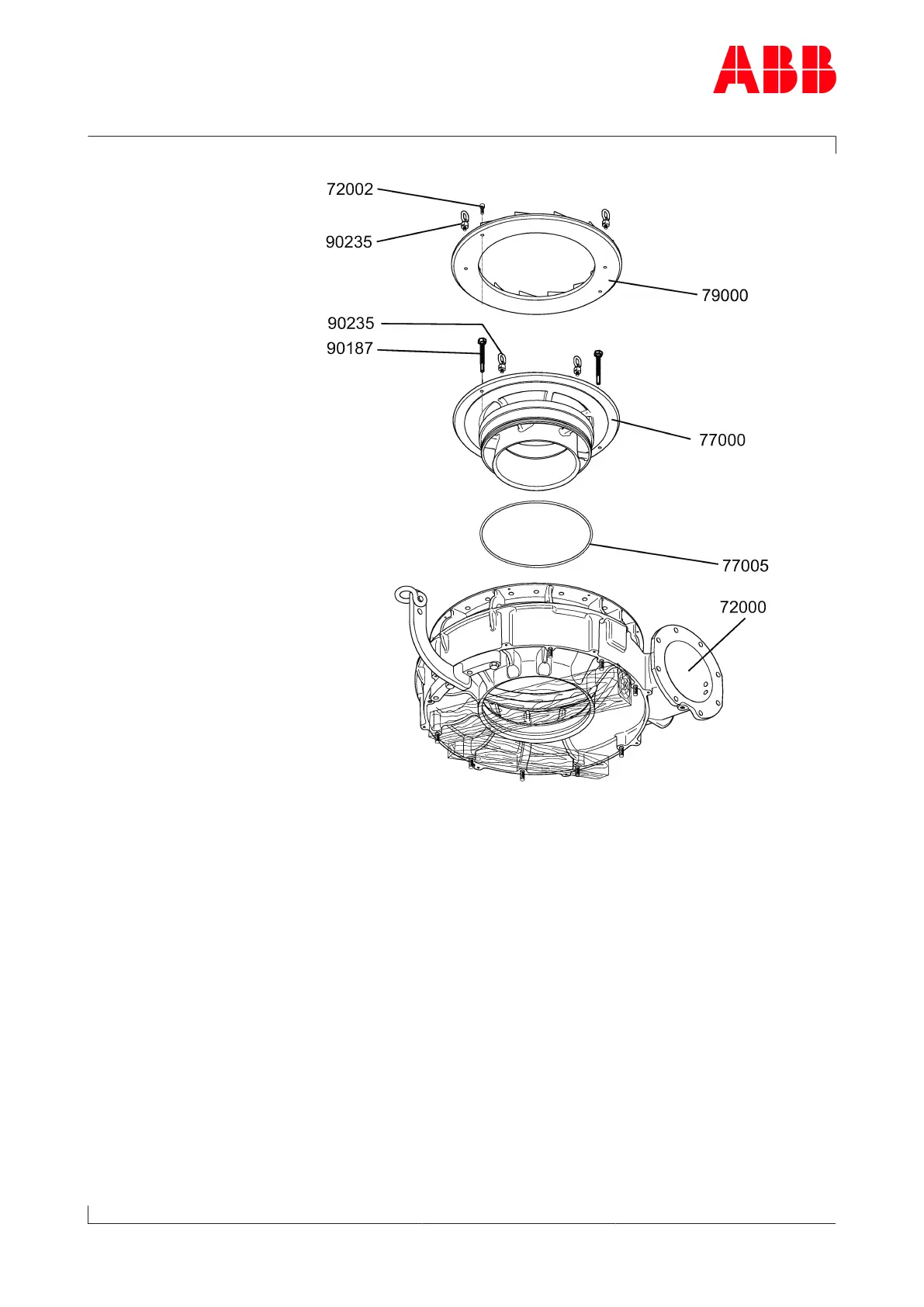

u Fit the O-ring (77005) to the wall insert (77000).
u Fit the swivel lifting eyes (90235) and attach lifting gear.
u Align the wall insert (77000) using the centering screw (90187) and fit
it.
u Put the diffuser (79000) in place using the swivel lifting eyes (90235).
u Remove the swivel lifting eyes (90235).
u Fit screws (72002).
