Operation Manual / TPL67-C.. - TPL71-C..
8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2018 . All rights reserved. HZTL2488_EN Revision E April 2018

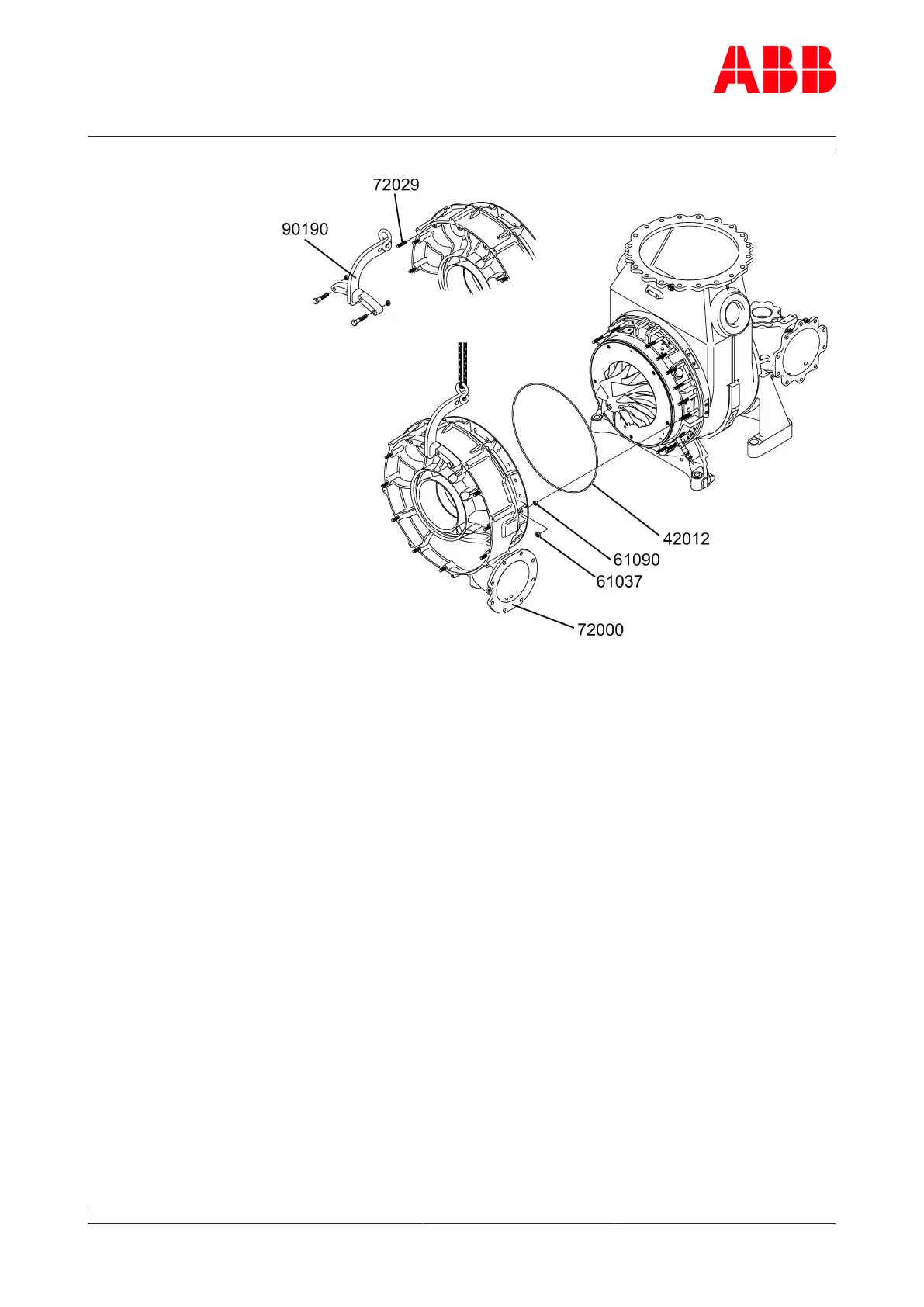

u Fit O-ring (42012).
u Attach lifting gear to the shackle of the lifting device (90190) and turn
the compressor casing (72000).
u Screw three press-off nuts (61090) onto bearing casing studs, equally
distributed around circumference, and screw up to end of thread by
hand.
u Push the compressor casing (72000) flush onto the cartridge group
and attach with nuts (61037).
u Secure the three press-off nuts (61090) against the compressor cas-
ing (72000) with the appropriate tightening torque (see chapter Table
of tightening torques).
u Remove lifting device (90190).
