8.11 Installing the compressor casing
Installing the compressor casing

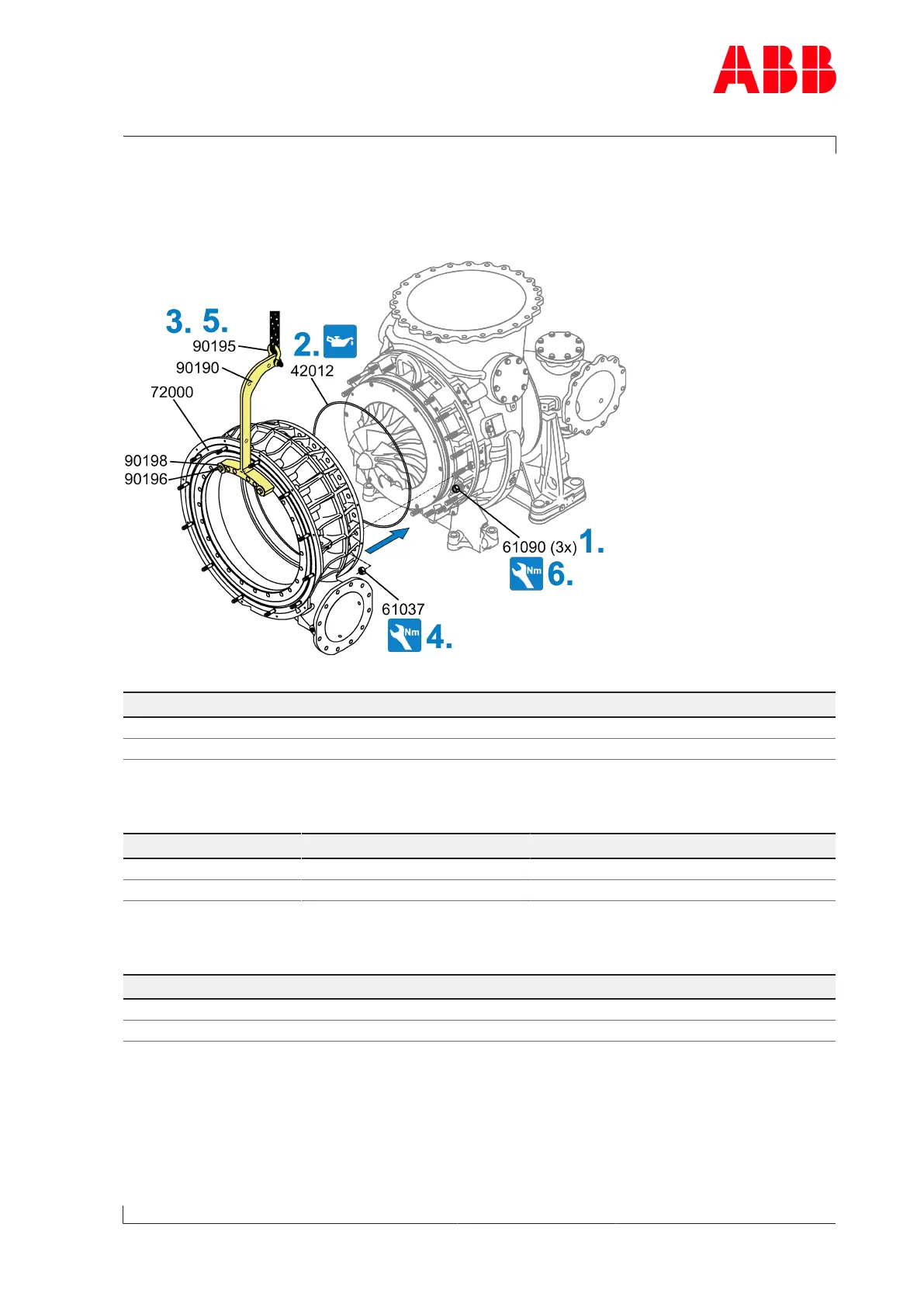

Fig.54: Installing the compressor casing
Product Size Tightening torque [Nm]
A170-M M22 400
A175-M M24 490
Table42: Tightening torque (61037)
Product Pre-tightening torque [Nm] Tightening angle [°]
A170-M 30 45° ±5°
A175-M 40 45° ±5°
Table43: Tightening torque, nuts that are difficult to access (61037)
Product Size Tightening torque [Nm]
A170-M M22 50
A175-M M24 50
Table44: Tightening torque (61090)
1. Distributed evenly around the circumference, screw the press-off nuts (61090) onto the
studs of the bearing casing and turn them by hand until they are at the end of the thread.
2. Grease the new O-ring (42012) and fit it.
