Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.15 Table of tightening torques
© Copyright 2020 ABB. All rights reserved. HZTL4033_EN Rev.F August 2020
Tightening sequence

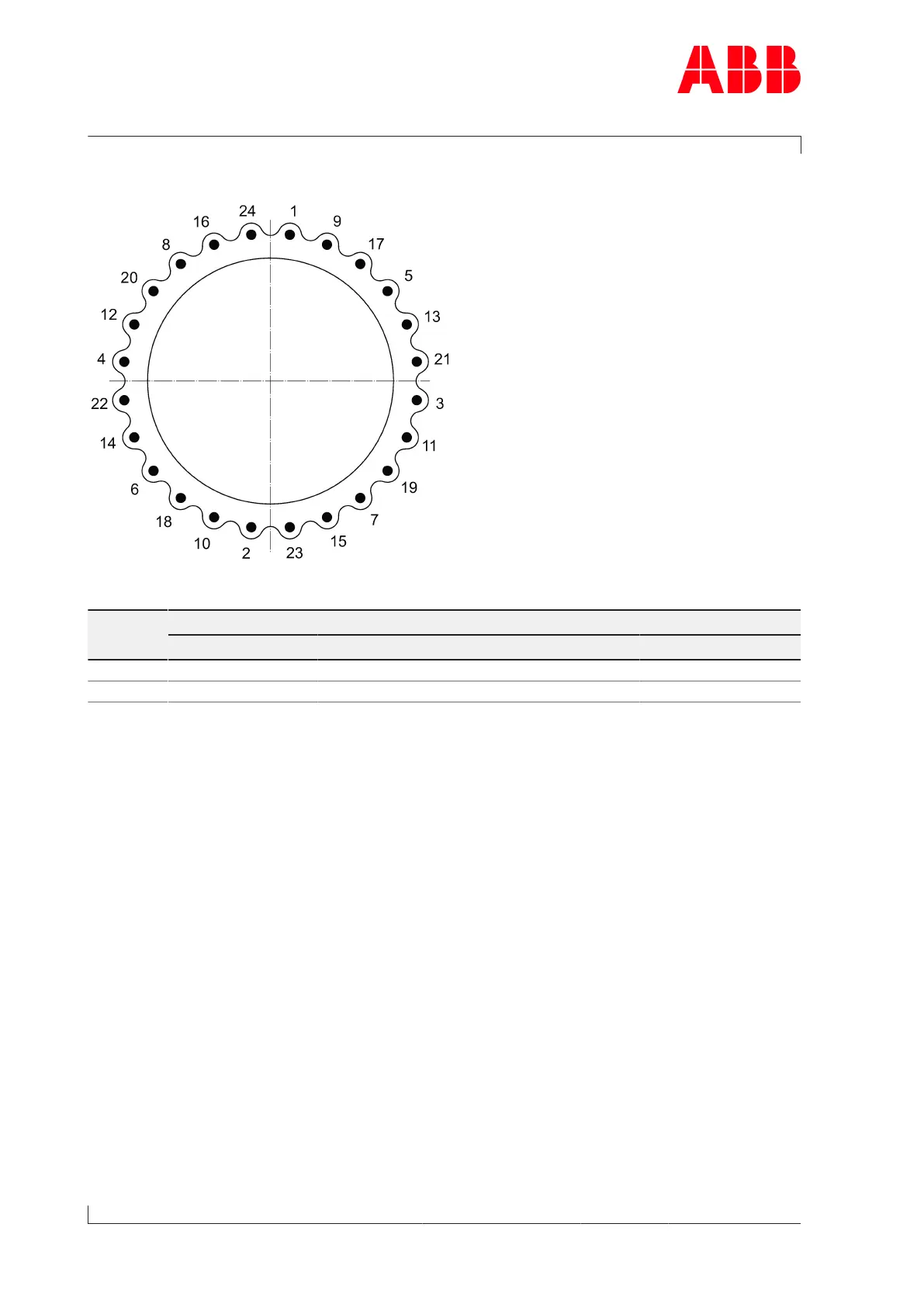

Fig.67: Flange tightening sequence
Product Tightening torque (61009) [Nm]
Step 1 Step 2 Step 3 Step 4
A170-M hand-tight 80 170 280
A175-M hand-tight 100 240 380
Table53: Tightening torques 61009
Page 96 / 114
