ABB HT597528 - Fig. 29: Removing the Air Suction Branch

Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.3 Removing the air inlets
© Copyright 2020 ABB. All rights reserved. HZTL4033_EN Rev.F August 2020
8.3.2 Removing the air suction branch
u Disconnect all air lines according to the instructions of the enginebuilder.
u Dismantle insulation as far as necessary.

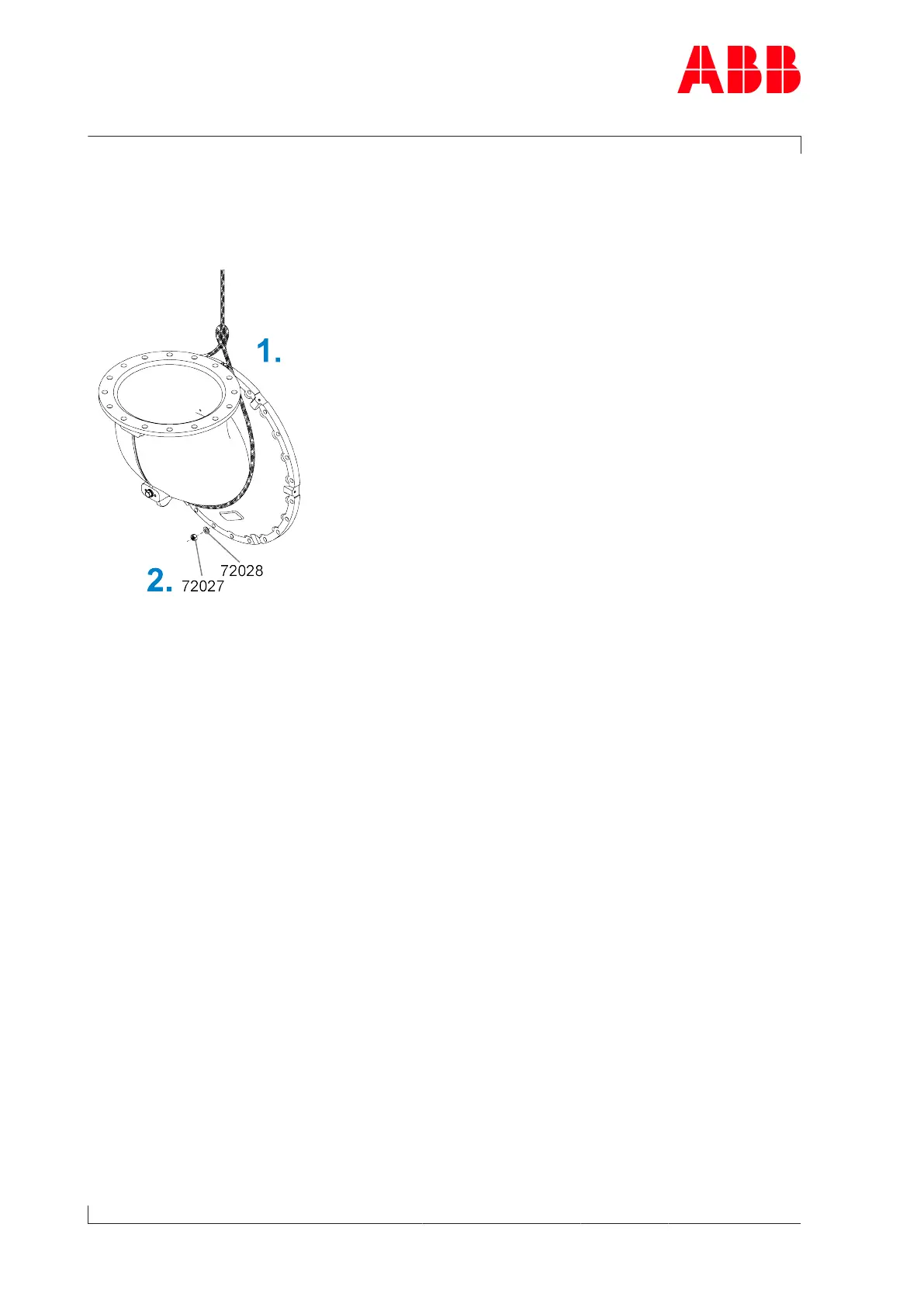

Fig.29: Removing the air suction branch
1. Loop lifting gear around air suction branch.
2. Loosen and remove the nuts (72027) with washers (72028).
u Remove and put down the air suction branch.
