Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.5 Removing the compressor casing
© Copyright 2020 ABB. All rights reserved. HZTL4033_EN Rev.F August 2020

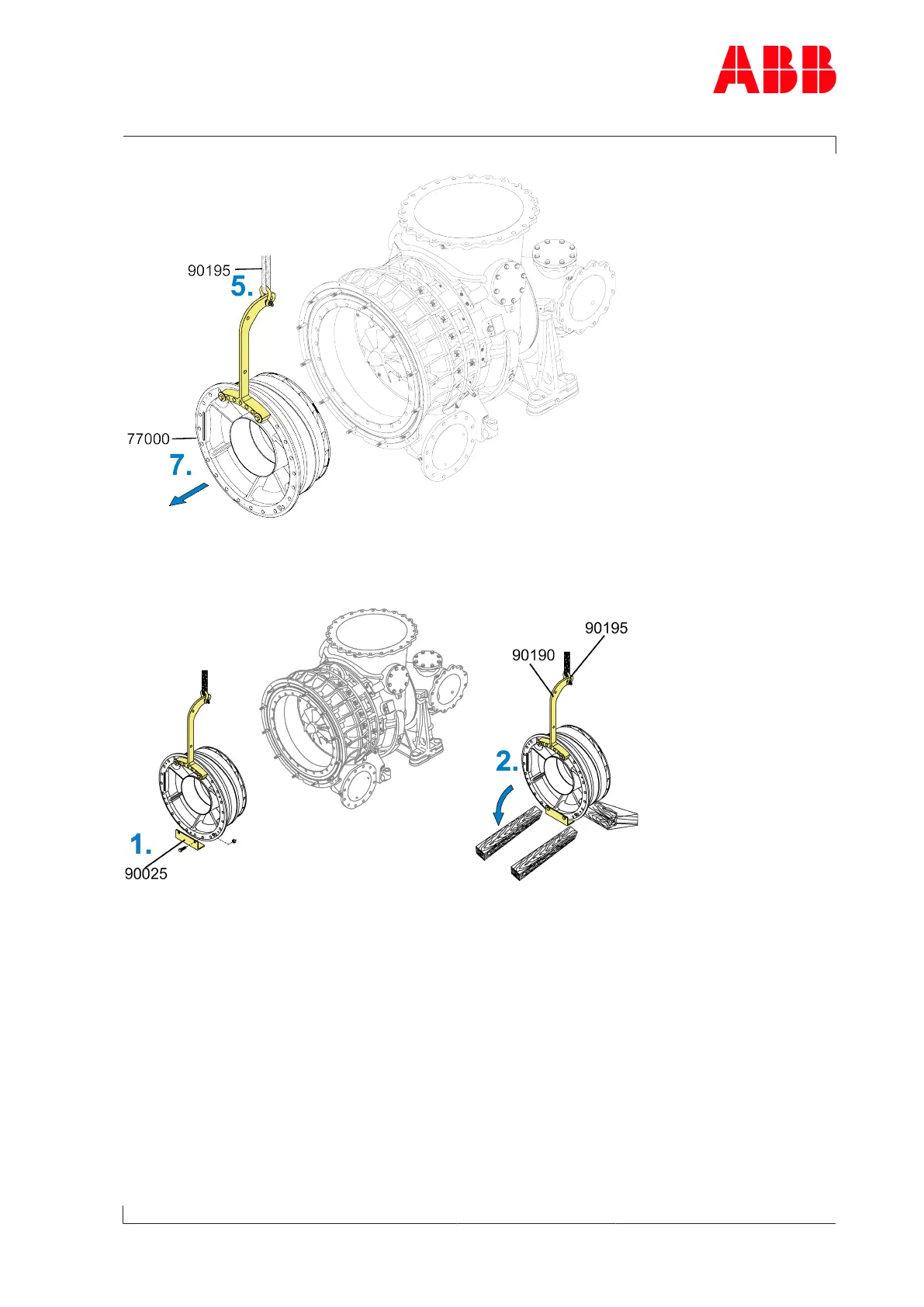

7. Pull out wall insert(77000).
Transporting and turning wall insert
Fig.32: Transporting and turning wall insert
1. Fit support angle (90025) with bolts and nuts.
2. Carefully turn wall insert over support angle (90025) and place on supports.
u Place wall insert such that lifting device (90190/90195) can be removed.
Page 63 / 114
