ABB HT607261 - Fig. 56: Installing the Cartridge Group 2; Fig. 57: Installing the Cartridge Group 3; Table 40: Tightening Torque (61059; 42128)

Operation Manual / A170-M.. - A175-M..
9 Disassembly and assembly / 9.9 Installing the cartridge group
© Copyright 2021 ABB. All rights reserved. HZTL4033_EN Rev.H July 2021

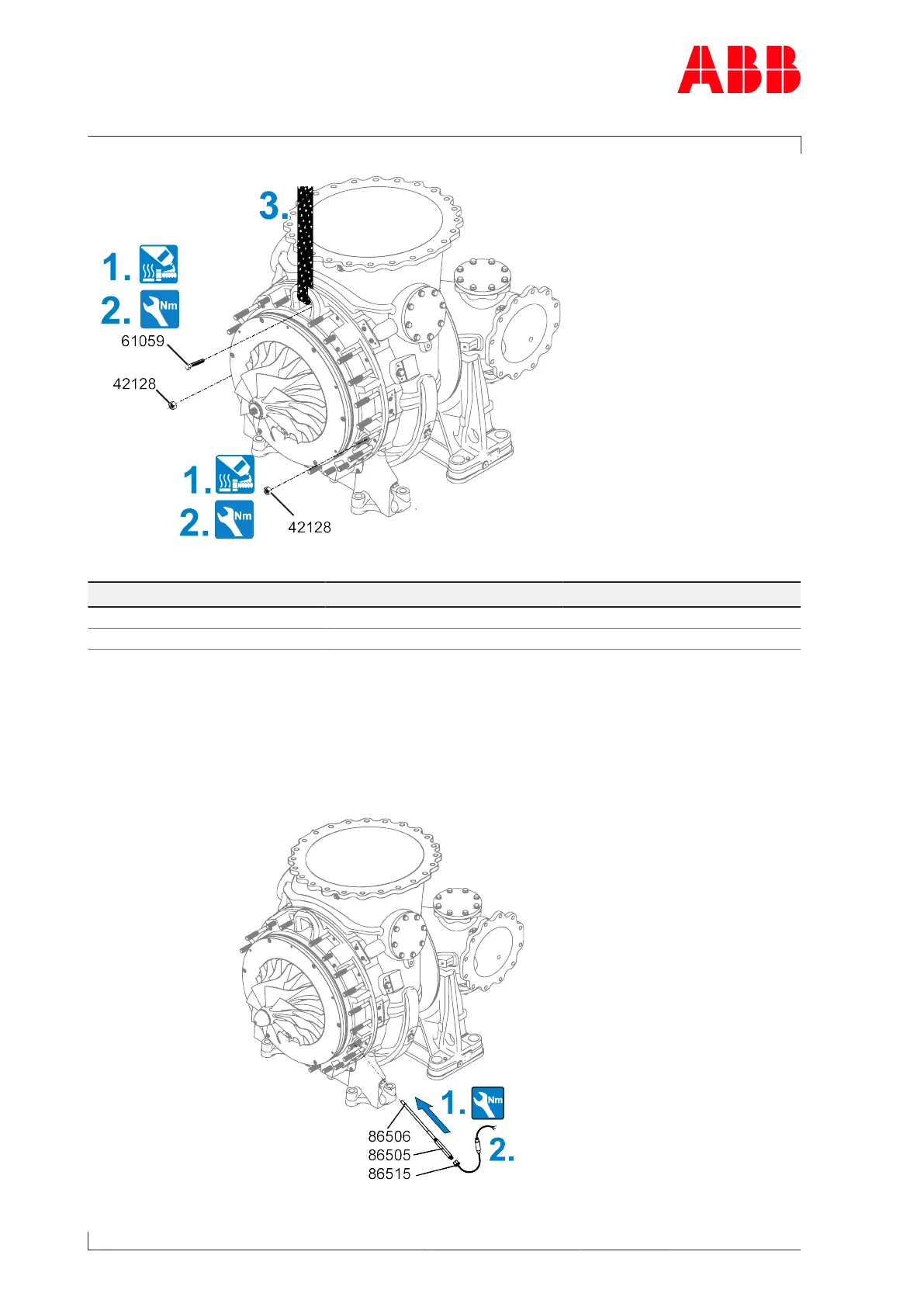

Fig.56: Installing the cartridge group 2
Product Size Tightening torque [Nm]
A170-M M22 400
A175-M M24 490
Table40: Tightening torque (61059 / 42128)
1. Coat thread of screw (61059) and two bolts for the nuts (42128) with high-temperature
grease.
2. Secure cartridge group with screw (61059) and nuts (42128).
3. Remove the lifting gear.
Fig.57: Installing the cartridge group 3
Page 100 / 147
