Removing the compressor casing

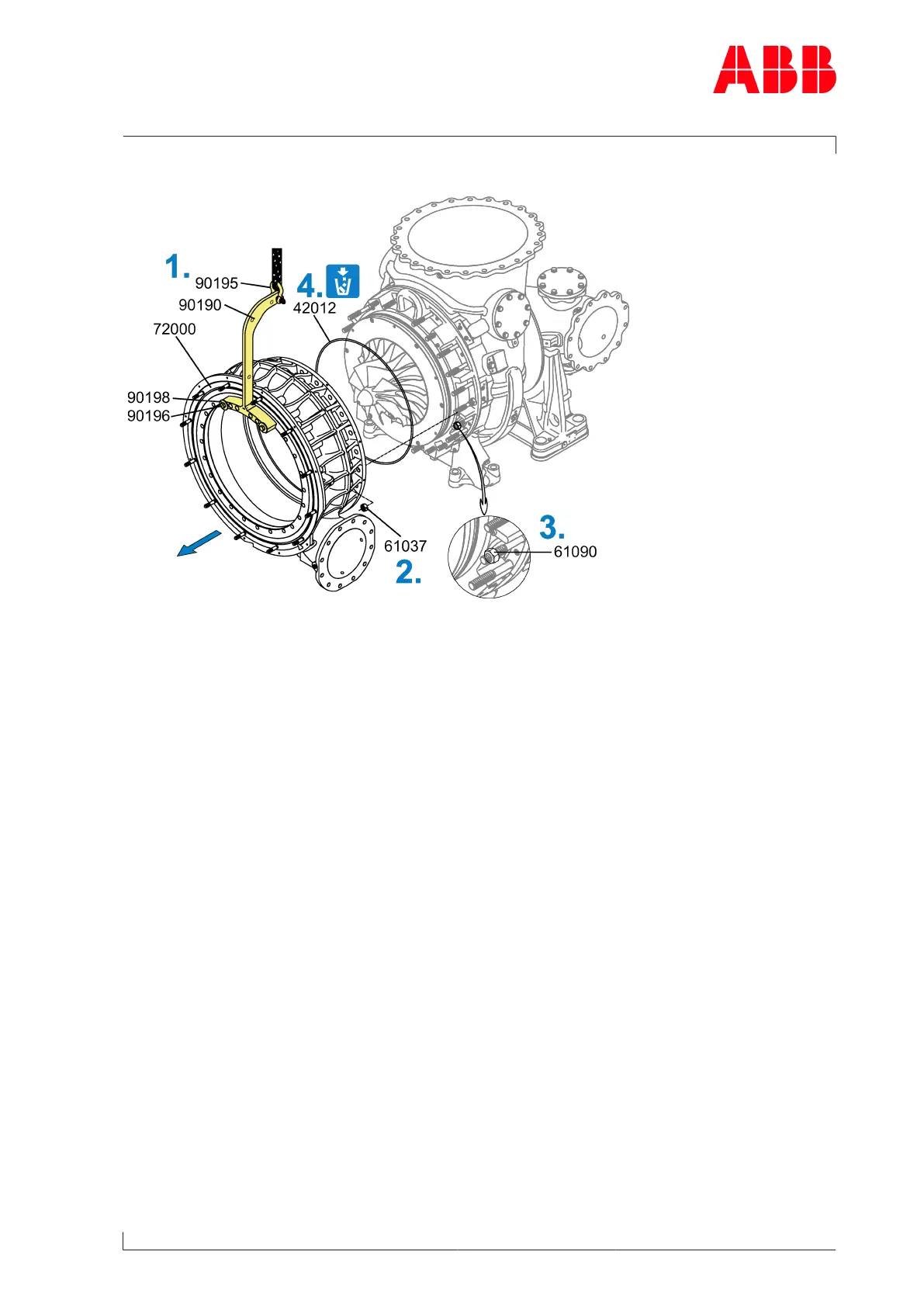

Fig.40: Removing the compressor casing
1. Using screws (90196) and washers (90198), fasten lifting device (90190 / 90195) to com-
pressor casing (72000) and secure to crane.
2. Loosen and remove nuts (61037).
3. Use press-off nuts (61090) to fully press off and remove compressor casing (72000).
4. Remove and dispose of the O-ring (42012).
