Operation Manual / A170-M.. - A175-M..
9 Disassembly and assembly / 9.14 Removing and installing turbine-
end nozzle ring
© Copyright 2021 ABB. All rights reserved. HZTL4033_EN Rev.H July 2021
Installing the nozzle ring

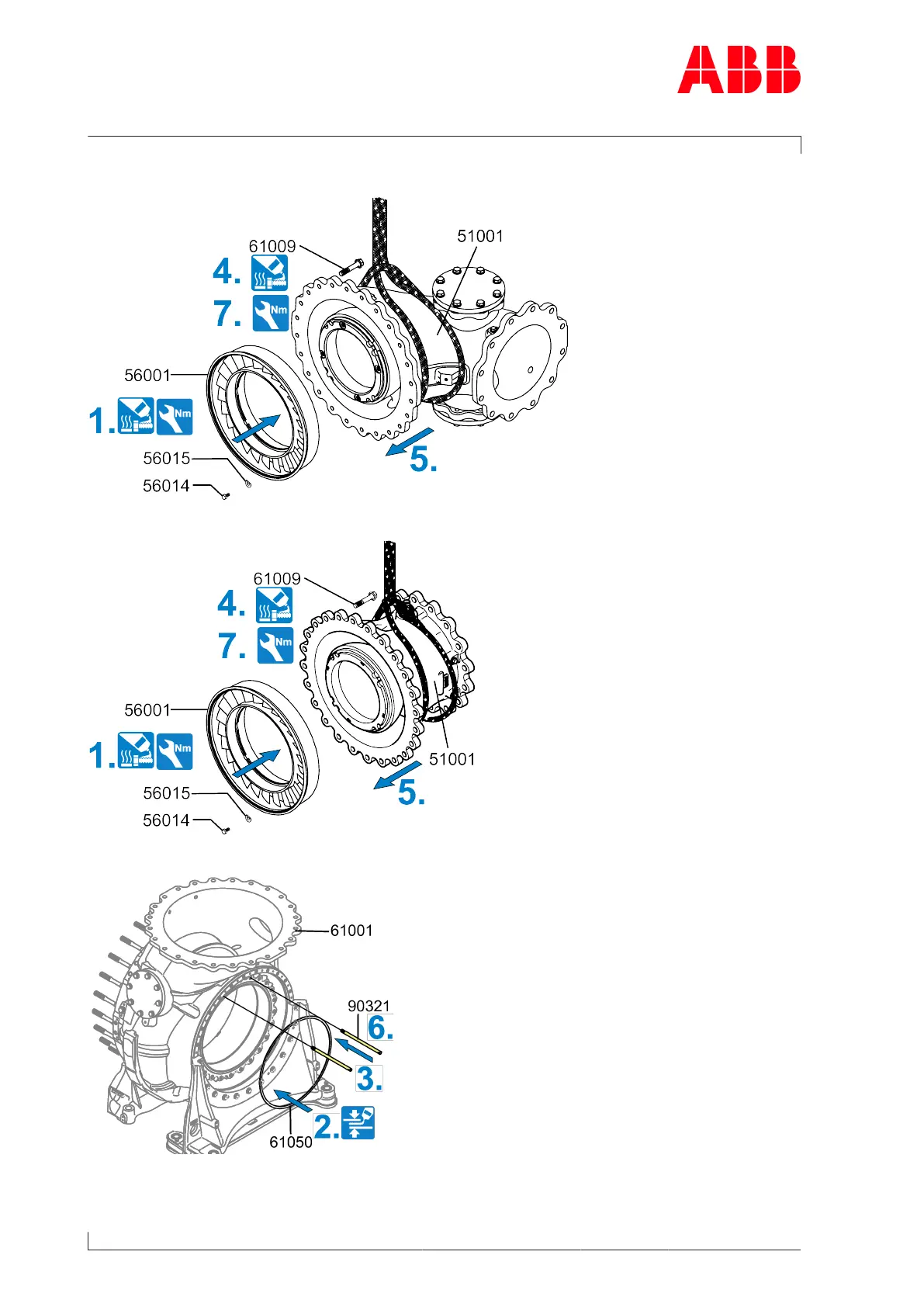

Fig.69: Installing the nozzle ring at the turbine end (radial gas inlet casing)
Fig.70: Installing the nozzle ring at the turbine end (axial gas inlet casing)
Page 114 / 147
