ABB HT607261 - Table 63: Spare Parts - Rotor and Bearing Parts

Operation Manual / A170-M.. - A175-M..
13 Spare parts / 13.2 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved. HZTL4033_EN Rev.H July 2021

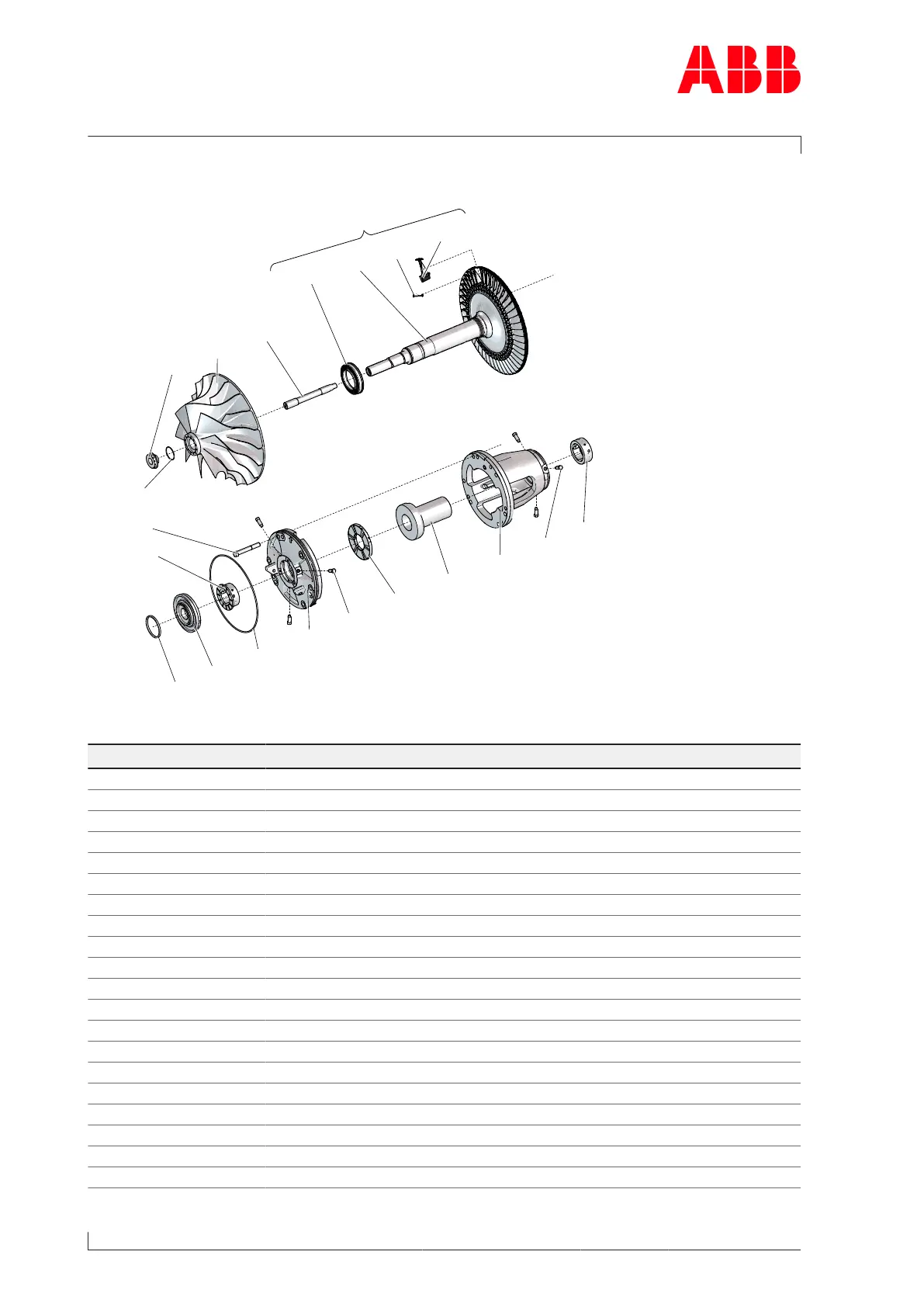

Rotor and bearing parts
32003*
32102*
32107
32188*
32001*
32105*
32106*
21000
42057
21005*
29000
32101*
21001
32118*
32187*
42302*
21010
25008
25000
25011*
25009
* = Available within the spare part set
only without spinner nose cone
Part no. Designation
21000 Turbine
21001 Turbine unbladed
21005* Locking plate
21010 Labyrinth sleeve
25000 Compressor wheel
25008 Threaded stud
25009 Ring nut
25011* O-Ring
29000 Turbine blade
32001* Thrust bearing
32003* O-ring
32101* Radial bearing compressor end
32102* Radial bearing turbine end
32105* Floating disc
32106* Axial bearing
32107 Bearing bush
32118* Auxiliary bearing
32187* Hexagon-head screw
42057 Hexagon-head screw
42302* Piston ring
Table63: Spare parts - Rotor and bearing parts
Page 134 / 147
