ABB HT608784 - Fig. 69: Installing the Nozzle Ring at the Turbine End (Radial Gas Inlet Casing); Fig. 70: Installing the Nozzle Ring at the Turbine End (Axial Gas Inlet Casing)

Operation Manual / A170-M.. - A175-M..
9 Disassembly and assembly / 9.14 Removing and installing turbine-
end nozzle ring
© Copyright 2021 ABB. All rights reserved. HZTL4033_EN Rev.I November 2021
Installing the nozzle ring

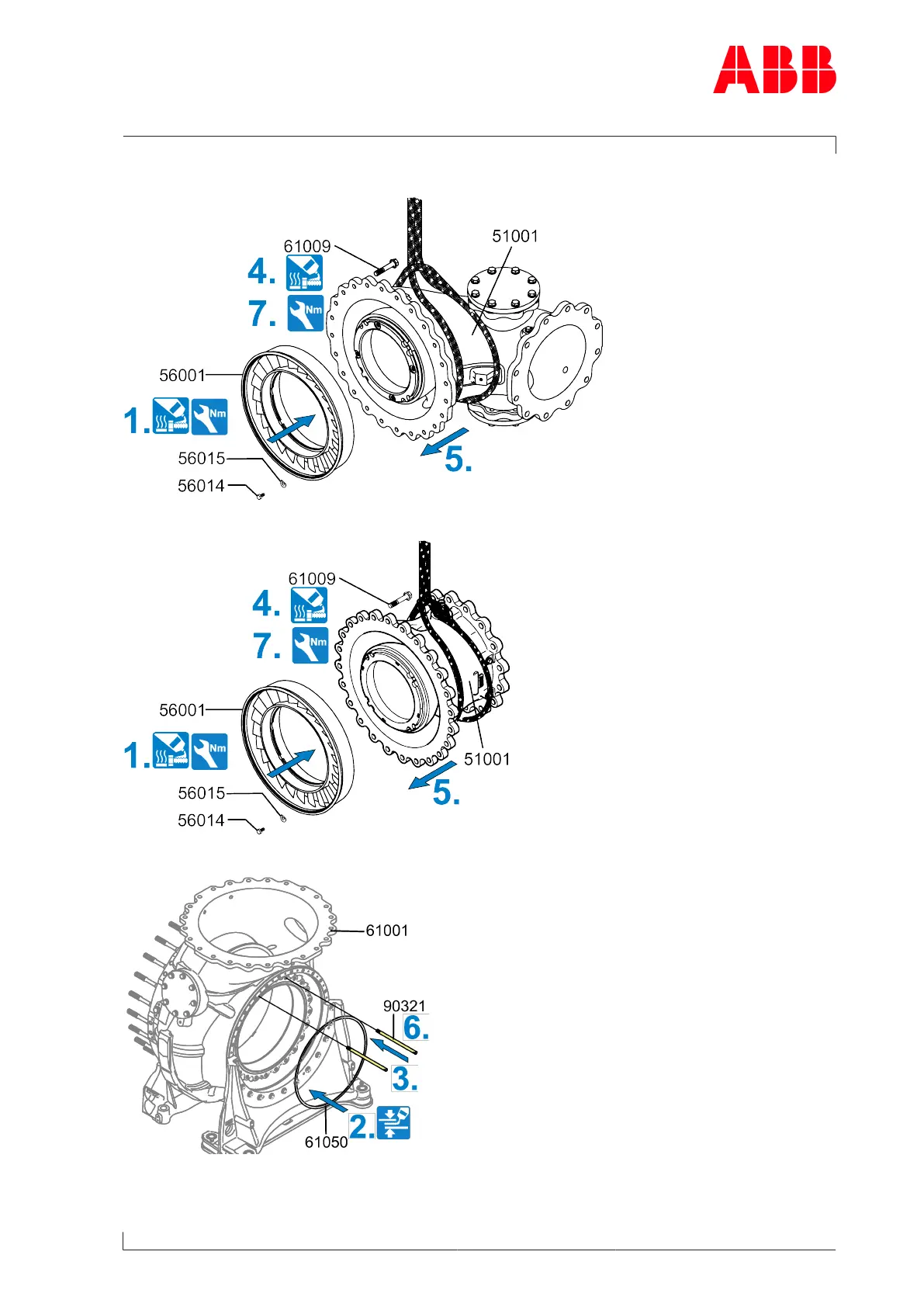

Fig.69: Installing the nozzle ring at the turbine end (radial gas inlet casing)
Fig.70: Installing the nozzle ring at the turbine end (axial gas inlet casing)
Page 113 / 146
