ABB HT608784 - Fig. 54: Installing Turbine Diffuser 2; Table 39: Tightening Torque (61069)

Operation Manual / A170-M.. - A175-M..
9 Disassembly and assembly / 9.8 Installing the nozzle ring
© Copyright 2021 ABB. All rights reserved. HZTL4033_EN Rev.I November 2021

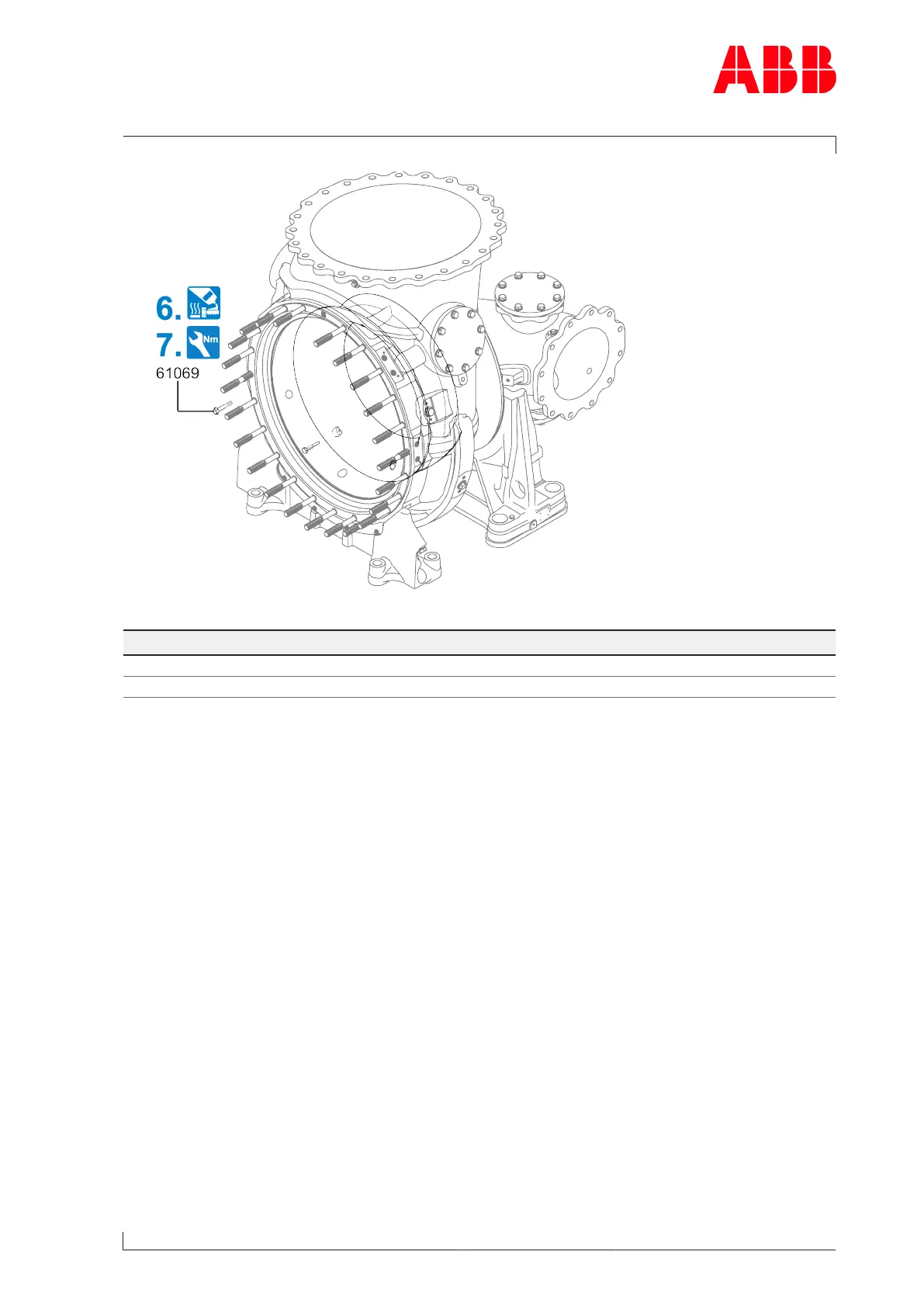

Fig.54: Installing turbine diffuser 2
Product Size Tightening torque [Nm]
A170-M M14 130
A175-M M16 200
Table39: Tightening torque (61069)
6. Coat threads of screws (61069) with high-temperature grease.
7. Fit and tighten screws (61069).
