3 Removal and installation
3.1 Turbocharger weight
Lifting gear with a sufficient load limit must be used for removing, installing and transport-
ing the turbocharger. The weight specified below applies to the heaviest variant possible.
Depending on the specification, the weight specified on the rating plate may be lower than
the standard value specified here.

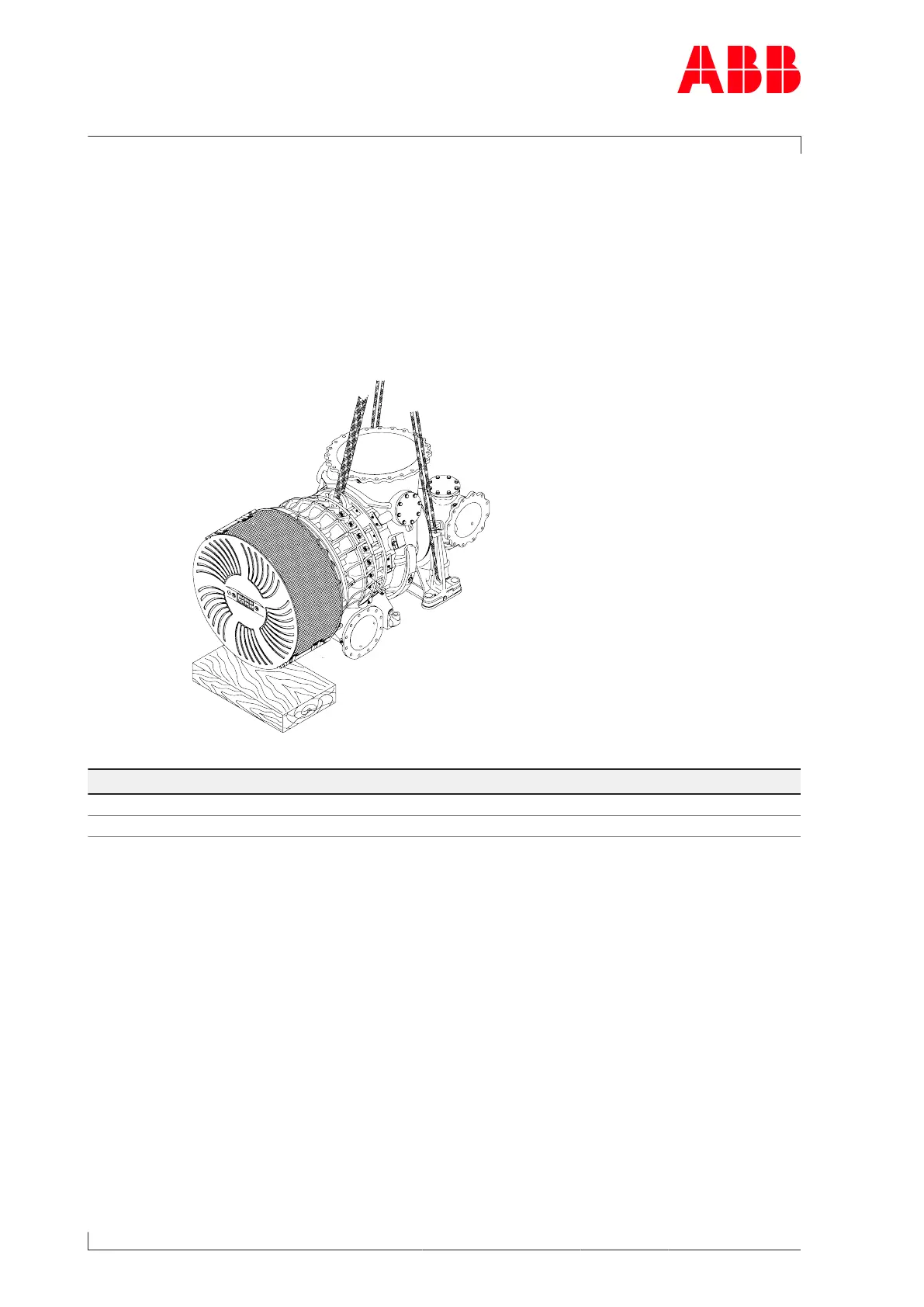

Fig.11: Turbocharger suspension points
Product Weight of complete turbocharger unit [kg]
A170-M 3100
A175-M 4600
Table4: Weight of complete turbocharger unit
