Removing the diffuser

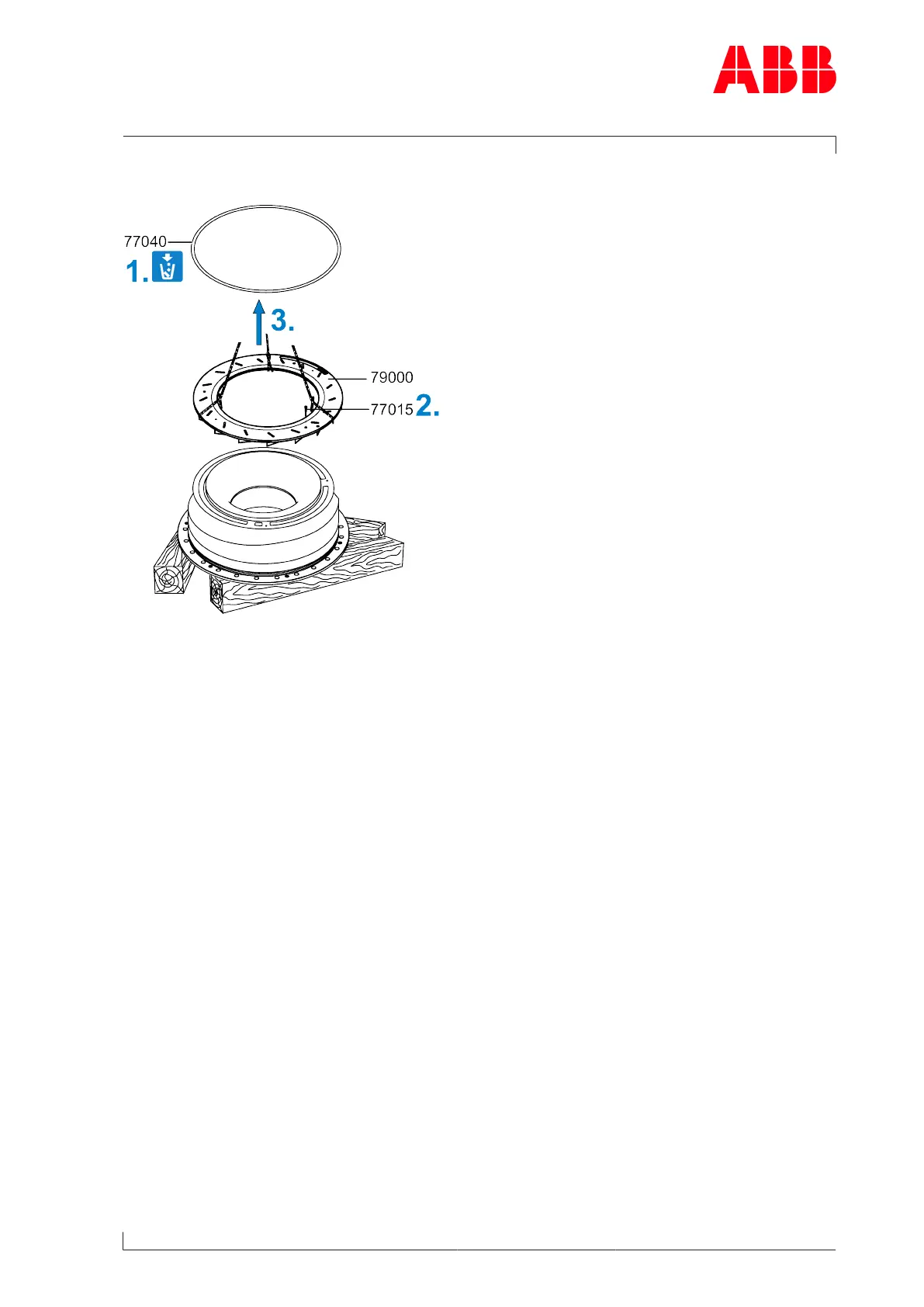

Fig.39: Removing the diffuser
1. Remove and dispose of the O-ring (77040).
2. Loosen and remove screws(77015).
3. Loop lifting gear around diffuser (79000) and remove diffuser.
