Operation Manual / A150-M56/66/57/67 - A155-M..
10 Dismantling and fitting with removed air inlet and gas outlet /
10.12 Installing the cartridge group
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021

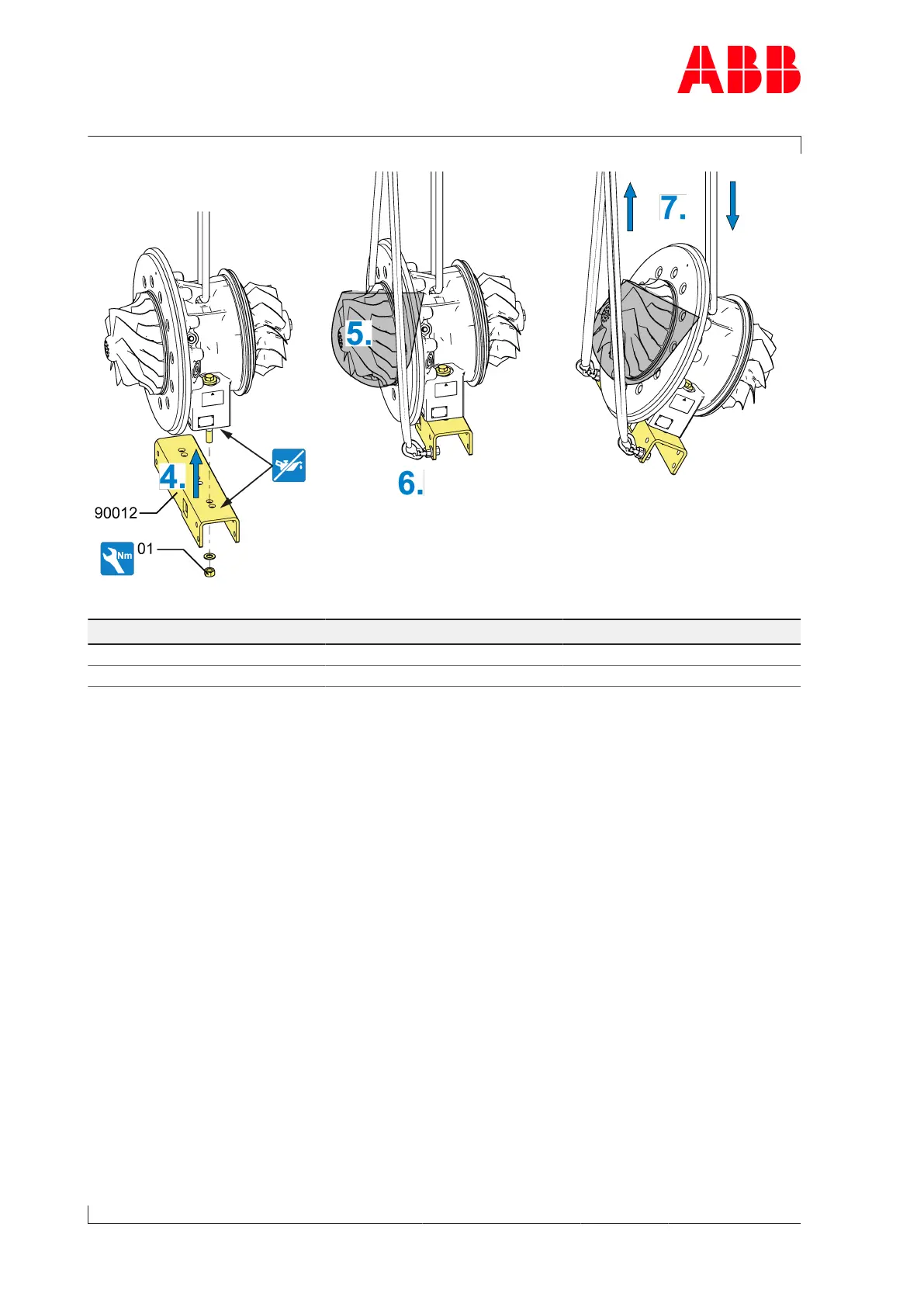

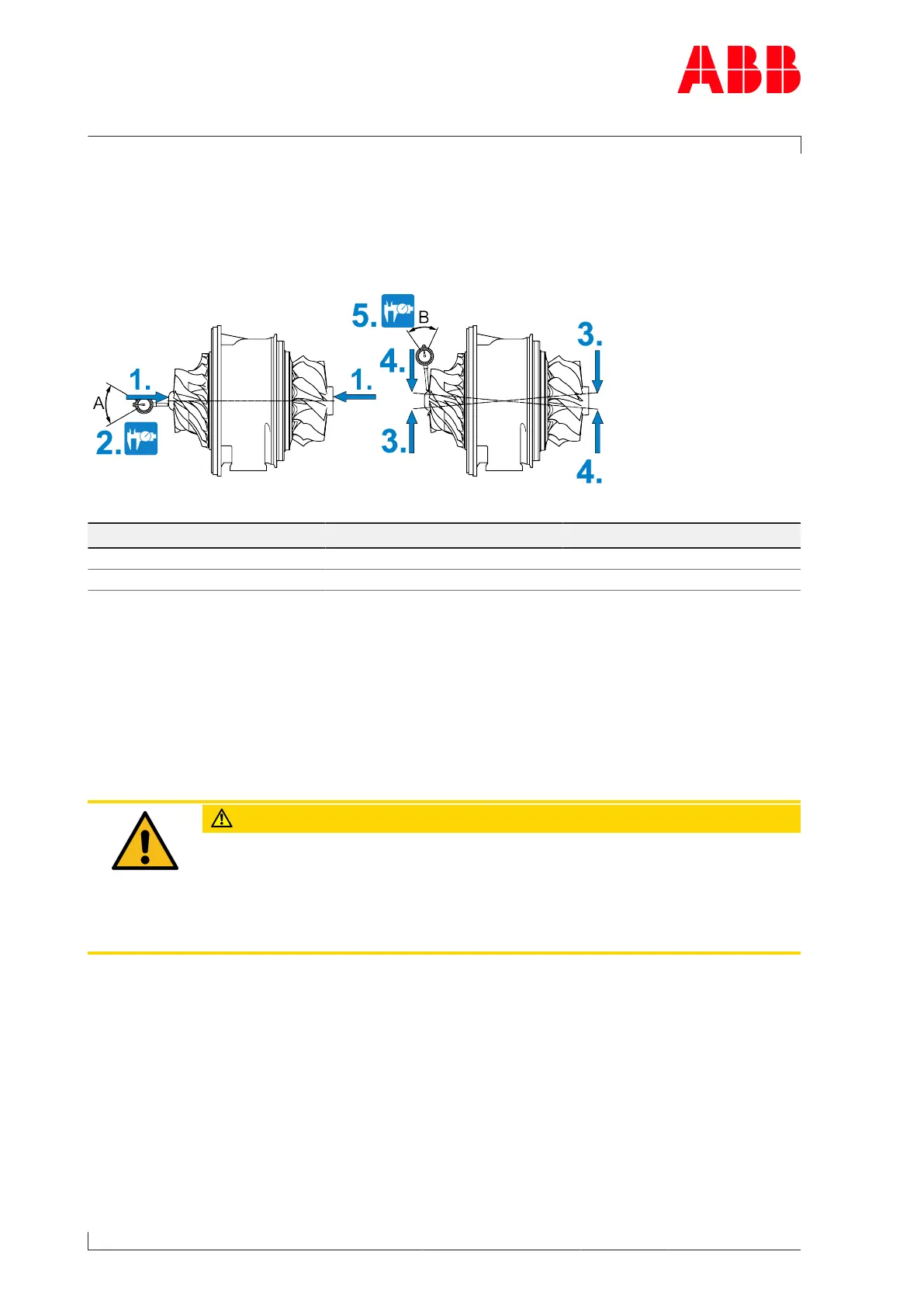

Fig.68: Turning the cartridge group
Product Position Tightening torque [Nm]
A150 01 150
A155 01 150
Table47: Tightening torque (90012-01)
4. Re-fit the cross-piece of the service support(90012). Observe the tightening torque.
5. Place the protective cover over the compressor wheel.
6. Secure the second set of lifting gear to the cross-piece with a swivel lifting eye. The
length of the lifting gear must be selected in such a way that the compressor wheel is
not touched.
7. Turn the cartridge group into the vertical position of the rotor axis.
