Operation Manual / A150-M56/66/57/67 - A155-M..
18 Spare parts / 18.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4032_EN
Rev.Q
January 2021

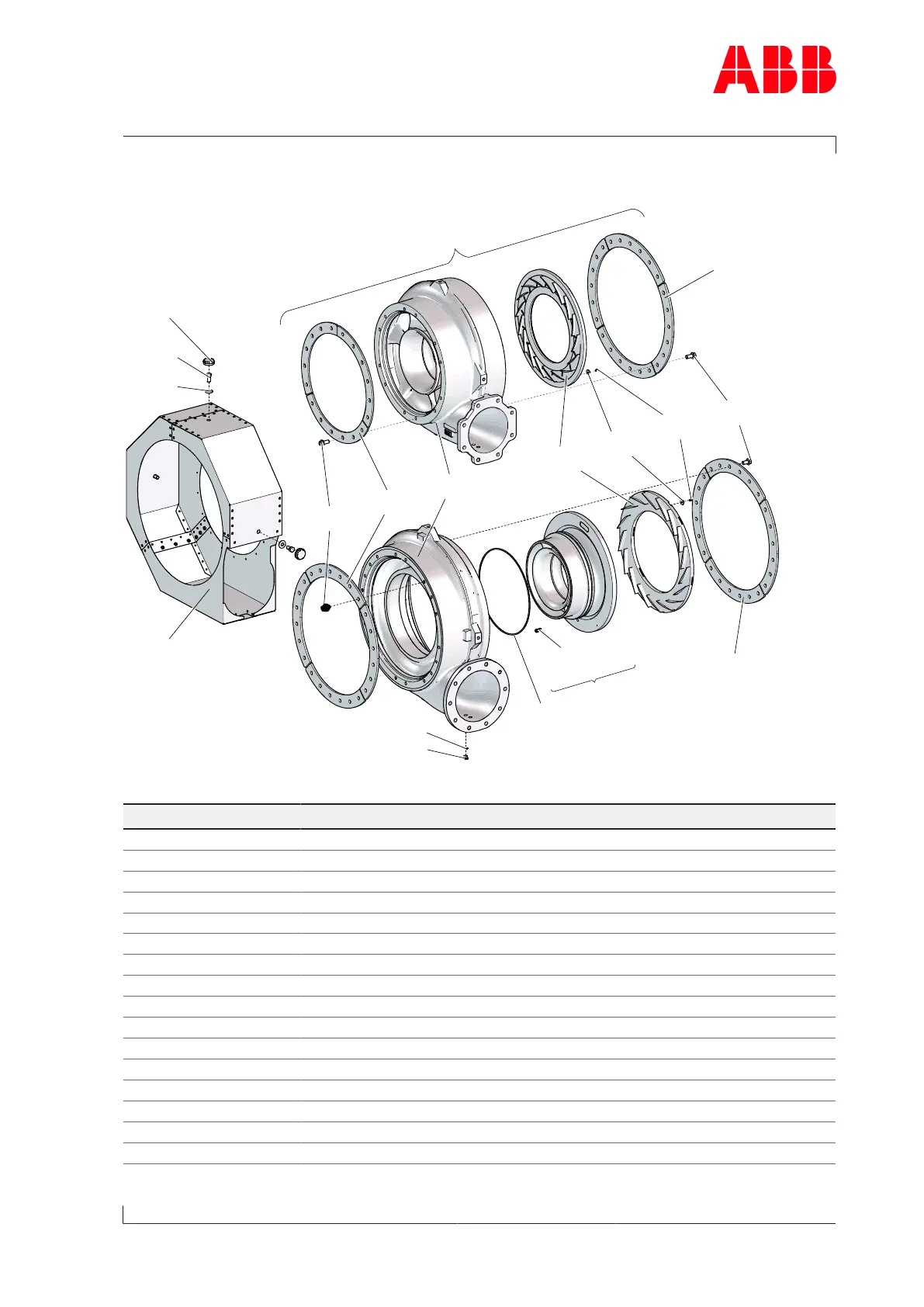

Compressor casing
77005*
72016
72011
79041*
79000
79040
72012
72060
72063
72062
72061
72000
77000
77006
72012
72051
72005(p)
72006(p)
* = Av
ailable within the spare part set
(p) = pre-assembled
HZTL443313 Mod. C
A150-M58/68 only
Part no.
Designation
72000
Compressor casing
72005(p)
Screw plug
72006(p)
Gasket
72011
Hexagon-head screw
72012
Fastening strip
72016
Fastening strip
72060
Insulation
72061
Insulation sleeve
72062
Hexagon-head screw
72063
Tension washer
77000
Wall insert
77005*
O-ring
77006
Stud
79000
Diffuser
79040
Fixing washer
79041*
Counter-sunk screw
Table86: Spare parts - Compressor casing
Page 183 / 194
