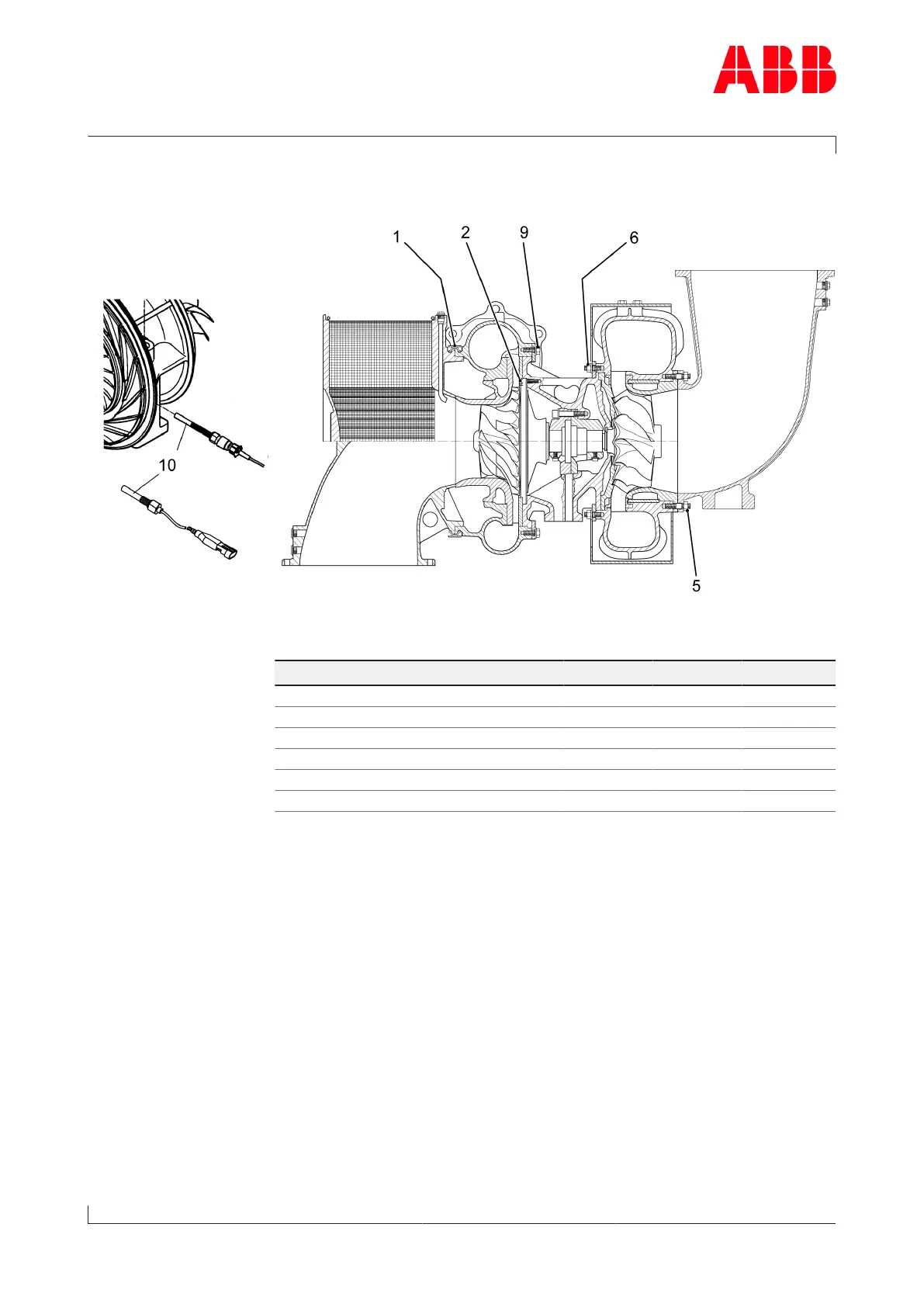

8.6 Table of tightening torques
The following tightening torques must be observed for the designated
screw fittings:
Tightening torques [Nm]
Position Part number TPS48 TPS52 TPS57 TPS61
1 72020 60 60 60 60
2 42008 10 10 20 40
5 52433 20 40 65 65
6 51007 25 45 75 75
9 72011 35 70 105 170
10 86505 15 15 15 15
