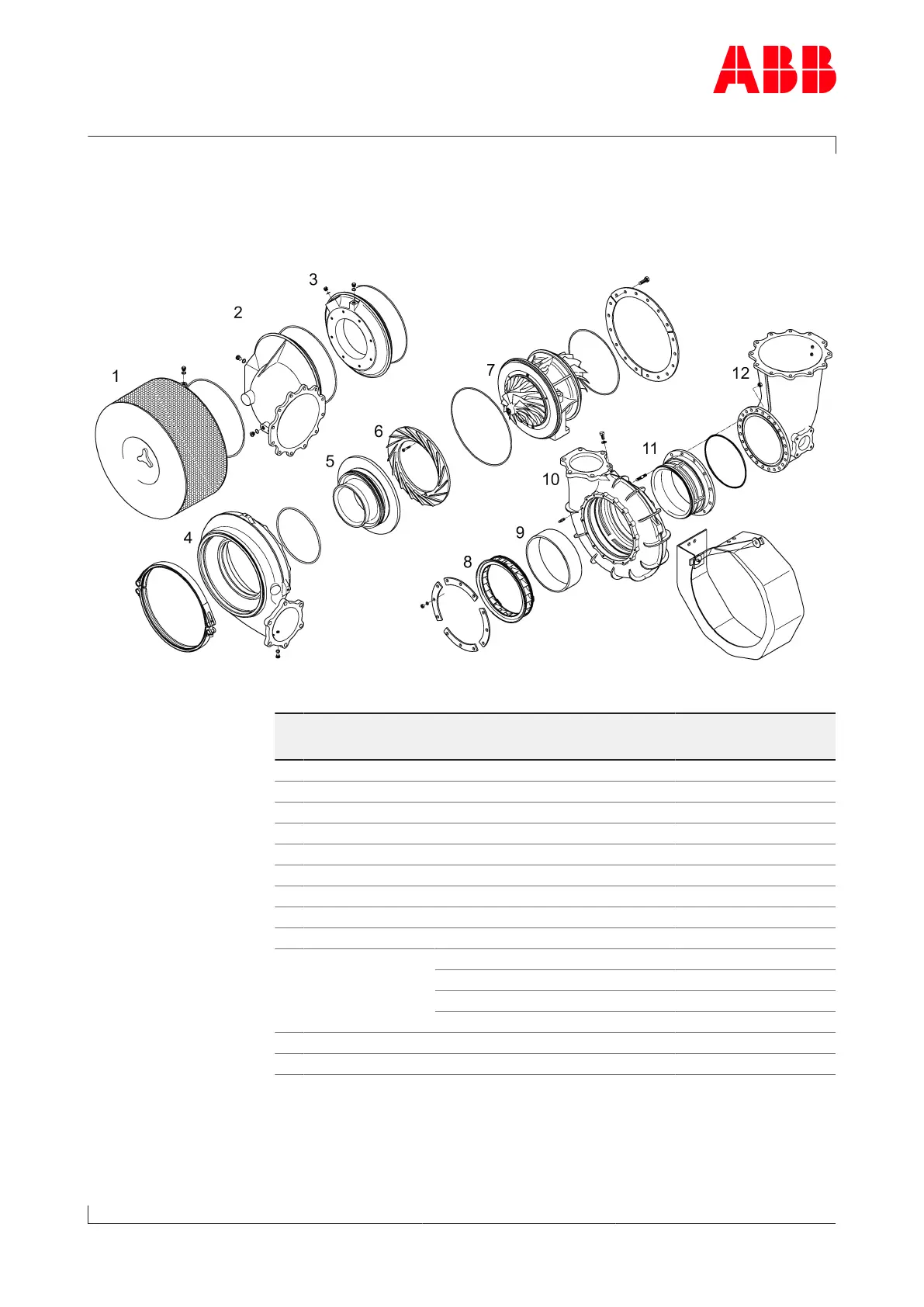

8.2 Module weights
The specified weights of individual parts or assemblies are guides roun-
ded off to the next highest value.
Description TPS48
[kg]
TPS52
[kg]
TPS57
[kg]
TPS61
[kg]
1Filter silencer 19 30 40 65
2Radial air suction branch 6 8 11 21
3Axial air suction branch 4 4 6 9
4Compressor casing 24 35 55 90
5Wall insert 7 10 13 30
6Diffuser 2 3 6 10
7Cartridge group 35 50 85 140
8Nozzle ring 1 2 3 6
9Burst ring 2 3 5 12
10Turbine casing
with external
burst protection
1 inlet 35 50 80 130
2 inlets 35 50 86 150
3 inlets - 53 95 170
4 inlets - - 95 170
11Gas outlet flange 4 8 16 30
12Gas outlet bend 18 25 40 60
